Removal [12/2022 - ]: Procedure

  1. PRECAUTION
  2. REMOVE REAR LIGHT ASSEMBLY

    Refer to REMOVAL [12/2022 - ]

  3. REMOVE REAR TELEVISION CAMERA ASSEMBLY

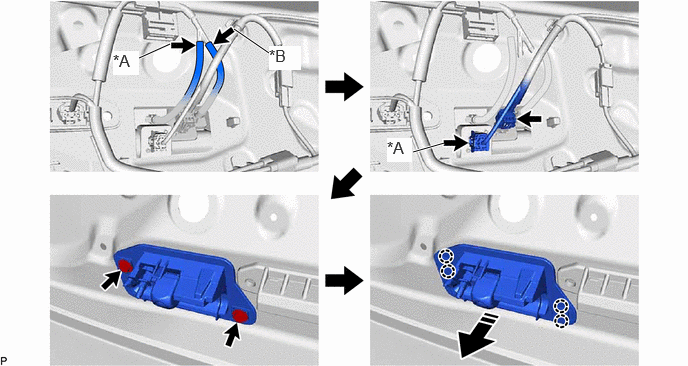

    1. GTY1140879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Digital Inner Mirror *B w/ Rear Camera Washer
      Remove in this Direction - -
    2. When reusing the rear television camera assembly:
      GTY1142410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  4. REMOVE INNER MIRROR CAMERA ASSEMBLY (w/ Digital Inner Mirror)
    Refer to PROCEDURE - Step 3
  5. REMOVE NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY (w/ Rear Camera Washer)

    Refer to PROCEDURE - Step 2

  6. REMOVE NO. 2 CAMERA CLEANER NOZZLE ASSEMBLY (w/ Digital Inner Mirror)

    Refer to PROCEDURE - Step 3
