Removal [12/2022 - ]: Procedure

  1. REMOVE BACK DOOR UPPER TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 2

  3. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure as for the LH side.
  4. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    Refer to PROCEDURE - Step 6

  5. REMOVE BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH
    1. w/o Power Back Door:

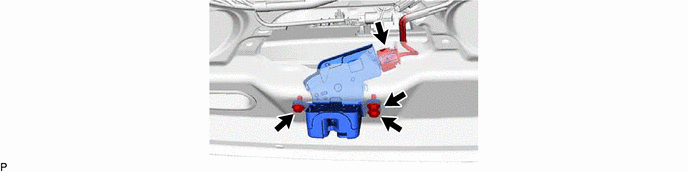

      GTY1140573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Power Back Door:

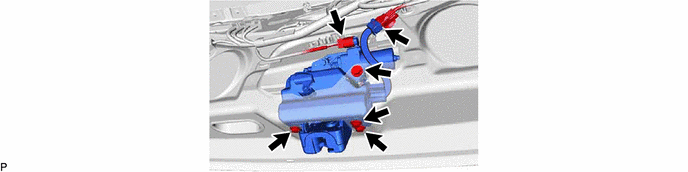

      GTY1150413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
