Removal [12/2022 - ]: Procedure

  1. REMOVE BACK DOOR UPPER TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 2

  3. REMOVE BACK DOOR SIDE GARNISH RH
    1. Use the same procedure as for the LH side.
  4. REMOVE GLIDE DOOR INSIDE HANDLE BASE ASSEMBLY (w/ Power Back Door)
    Refer to PROCEDURE - Step 4
  5. REMOVE DOOR PULL HANDLE
    Refer to PROCEDURE - Step 5
  6. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    Refer to PROCEDURE - Step 6

  7. REMOVE BACK DOOR OUTSIDE GARNISH LOWER MOULDING LH

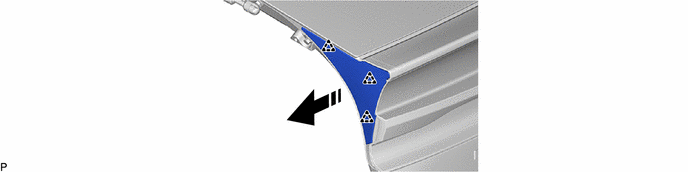

    1. GTY1148085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  8. REMOVE BACK DOOR OUTSIDE GARNISH LOWER MOULDING RH
    1. Use the same procedure as for the LH side.
  9. REMOVE REAR LIGHT ASSEMBLY

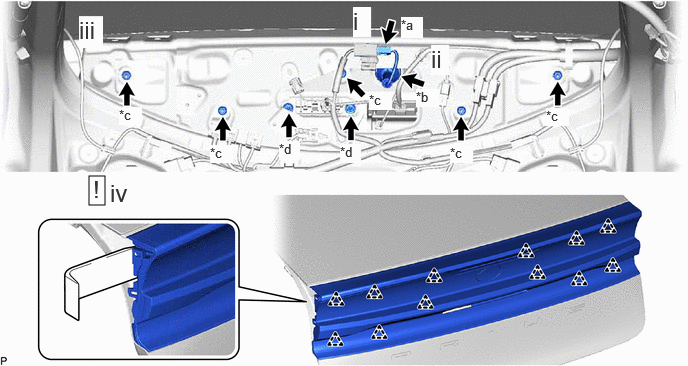

    1. GTY1152641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Connector *b Grommet
      *c Nut *d Bolt
      1. Disconnect the connector.
      2. Disconnect the grommet.
      3. Remove the 2 bolts and 5 nuts.
      4. Using a moulding remover, disengage the 12 clips to remove the rear light assembly.
