Removal [02/2024 - ]: Procedure
- PRECAUTION
Refer to PRECAUTION [02/2024 - ] - REMOVE SERVICE PLUG GRIP
Refer to REMOVAL [02/2024 - ]
- REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
Refer to REMOVAL [02/2024 - ]
- REMOVE UPPER INVERTER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 5 - REMOVE INVERTER TERMINAL COVER
Refer to PROCEDURE - Step 6 - CHECK TERMINAL VOLTAGE
Refer to PROCEDURE - Step 7 - INSTALL INVERTER TERMINAL COVER
Refer to PROCEDURE - Step 15 - INSTALL UPPER INVERTER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 16 - INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
Refer to INSTALLATION [02/2024 - ]
- REMOVE RADIATOR WITH COOLER CONDENSER ASSEMBLY
Refer to REMOVAL [02/2024 - ]
- REMOVE NO. 2 AIR HOSE
Refer to PROCEDURE - Step 5 - REMOVE NO. 2 RADIATOR HOSE SUB-ASSEMBLY
Refer to PROCEDURE - Step 1
- DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE

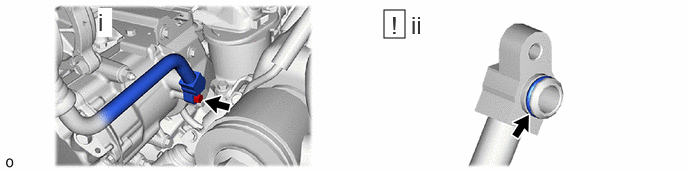

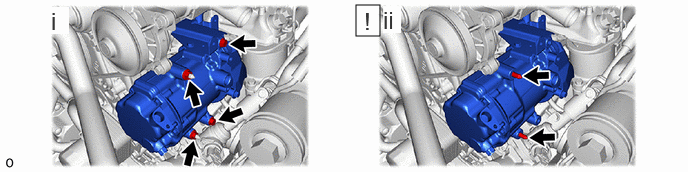

- Remove the bolt and disconnect the No. 1 cooler refrigerant discharge hose from the compressor assembly with pulley.
- Remove the O-ring from the No. 1 cooler refrigerant discharge hose.NOTE:
Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

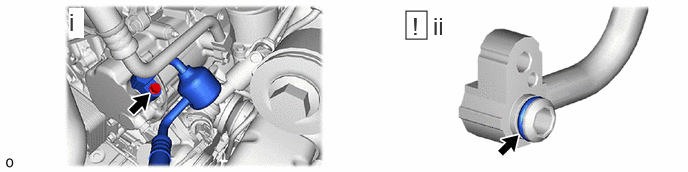

- DISCONNECT SUCTION HOSE

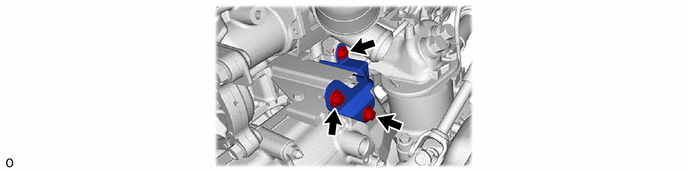

- REMOVE COOLER COMPRESSOR BRACKET
- REMOVE COMPRESSOR WITH MOTOR ASSEMBLY

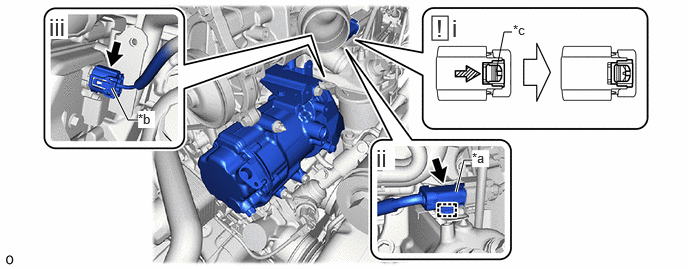

*a Connector (A) *b Connector (B) *c Green-colored Lock - - Slide - - - Slide the green-colored lock of the connector (A) as shown in the illustration to release it and disconnect the connector.WARNING:
Make sure to wear insulating gloves.
NOTE:Insulate the disconnected terminals and connector with vinyl tape.
- Detach the clamp.
- Disconnect the connector (B).
- Slide the green-colored lock of the connector (A) as shown in the illustration to release it and disconnect the connector.
- Remove the 2 bolts and 2 nuts.
- Using an E8 "TORX" socket wrench, remove the 2 stud bolts and compressor with motor assembly.
