Disassembly [02/2024 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [02/2024 - ]
  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to REMOVAL [02/2024 - ]

  3. REMOVE REAR DOOR UPPER TRIM COVER LH

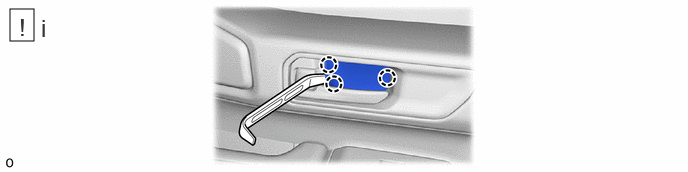

    1. GTY1227002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a moulding remover A, detach the claw to remove the rear door upper trim cover LH.
  4. REMOVE REAR DOOR ARMREST COVER SUB-ASSEMBLY LH

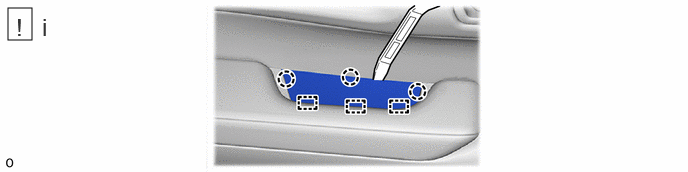

    1. GTY1220892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a moulding remover A, detach the claw and guide to remove the rear door armrest cover sub-assembly LH.
  5. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH

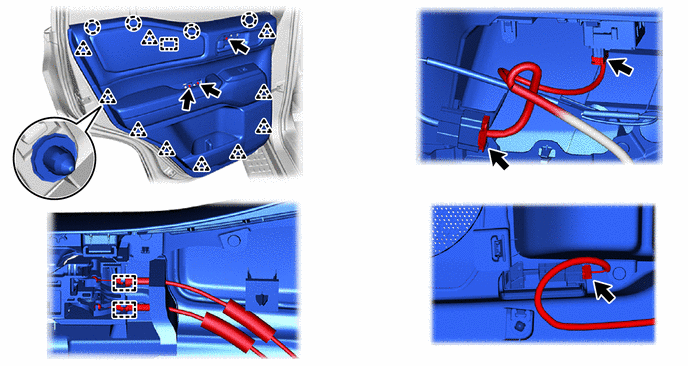

    1. GTY1224615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL LH
    Refer to PROCEDURE - Step 1

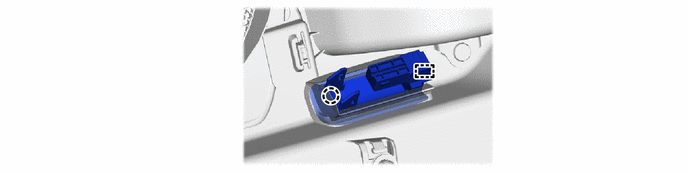

  7. REMOVE COURTESY LIGHT ASSEMBLY
    1. GTY1224824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

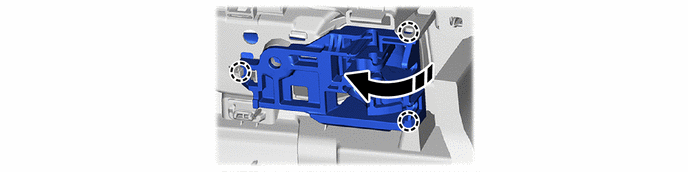

  8. REMOVE REAR DOOR INSIDE HANDLE SUB-ASSEMBLY LH
    1. GTY1223903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

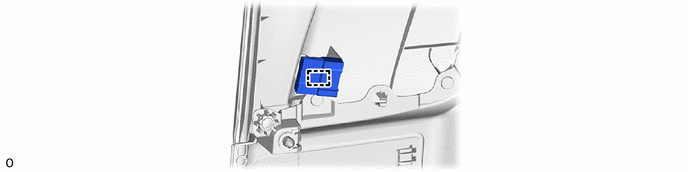

  9. REMOVE WIRING HARNESS CONNECTOR (w/o Illumination)
    1. GTY1224612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

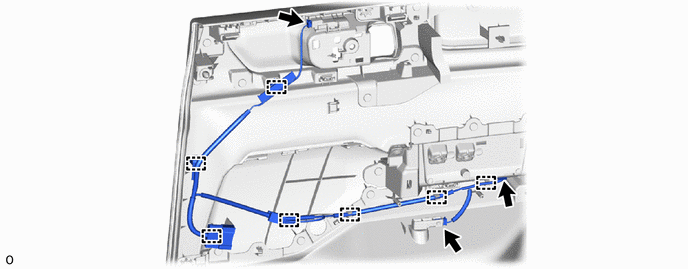

  10. REMOVE REAR DOOR WIRE LH (w/ Illumination)

    HINT:

    The illustration is an example, so the details may differ.

    1. GTY1226942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP LH

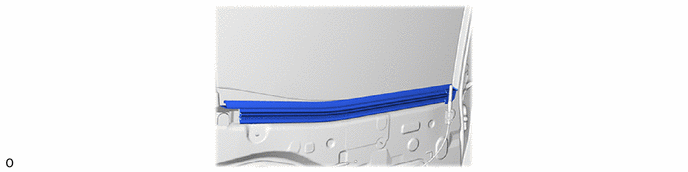

    1. GTY1217367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR DOOR NO. 1 VENT SEAL LH
    1. GTY1217366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

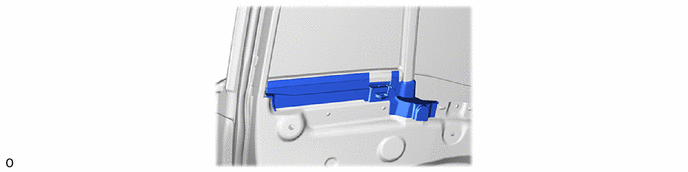

  13. REMOVE REAR DOOR REAR BELT SEAL LH
    1. GTY1217364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

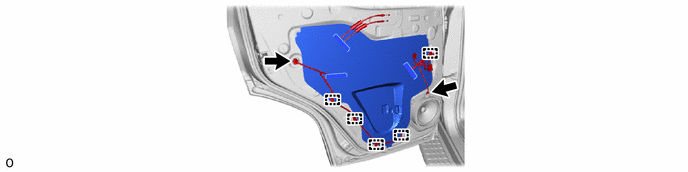

  14. REMOVE REAR DOOR SERVICE HOLE COVER LH
    HINT:
    Remove any remaining butyl tape from the rear door panel.
    1. GTY1224611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE REAR DOOR FRAME GARNISH LH
    1. GTY1217362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

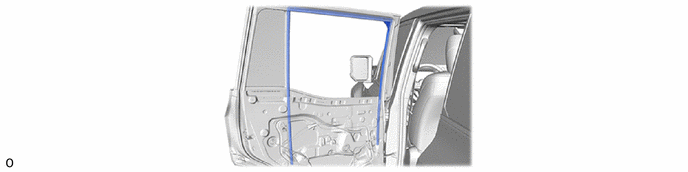

  16. REMOVE REAR DOOR GLASS RUN LH
    1. GTY1217361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

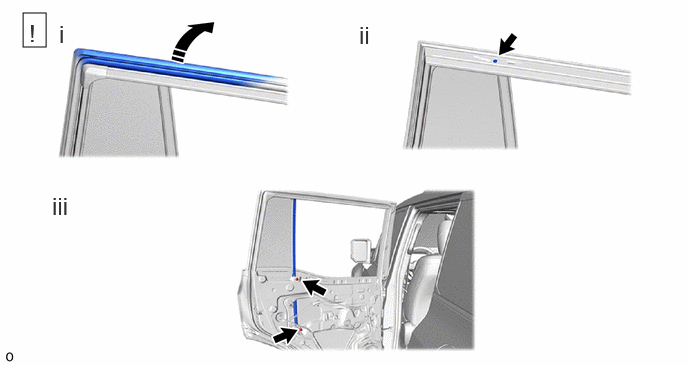

  17. REMOVE REAR DOOR REAR LOWER WINDOW FRAME SUB-ASSEMBLY LH
    1. GTY1217170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Peel back the rear door weatherstrip LH until the installation screw can be seen.
      2. Remove the screw.
      3. Remove the 2 bolts and rear door rear lower window frame sub-assembly LH.
  18. REMOVE REAR DOOR NO. 2 FRAME GARNISH LH
    1. GTY1217586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE REAR DOOR QUARTER WINDOW GLASS LH
    1. GTY1219139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  20. REMOVE REAR DOOR QUARTER WINDOW WEATHERSTRIP LH
    1. GTY1217584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

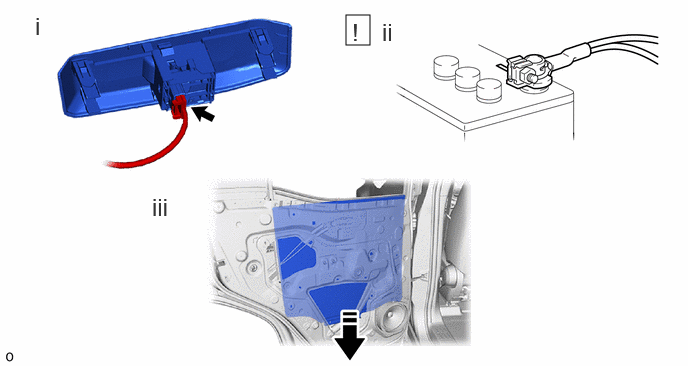

  21. REMOVE REAR DOOR GLASS SUB-ASSEMBLY LH
    1. GTY1220799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Move in this Direction - -
      1. Connect the connector.
      2. Connect the cable to the negative (-) auxiliary battery terminal and turn the ignition switch to ON.

        Refer to INSTALLATION [02/2024 - ]

      3. Move the rear door glass sub-assembly LH to the bottom position.

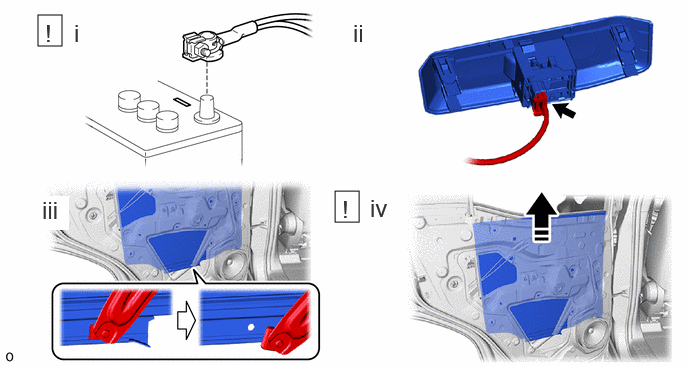

    2. GTY1220814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Turn the ignition switch off and disconnect the cable from the negative (-) auxiliary battery terminal.

        Refer to REMOVAL [02/2024 - ]

      2. Disconnect the connector.
      3. Separate the rear door glass sub-assembly LH from the rear door window regulator assembly.
      4. Remove the rear door glass sub-assembly LH as shown in the illustration.
        NOTE:

        Do not damage the rear door glass sub-assembly LH.

  22. REMOVE REAR DOOR GLASS CHANNEL SUB-ASSEMBLY LH
    1. GTY1222892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver with its tip wrapped in protective tape, remove the rear door glass channel sub-assembly LH.
  23. REMOVE REAR DOOR GLASS CHANNAL FILLER
    1. GTY1221778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE REAR DOOR WINDOW REGULATOR ASSEMBLY

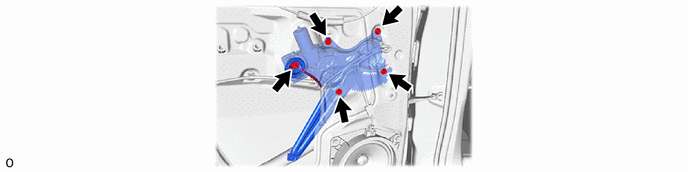

    1. GTY1217579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE REAR DOOR LOCK CHILD PROTECTION COVER LH

    Refer to PROCEDURE - Step 15

  26. REMOVE REAR DOOR LOCK WITH MOTOR ASSEMBLY LH
    Refer to PROCEDURE - Step 16
  27. REMOVE DOOR LOCK WIRING HARNESS SEAL
    Refer to PROCEDURE - Step 17
  28. REMOVE REAR DOOR OUTSIDE HANDLE ASSEMBLY LH

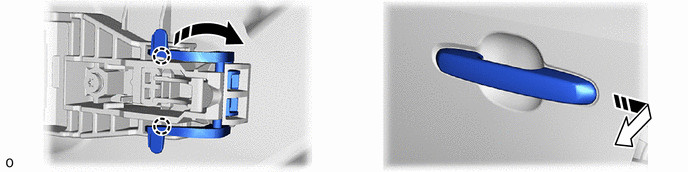

    1. GTY1222261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)

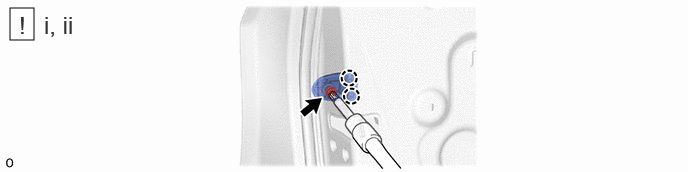

  29. REMOVE REAR DOOR OUTSIDE HANDLE COVER
    1. GTY1216105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a T30 "TORX" socket wrench, loosen the "TORX" screw.
      2. Detach the claw and remove the rear door outside handle cover.

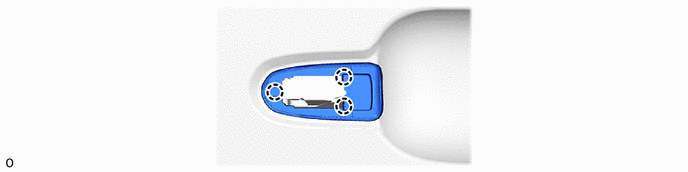

  30. REMOVE REAR DOOR FRONT OUTSIDE HANDLE PAD
    1. GTY1217572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

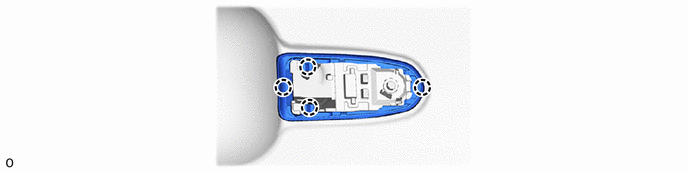

  31. REMOVE REAR DOOR REAR OUTSIDE HANDLE PAD
    1. GTY1217571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

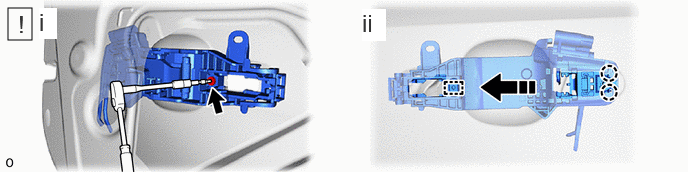

  32. REMOVE REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY LH
    1. GTY1222835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a T30 "TORX" socket wrench, loosen the "TORX" screw.
      2. Detach the claw and guide to remove the rear door outside handle frame sub-assembly LH as shown in the illustration.
  33. REMOVE REAR SPEAKER ASSEMBLY
    Refer to PROCEDURE - Step 5

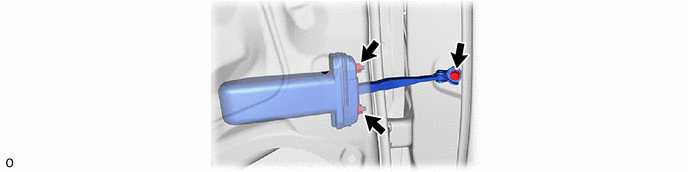

  34. REMOVE REAR DOOR CHECK ASSEMBLY LH
    1. GTY1224591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE REAR DOOR WEATHERSTRIP LH
    NOTE:

    When removing the rear door weatherstrip LH, if the double-sided tape is difficult to remove, heat the adhesive of the rear door weatherstrip LH using a heat light.

    Standard Value

    Part Temperature
    Rear Door Weatherstrip LH 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the rear door weatherstrip LH excessively.

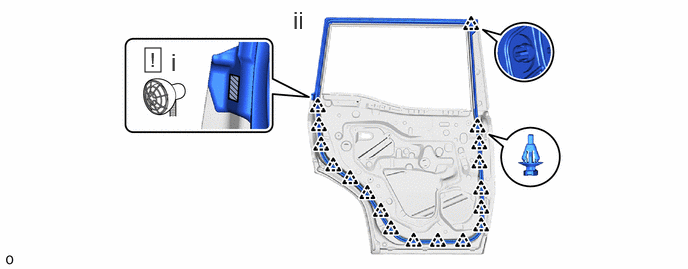

    1. GTY1219416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape - -
      1. Heat the adhesive of the rear door weatherstrip LH using a heat light.
      2. Detach the double-sided tape and clip to remove the rear door weatherstrip LH.
  36. REMOVE REAR DOOR NO. 2 WEATHERSTRIP LH
    NOTE:

    When removing the rear door No. 2 weatherstrip LH, if the double-sided tape is difficult to remove, heat the adhesive of the rear door No. 2 weatherstrip LH using a heat light.

    Standard Value

    Part Temperature
    Rear Door No. 2 Weatherstrip LH 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the rear door No. 2 weatherstrip LH excessively.

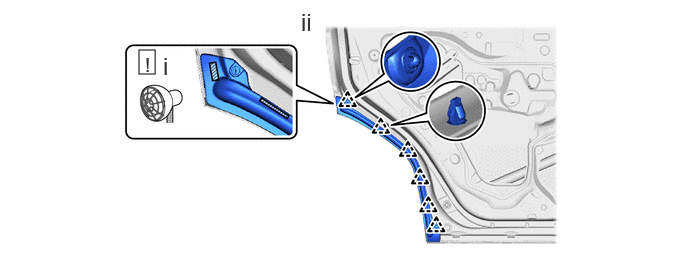

    1. GTY1214078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape - -
      1. Heat the adhesive of the rear door No. 2 weatherstrip LH using a heat light.
      2. Detach the double-sided tape and clip to remove the rear door No. 2 weatherstrip LH.
  37. REMOVE REAR DOOR BELT MOULDING LH
    Refer to PROCEDURE - Step 14
  38. REMOVE REAR DOOR WINDOW FRAME MOULDING LH (CENTER PILLAR SIDE)
    Refer to PROCEDURE - Step 4
  39. REMOVE OUTSIDE MOULDING SET LH

    Refer to REMOVAL [02/2024 - ]

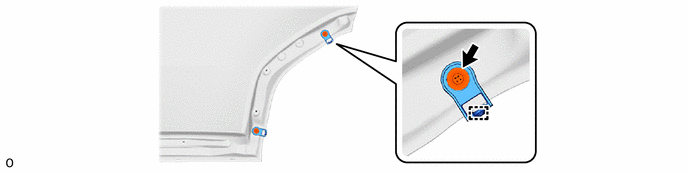

  40. REMOVE OUTSIDE MOULDING RETAINER
    1. GTY1217561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH
    Refer to PROCEDURE - Step 2

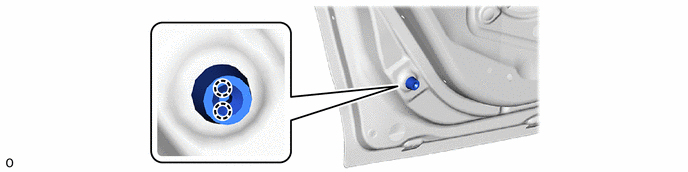

  42. REMOVE REAR DOOR PANEL CUSHION
    1. GTY1217560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE HOLE PLUG
    1. GTY1219499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

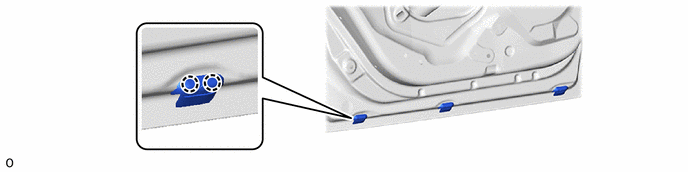

  44. REMOVE REAR DOOR DUST PROOF SEAL
    1. GTY1217559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE SCREW GROMMET

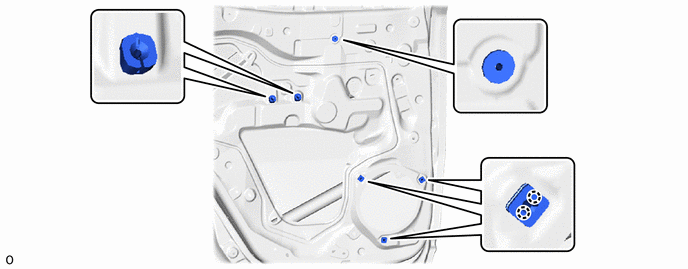

    1. GTY1217558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE NO. 2 BLACK OUT TAPE LH
    Refer to PROCEDURE - Step 3
