Removal [02/2024 - ]: Procedure

  1. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL LH

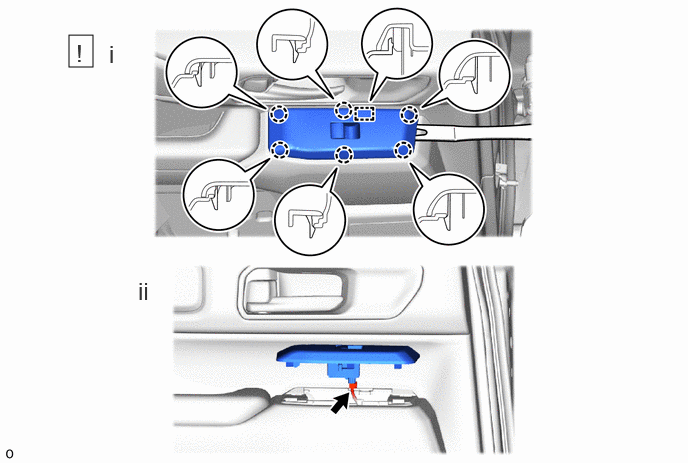

    1. GTY1225924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using moulding remover B, detach the claw and guide.
      2. Disconnect the connector and remove the rear power window regulator switch assembly with rear door upper armrest base panel LH.
  2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY
    1. GTY1225914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a thin-bladed screwdriver, detach the claw and remove the rear power window regulator switch assembly from the rear door upper armrest base panel LH.

        HINT:

        Tape the thin-bladed screwdriver tip before use.
