Removal [02/2024 - ]: Procedure
- REMOVE REAR DOOR UPPER TRIM COVER LH
Refer to PROCEDURE - Step 3 - REMOVE REAR DOOR ARMREST COVER SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 4 - REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 5
- REMOVE REAR NO. 2 SPEAKER ASSEMBLY (for 14 Speakers) NOTE:
Do not touch the cone of the rear No. 2 speaker assembly.

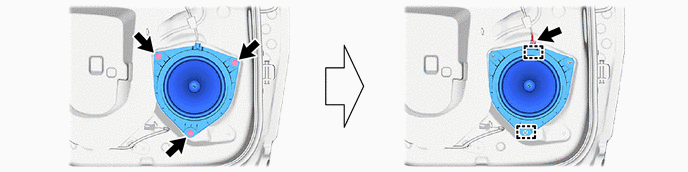

- REMOVE REAR SPEAKER ASSEMBLY NOTE:
Do not touch the cone of the rear speaker assembly.
