Removal [02/2024 - ]: Procedure
- REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
Refer to PROCEDURE - Step 1 - REMOVE LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE LOWER NO. 2 INSTRUMENT PANEL PAD SUB-ASSEMBLY
- Use the same procedure described for the lower No. 2 instrument panel pad sub-assembly.
- REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 7
- REMOVE COWL SIDE TRIM BOARD LH
Refer to PROCEDURE - Step 9
- REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER
Refer to PROCEDURE - Step 11
- REMOVE UPPER CONSOLE PANEL ASSEMBLY
Refer to PROCEDURE - Step 4
- REMOVE INTEGRATION CONTROL AND PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 5
- REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 6
- REMOVE LOWER INSTRUMENT PANEL LH
Refer to PROCEDURE - Step 18
- REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
Refer to PROCEDURE - Step 15
- REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 22
- REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY (for Type A)
Refer to PROCEDURE - Step 23 - REMOVE INSTRUMENT PANEL ORNAMENT (for Type B)
Refer to PROCEDURE - Step 24 - REMOVE UPPER INSTRUMENT CLUSTER FINISH PANEL
Refer to PROCEDURE - Step 25
- REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL (for 8 Inch Display)
Refer to PROCEDURE - Step 26
- REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET
HINT:
The illustrations are representative examples, and details may differ.
- for 8 Inch Display:

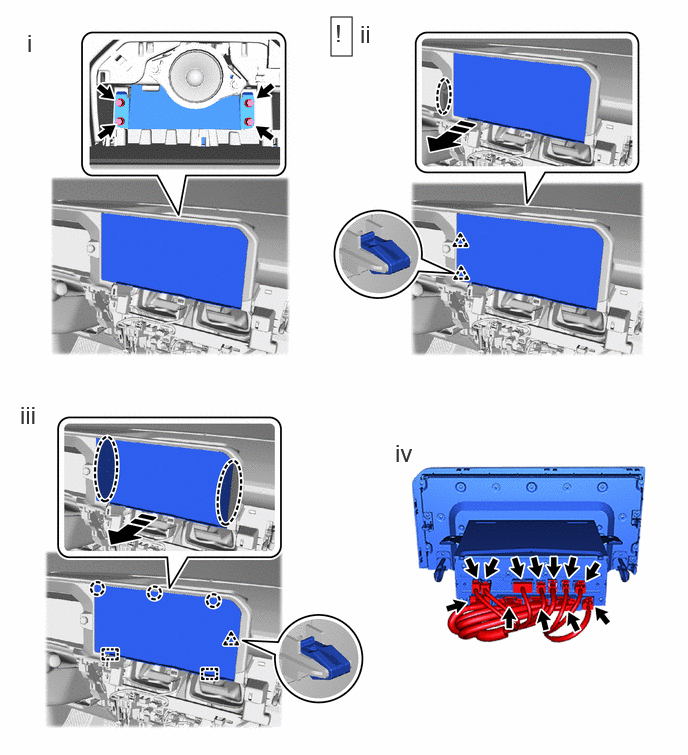

Place Hands Here Remove in this Direction - Remove the 4 bolts.
- Place your hands shown in the illustration and move it toward the rear of the vehicle to detach the clip.
- Disconnect each connector.
- for 12.3 Inch Display:

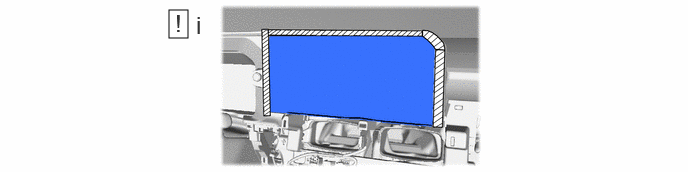

Protective tape - - - Put protective tape around the radio and display receiver assembly with bracket.
- for 12.3 Inch Display:

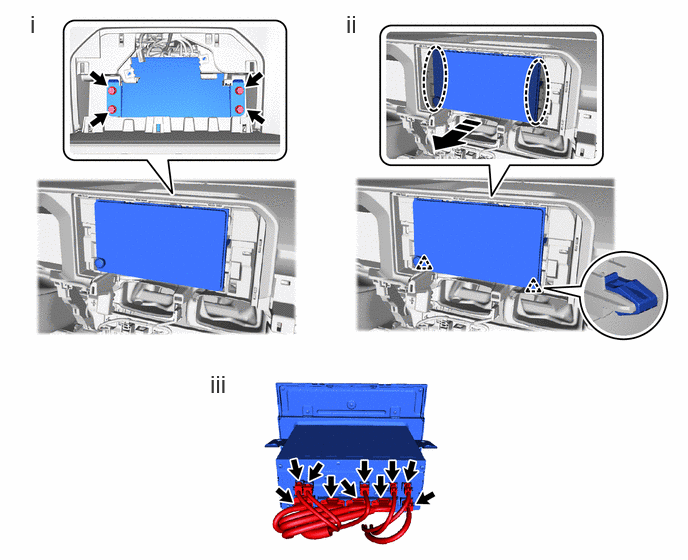

Place Hands Here Remove in this Direction - Remove the 4 bolts.
- While holding the position shown in the illustration, detach the clip.
- Place your hands shown in the illustration and move it toward the rear of the vehicle to detach the clip, claw and guide.
- Disconnect each connector.
- for 8 Inch Display:

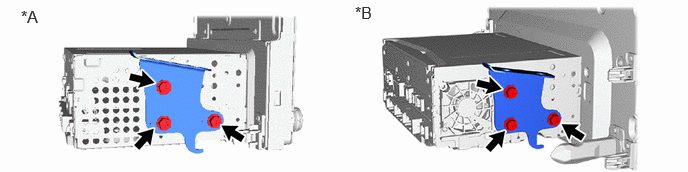

- REMOVE NO. 1 RADIO RECEIVER BRACKET

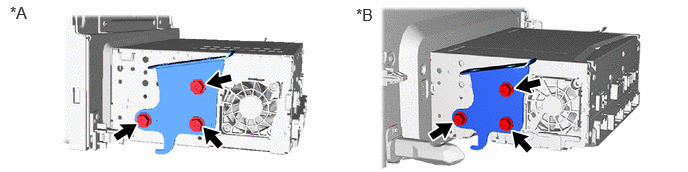

- REMOVE NO. 2 RADIO RECEIVER BRACKET
- REMOVE INSTRUMENT SIDE PANEL LH (for 12.3 Inch Display)
HINT:
Perform this procedure only when replacing the switch and volume assembly.
Refer to PROCEDURE - Step 13
- REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (for 12.3 Inch Display)
HINT:
Perform this procedure only when replacing the switch and volume assembly.
Refer to PROCEDURE - Step 16
- REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for 12.3 Inch Display)
HINT:
Perform this procedure only when replacing the switch and volume assembly.
Refer to PROCEDURE - Step 28
- REMOVE SWITCH AND VOLUME ASSEMBLY (for 12.3 Inch Display)
HINT:
Perform this procedure only when replacing the switch and volume assembly.
