Removal [02/2024 - ]: Procedure

  1. REMOVE LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY

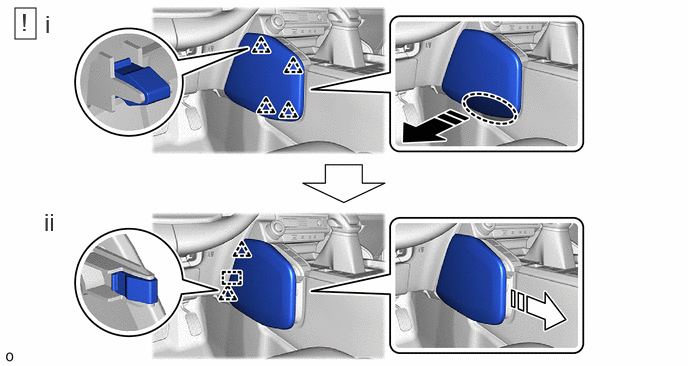

    1. GTY1224930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here Remove in this Direction (1)
      Remove in this Direction (2) - -
      1. Place your hand as shown in the illustration, detach the clip.
      2. Detach the clip and guide and remove the lower No. 1 instrument panel pad sub-assembly.
  2. REMOVE LOWER NO. 2 INSTRUMENT PANEL PAD SUB-ASSEMBLY

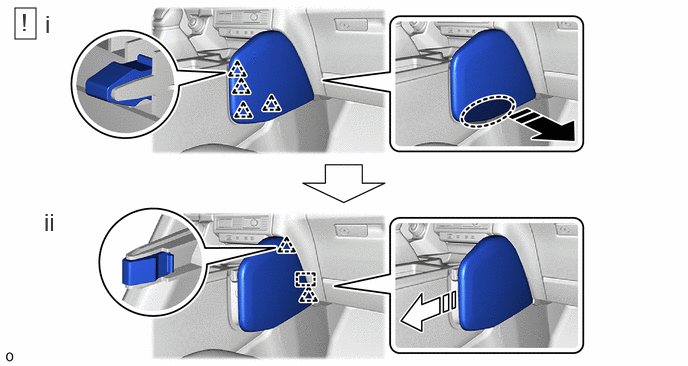

    1. GTY1225858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here Remove in this Direction (1)
      Remove in this Direction (2) - -
      1. Place your hand as shown in the illustration, detach the clip.
      2. Detach the clip and guide and remove the lower No. 2 instrument panel pad sub-assembly.
  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    Refer to PROCEDURE - Step 1
  4. REMOVE UPPER CONSOLE PANEL ASSEMBLY

    HINT:

    The illustrations are representative examples, and details may differ.

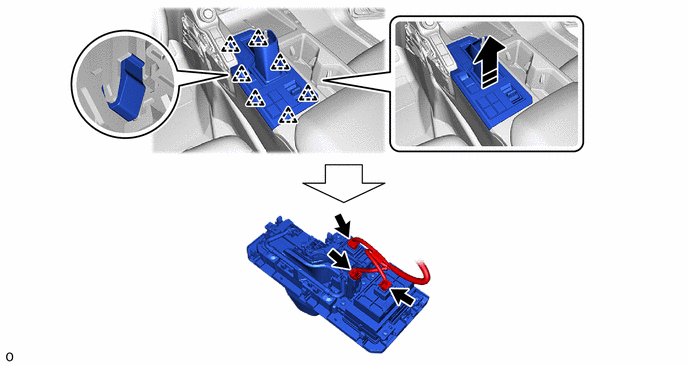

    1. GTY1223148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  5. REMOVE INTEGRATION CONTROL AND PANEL SUB-ASSEMBLY

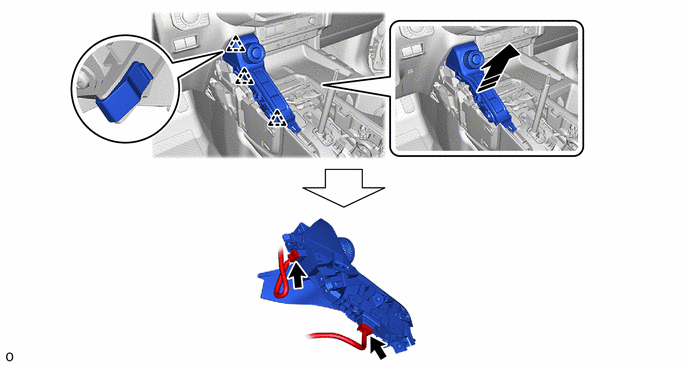

    1. GTY1223984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  6. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    HINT:

    The illustrations are representative examples, and details may differ.

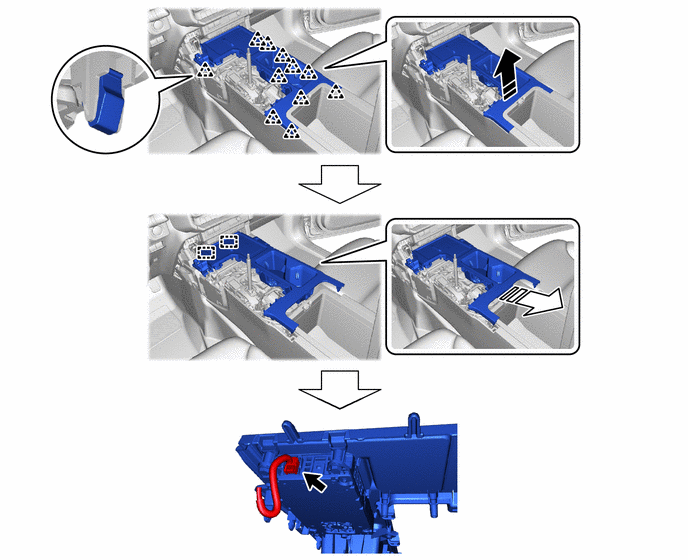

    1. GTY1224222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
  7. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY

    HINT:

    The illustrations are representative examples, and details may differ.

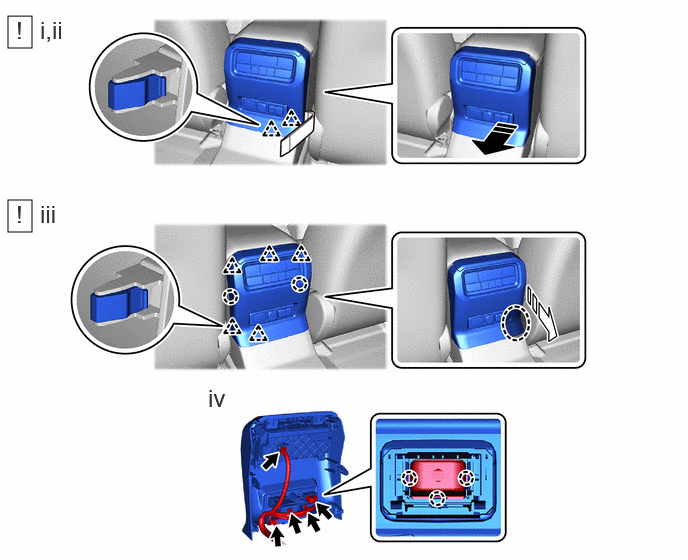

    1. GTY1222022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hands Here Remove in this Direction (1)
      Remove in this Direction (2) - -
      1. Insert moulding remover D in the position shown in the illustration.
      2. Place your hand in the gap as shown in the illustration, detach the clip.
      3. Place your hand as shown in the illustration, detach the claw and clip and remove the rear console end panel sub-assembly.
      4. Disconnect the each connectors and detach the claw.
  8. REMOVE NO. 2 CONSOLE REAR END PANEL SUB-ASSEMBLY

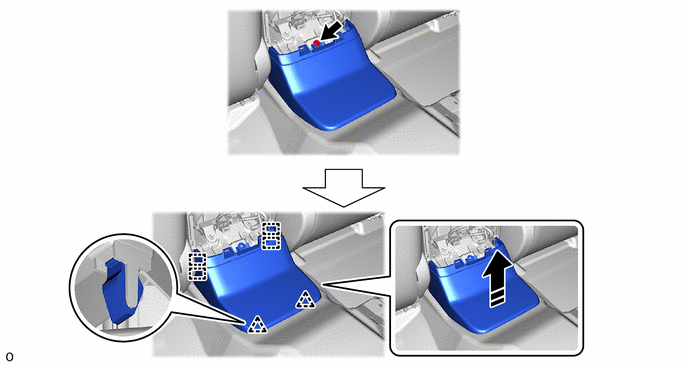

    1. GTY1220057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  9. REMOVE CONSOLE BOX ASSEMBLY

    HINT:

    The illustrations are representative examples, and details may differ.

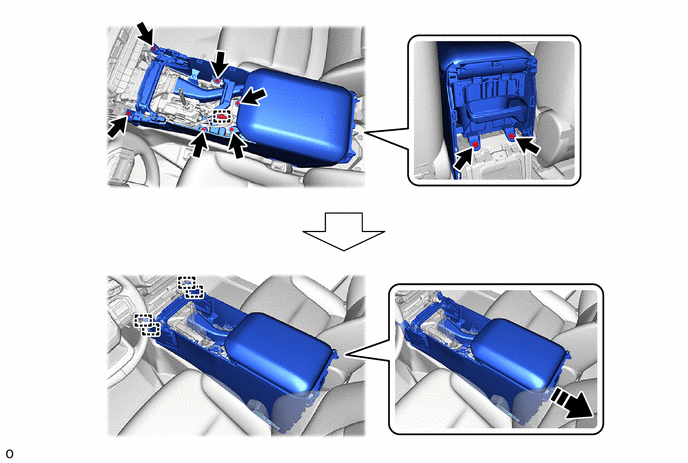

    1. GTY1221377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
