Removal [09/2022 - ]: Procedure

REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 12 [09/2022 - 11/2022] , or refer to PROCEDURE - Step 20 [11/2022 - 09/2024] , or refer to PROCEDURE - Step 25 [09/2024 - ]
REMOVE IGNITION COIL ASSEMBLY
Refer to PROCEDURE - Step 2

REMOVE SPARK PLUG

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

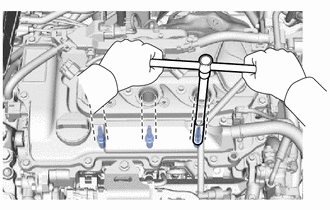

Remove the 3 spark plugs from the cylinder head sub-assembly.

NOTE:

If a spark plug has been struck or dropped, replace it.

HINT:

Arrange the removed parts in the correct order.
