Removal [09/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 12 [09/2022 - 11/2022] , or refer to PROCEDURE - Step 20 [11/2022 - 09/2024] , or refer to PROCEDURE - Step 25 [09/2024 - ]

REMOVE IGNITION COIL ASSEMBLY

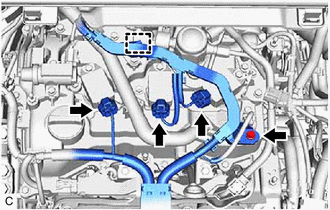

Disconnect the 3 ignition coil assembly connectors.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the bolt.
Disengage the clamp and disconnect the engine wire.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

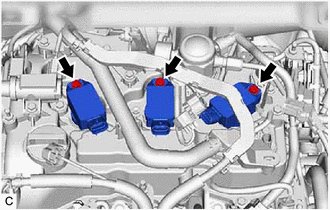

Remove the 3 bolts and 3 ignition coil assemblies from the cylinder head cover sub-assembly.

NOTE:

If an ignition coil assembly has been struck or dropped, replace it.

HINT:

Arrange the removed parts in the correct order.

REMOVE SPARK PLUG
Refer to PROCEDURE - Step 3
