Removal [01/2019 - 09/2022]: Procedure

WARNING: This page is about a different variant/trim than selected.

DRAIN ENGINE COOLANT (for Engine)
Refer to PROCEDURE - Step 1 [01/2019 - 04/2020] , or refer to PROCEDURE - Step 1 [04/2020 - 09/2022]

REMOVE AIR CLEANER CAP SUB-ASSEMBLY

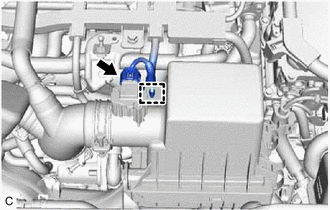

Disconnect the mass air flow meter connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

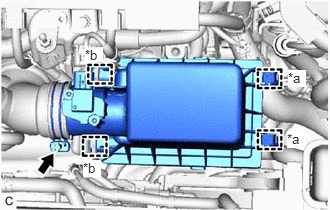

Disengage the 2 clamps.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Clamp
*b	Guide

Disengage the 2 guides and remove the air cleaner cap sub-assembly from the air cleaner case sub-assembly.
Loosen the hose clamp and remove the air cleaner cap sub-assembly from the air cleaner hose assembly.

REMOVE AIR CLEANER HOSE ASSEMBLY

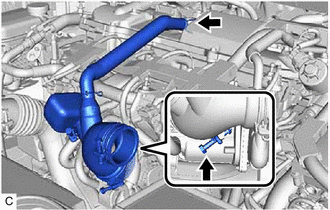

Slide the clip and disconnect the No. 2 ventilation hose from the cylinder head cover sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Loosen the hose clamp and remove the air cleaner hose assembly from the throttle body assembly.

REMOVE THROTTLE BODY ASSEMBLY

Disconnect the throttle body assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

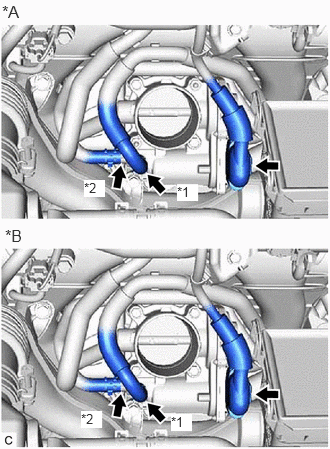

Slide the 2 clips and disconnect the water by-pass hose and No. 2 water by-pass hose from the throttle body assembly.

w/ Stud Bolt:

*A	w/ Stud Bolt
*B	w/o Stud Bolt

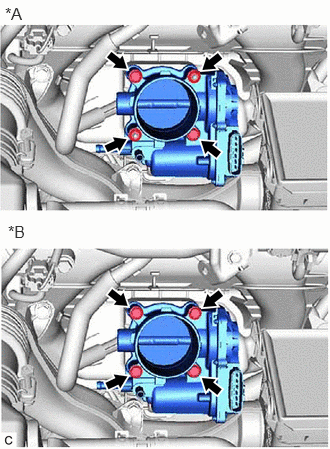

Remove the 2 bolts, 2 nuts and throttle body assembly from the intake manifold.
NOTE:
If the throttle body assembly has been struck or dropped, replace it.

w/o Stud Bolt:
1. Remove the 4 bolts and throttle body assembly from the intake manifold.
  NOTE:
  If the throttle body assembly has been struck or dropped, replace it.

REMOVE THROTTLE BODY GASKET

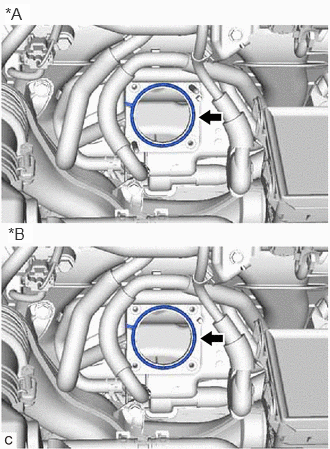

Remove the throttle body gasket from the intake manifold.

*A	w/ Stud Bolt
*B	w/o Stud Bolt
