Removal [01/2019 - 04/2020]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. PRECAUTION

    Refer to PRECAUTION [06/2018 - ]

  2. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM
  3. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [01/2019 - 04/2020]

  4. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  5. SECURE STEERING WHEEL

    Refer to PROCEDURE - Step 2

  6. REMOVE FRONT WHEELS

    Refer to REMOVAL [01/2019 - 03/2019] , or refer to REMOVAL [03/2019 - 09/2022]

  7. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
    1. Remove the 4 bolts.

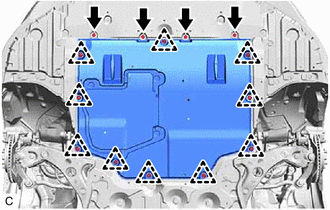

      GTY940949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 10 clips and No. 1 engine under cover assembly from the vehicle.
  8. REMOVE REAR ENGINE UNDER COVER LH
    1. Type A:
      1. Remove the screw.
        GTY888693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the 4 clips and rear engine under cover LH from the vehicle.
    2. Type B:
      1. Remove the screw.
        GTY888668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the 5 clips and rear engine under cover LH from the vehicle.
  9. REMOVE REAR ENGINE UNDER COVER RH
    1. Type A:
      1. Remove the screw.
        GTY888694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the 4 clips and rear engine under cover RH from the vehicle.
    2. Type B:
      1. Remove the screw.
        GTY888669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the 5 clips and rear engine under cover RH from the vehicle.
  10. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 2

  11. DRAIN ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 1

  12. DRAIN HYBRID TRANSAXLE FLUID

    Refer to PROCEDURE - Step 2

  13. DISCONNECT NO. 8 WATER BY-PASS HOSE
    1. Slide the clip and disconnect the No. 8 water by-pass hose from the No. 2 water by-pass hose assembly.
      GTY550746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE RADIATOR SUPPORT OPENING COVER

    Refer to PROCEDURE - Step 2

  15. REMOVE INLET NO. 2 AIR CLEANER

    Refer to PROCEDURE - Step 3

  16. REMOVE THROTTLE BODY ASSEMBLY

    Refer to REMOVAL [01/2019 - 09/2022]

  17. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  18. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  19. REMOVE AIR CLEANER BRACKET

    Refer to PROCEDURE - Step 6

  20. REMOVE INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 7

  21. REMOVE INVERTER WITH CONVERTER ASSEMBLY

    Refer to REMOVAL [01/2019 - 04/2020]

  22. DISCONNECT FLOOR SHIFT TRANSMISSION CONTROL SELECT CABLE
    1. Remove the nut and disconnect the floor shift transmission control select cable from the control shaft lever.
      GTY833424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clip and disconnect the floor shift transmission control select cable from the No. 1 transmission control cable bracket.
    3. Remove the bolt to disconnect the floor shift transmission control select cable from the cylinder head cover sub-assembly.

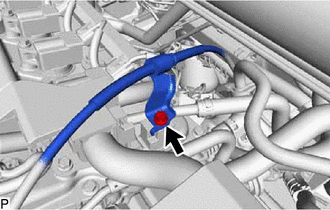

      GTY921090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. DISCONNECT NO. 3 RADIATOR HOSE
    1. Remove the 2 bolts from the hybrid vehicle transaxle assembly.
      GTY567885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the clip and disconnect the No. 3 radiator hose from the water outlet.
  24. DISCONNECT NO. 2 RADIATOR HOSE
    1. Slide the clip and disconnect the No. 2 radiator hose from the water inlet sub-assembly.
      GTY604039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. DISCONNECT INLET HEATER WATER HOSE
    1. Slide the clip and disconnect the inlet heater water hose.
      GTY934715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. DISCONNECT OUTLET HEATER WATER HOSE
    1. Slide the clip and disconnect the outlet heater water hose.
      GTY877002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. DISCONNECT FUEL VAPOR FEED HOSE
    1. GTY567910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Slide the clip and disconnect the fuel vapor feed hose from the fuel vapor feed pipe.

  28. DISCONNECT FUEL TUBE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  29. DISCONNECT INLET HYBRID RADIATOR HOSE
    1. Slide the clip and disconnect the inlet hybrid radiator hose from the motor cooling cooler.

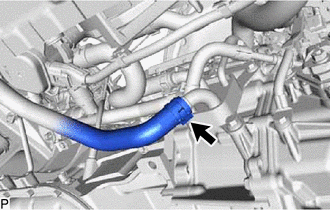

      GTY921013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not pull the inlet hybrid radiator hose with excessive force to deform the motor cooling cooler pipe.
      • If the motor cooling cooler pipe is deformed replace it because using a deformed pipe can cause coolant leakage.
  30. DISCONNECT OUTLET NO. 1 HYBRID WATER PUMP HOSE
    1. Slide the clip and disconnect the outlet No. 1 hybrid water pump hose from the motor cooling cooler.

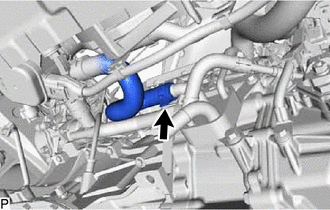

      GTY921012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not pull the outlet No. 1 hybrid water pump hose with excessive force to deform the motor cooling cooler pipe.
      • If the motor cooling cooler pipe is deformed replace it because using a deformed pipe can cause coolant leakage.
  31. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 13

  32. DISCONNECT SUCTION HOSE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14

  33. DISCONNECT NO. 3 ENGINE WIRE
    1. Remove the 3 bolts.

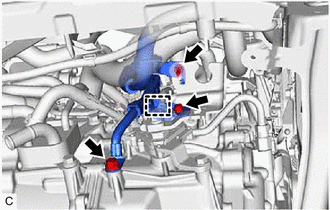

      GTY877009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp and disconnect the No. 3 engine wire from the hybrid vehicle transaxle assembly.
  34. REMOVE COLUMN HOLE COVER SILENCER SHEET

    Refer to PROCEDURE - Step 13 [01/2019 - 03/2019] , or refer to PROCEDURE - Step 13 [03/2019 - 09/2019] , or refer to PROCEDURE - Step 13 [09/2019 - 04/2020]

  35. SEPARATE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

    Refer to PROCEDURE - Step 14 [01/2019 - 03/2019] , or refer to PROCEDURE - Step 14 [03/2019 - 09/2019] , or refer to PROCEDURE - Step 14 [09/2019 - 04/2020]

  36. SEPARATE NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  37. REMOVE FRONT FLOOR COVER LH

    Refer to PROCEDURE - Step 2

  38. REMOVE FRONT FLOOR COVER RH

    HINT:

    Use the same procedure as for the LH side.

  39. REMOVE FRONT FLOOR CENTER BRACE

    Refer to PROCEDURE - Step 4

  40. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

    Refer to PROCEDURE - Step 5

  41. REMOVE FRONT DRIVE SHAFT ASSEMBLY

    Refer to REMOVAL [01/2019 - 09/2022]

  42. REMOVE REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 10

  43. REMOVE REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  44. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
    1. Set the engine assembly with transaxle on an engine lifter.
      NOTE:
      • Using height adjustment attachments and plate lift attachments, keep the engine assembly with transaxle and front suspension crossmember sub-assembly level.
      • Do not perform any procedures while the engine assembly is suspended because doing so may cause the engine assembly to drop, resulting in injury. However, the engine assembly needs to be suspended when it is installed to or removed from an engine stand.
      • To prevent the engine assembly from unexpectedly moving, securely support the engine assembly until it is secured to an engine stand.
      • To prevent the oil pan sub-assembly from deforming, do not place any attachments under the oil pan sub-assembly of the engine assembly with transaxle.
    2. Remove the 2 bolts and nut and separate the engine mounting insulator sub-assembly RH from the engine mounting bracket RH.

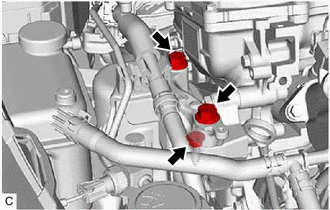

      GTY909155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 3 bolts and nut and separate the engine mounting insulator LH from the hybrid vehicle transaxle assembly.
      GTY567902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the bolt and No. 2 engine mounting stay LH.
      GTY586182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 4 bolts to separate the front suspension crossmember sub-assembly from the vehicle.
      GTY877008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Operate the engine lifter and remove the engine assembly with transaxle from the vehicle.
      NOTE:
      • Make sure that the engine assembly with transaxle is clear of all wiring and hoses.
      • While lowering the engine assembly with transaxle from the vehicle, do not allow it to contact the vehicle.
  45. REMOVE WIRE HARNESS CLAMP BRACKET
    1. Disengage the 3 clamps.

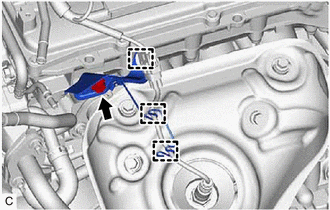

      GTY877013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and wire harness clamp bracket from the cylinder head sub-assembly.
  46. INSTALL ENGINE HANGERS
    1. Install the No. 1 engine hanger and No. 2 engine hanger with the 2 bolts.
      GTY940259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Engine Hanger
      *2 No. 2 Engine Hanger
      *a Bolt

      Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

      HINT:

      No. 1 Engine Hanger 12281-37070
      No. 2 Engine Hanger 12282-37060
      Bolt 91552-81050
    2. Using an engine sling device and engine lifter, secure the engine assembly with transaxle.
      NOTE:
      • Adjust the angle of the sling device carefully to prevent damage or deformation to the engine hangers or engine assembly.
      • Do not perform any procedures while the engine assembly is suspended because doing so may cause the engine assembly to drop, resulting in injury. However, the engine assembly needs to be suspended when it is installed to or removed from an engine stand.
  47. REMOVE ENGINE MOUNTING INSULATOR LH

    HINT:

    Perform this procedure only when replacement of the engine mounting insulator LH is necessary.

    1. Remove the 4 bolts, nut and engine mounting insulator LH from the vehicle.

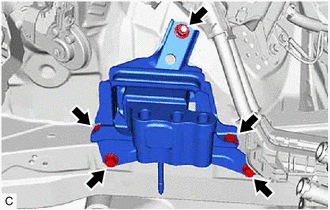

      GTY909154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH

    HINT:

    Perform this procedure only when replacement of the engine mounting insulator sub-assembly RH is necessary.

    1. Remove the 2 bolts and No. 2 earth wire from the engine mounting insulator sub-assembly RH and vehicle.
      GTY606692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. GTY567918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the bolt, nut and disconnect the air conditioner tube and accessory assembly.

    3. Remove the 2 bolts, nut and engine mounting insulator sub-assembly RH from the vehicle.
  49. REMOVE COMPRESSOR WITH MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 15

  50. REMOVE STARTER HOLE INSULATOR

    Refer to PROCEDURE - Step 7

  51. REMOVE FLYWHEEL HOUSING SIDE COVER

    Refer to PROCEDURE - Step 8

  52. REMOVE ENGINE WIRE
    1. Disconnect all the clamps and connectors and remove the engine wire from the engine assembly with transaxle.
  53. REMOVE ENGINE ASSEMBLY

    Refer to PROCEDURE - Step 9

  54. REMOVE TRANSMISSION INPUT DAMPER ASSEMBLY

    Refer to PROCEDURE - Step 2

  55. REMOVE FLYWHEEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  56. INSTALL ENGINE ASSEMBLY TO ENGINE STAND
    1. Install the engine assembly to an engine stand.
  57. REMOVE ENGINE HANGERS
    1. Remove the 2 bolts, No. 1 engine hanger and No. 2 engine hanger.
