Removal [01/2019 - 03/2019]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE THROTTLE BODY ASSEMBLY

    Refer to PROCEDURE - Step 3

  2. REMOVE INTAKE MANIFOLD

    Refer to PROCEDURE - Step 3

  3. REMOVE PURGE VALVE (PURGE VSV)

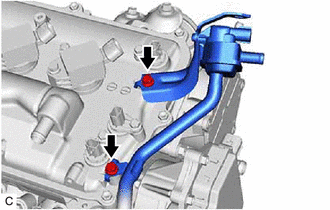

    GTY863210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 bolts and purge valve (purge VSV) from the cylinder head cover sub-assembly.
  4. DISCONNECT FUEL TUBE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  5. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  6. REMOVE NO. 1 DELIVERY PIPE SPACER

    Refer to PROCEDURE - Step 7

  7. REMOVE FUEL INJECTOR ASSEMBLY

    Refer to PROCEDURE - Step 9

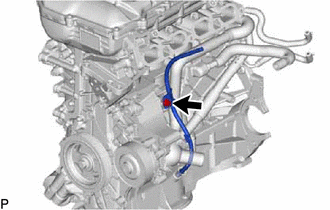

  8. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE
    1. Remove the engine oil level dipstick.
    2. Remove the bolt and engine oil level dipstick guide.
      GTY765100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-ring from the engine oil level dipstick guide.
  9. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 2

  10. REMOVE DRIVE SHAFT HEAT INSULATOR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  11. REMOVE MANIFOLD STAY

    Refer to PROCEDURE - Step 4

  12. REMOVE EXHAUST MANIFOLD

    Refer to PROCEDURE - Step 5

  13. REMOVE VENTILATION HOSE

    Refer to PROCEDURE - Step 2

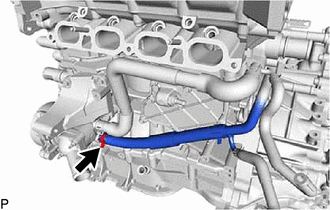

  14. DISCONNECT NO. 3 WATER BY-PASS HOSE
    1. Slide the clip and disconnect the No. 3 water by-pass hose from the water inlet housing
      GTY915169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

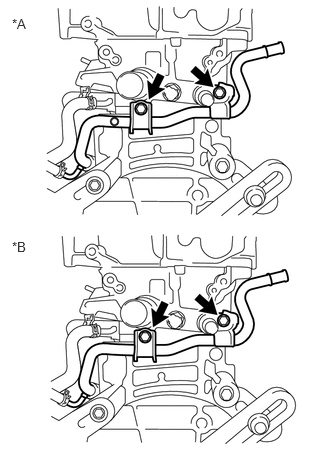

  15. REMOVE NO. 1 WATER BY-PASS PIPE
    1. Remove the 2 bolts and No. 1 water by-pass pipe.
      GTY855241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for CVT
      *B for Manual Transaxle

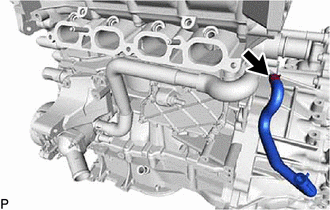

  16. REMOVE WATER BY-PASS HOSE
    1. Slide the clip and remove the water by-pass hose from the cylinder head sub-assembly.
      GTY915170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

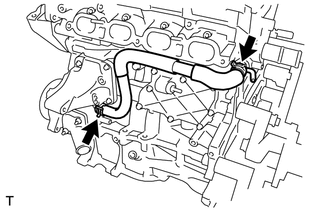

  17. REMOVE WATER INLET HOSE
    1. Slide the 2 clips and remove the water inlet hose.
      GTY438375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. SEPARATE WATER INLET

    Refer to PROCEDURE - Step 3

  19. REMOVE THERMOSTAT

    Refer to PROCEDURE - Step 4

  20. REMOVE VACUUM PUMP ASSEMBLY

    Refer to PROCEDURE - Step 3

  21. REMOVE NO. 1 VACUUM PUMP BRACKET
    1. Remove the 2 bolts, No. 1 vacuum pump bracket and gasket.
      GTY430066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

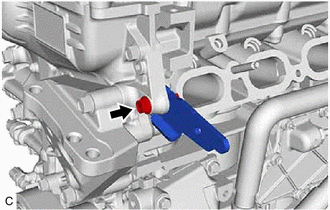

  22. REMOVE NO. 2 GENERATOR BRACKET
    1. Remove the bolt and No. 2 generator bracket from the cylinder head sub-assembly.
      GTY929020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY
    NOTE:

    Do not supply oil to the tensioner when an abnormal noise of the belt occurs.

    1. Remove the 2 bolts and V-ribbed belt tensioner assembly from the engine assembly.

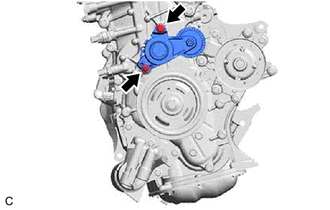

      GTY851049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

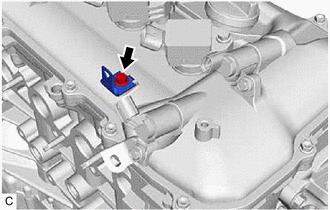

  24. REMOVE WIRE HARNESS CLAMP BRACKET
    1. Remove the bolt and wire harness clamp bracket from the cylinder head cover sub-assembly.
      GTY851048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 1

  26. REMOVE ENGINE OIL TEMPERATURE SENSOR

    Refer to PROCEDURE - Step 2
