Removal [01/2019 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 7 [01/2019 - 03/2019] , or refer to PROCEDURE - Step 7 [03/2019 - 09/2022] , or refer to PROCEDURE - Step 7 [09/2022 - 11/2022]

  2. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 1

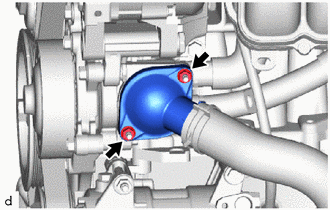

  3. SEPARATE WATER INLET
    1. Remove the 2 nuts and separate the water inlet.
      GTY742321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

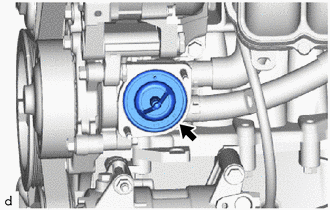

  4. REMOVE THERMOSTAT
    1. Remove the thermostat from the water inlet housing.
      GTY742322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the gasket from the thermostat.
