Removal [01/2019 - 11/2022]: Procedure
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- DRAIN ENGINE COOLANT
Refer to PROCEDURE - Step 1
- REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
- Disconnect the mass air flow meter sub-assembly connector and disengage the wire harness clamp.

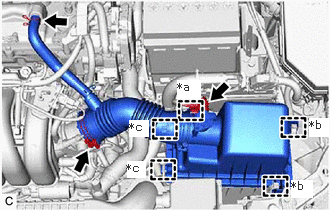

*a Wire Harness Clamp *b Clamp *c Guide - Disengage the 2 clamps and 2 guides.
- Slide the clip and disconnect the No. 2 ventilation hose from the cylinder head cover sub-assembly.
- Loosen the hose clamp and remove the air cleaner cap with air cleaner hose from the throttle body assembly.
- Disconnect the mass air flow meter sub-assembly connector and disengage the wire harness clamp.
- REMOVE THROTTLE BODY ASSEMBLY
- Disconnect the throttle body assembly connector.

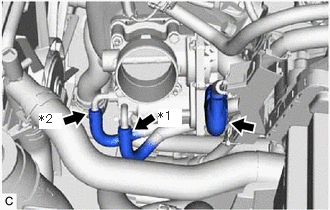

*1 Water By-pass Hose *2 No. 2 Water By-pass Hose - Slide the 2 clips and disconnect the water by-pass hose and No. 2 water by-pass hose from the throttle body assembly.
- w/ Stud Bolt:

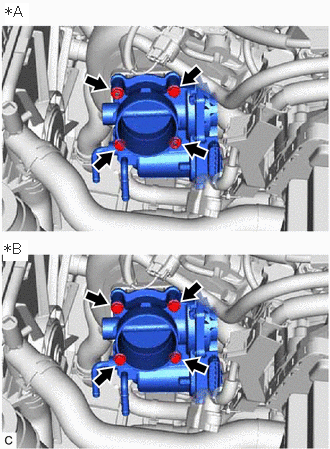

*A w/ Stud Bolt *B w/o Stud Bolt - Remove the 2 bolts, 2 nuts and throttle body assembly from the intake manifold.NOTE:
If the throttle body assembly has been struck or dropped, replace it.
- Remove the 2 bolts, 2 nuts and throttle body assembly from the intake manifold.
- w/o Stud Bolt:
- Remove the 4 bolts and throttle body assembly from the intake manifold.NOTE:
If the throttle body assembly has been struck or dropped, replace it.
- Remove the 4 bolts and throttle body assembly from the intake manifold.
- Disconnect the throttle body assembly connector.

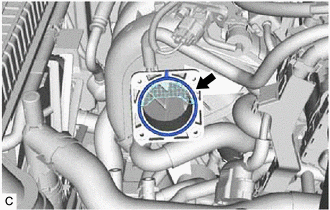

- REMOVE THROTTLE BODY GASKET
