Removal [01/2019 - 11/2022]: Procedure
WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE THROTTLE BODY ASSEMBLY
Refer to REMOVAL [01/2019 - 11/2022]
- REMOVE E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)
Refer to PROCEDURE - Step 1
- REMOVE INTAKE MANIFOLD
- Disengage the wire harness clamp from the intake manifold.

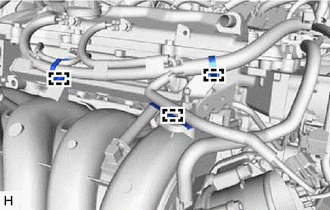

- Disengage the 2 wire harness clamps from the vacuum sensor bracket.

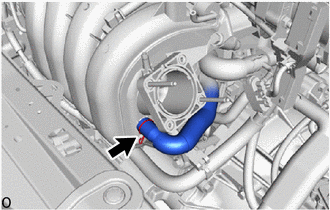

- Disconnect the No. 1 air hose from the intake manifold.

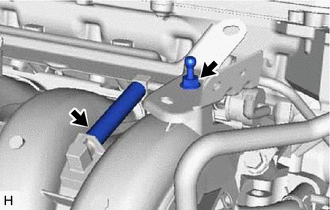

- Remove the engine cover joint and vacuum sensor bracket from the intake manifold.

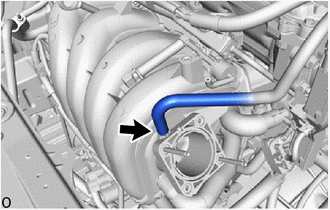

- Disconnect the No. 1 fuel vapor feed hose from the intake manifold.
- Slide the clip and disconnect the ventilation hose from the intake manifold.

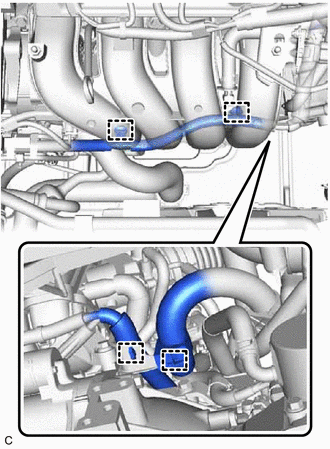

- Disengage the 4 wire harness clamps.

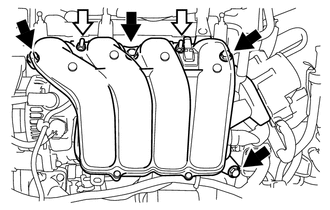

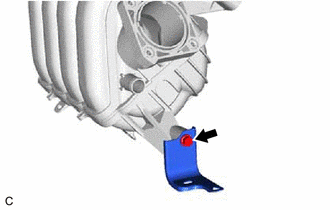

- Remove the 4 bolts, 2 nuts, intake manifold and intake manifold stay.
HINT:
If the intake manifold set bolt cannot be removed because the tip of the No. 2 generator bracket set bolt is in the way, remove the V-ribbed belt first.
*a Tip of No. 2 Generator Bracket Set Bolt *b Intake Manifold Set Bolt Refer to REMOVAL [01/2019 - 03/2019] , or refer to REMOVAL [03/2019 - 09/2022] , or refer to REMOVAL [09/2022 - 11/2022]
Bolt Nut - Remove the engine cover joint from the intake manifold.
- Remove the bolt and wire harness clamp bracket from the intake manifold.
- Disengage the wire harness clamp from the intake manifold.
- REMOVE NO. 1 INTAKE MANIFOLD TO HEAD GASKET
- REMOVE STUD BOLT (w/ Stud Bolt)
HINT:
If a stud bolt is deformed or the threads are damaged, replace it.
