Removal [09/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota GR Corolla, 2024 Toyota GR Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 9 [09/2022 - 11/2022] , or refer to PROCEDURE - Step 9 [11/2022 - 09/2024] , or refer to PROCEDURE - Step 9 [09/2024 - ]
DRAIN ENGINE COOLANT
Refer to PROCEDURE - Step 2 [09/2022 - 09/2024] , or refer to PROCEDURE - Step 2 [09/2024 - ]
DRAIN ENGINE OIL
Refer to PROCEDURE - Step 2
REMOVE OIL PRESSURE AND TEMPERATURE SENSOR
See step 2

DISCONNECT NO. 6 WATER BY-PASS HOSE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

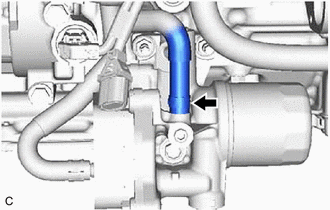

Slide the clip and disconnect the No. 6 water by-pass hose from the oil filter bracket sub-assembly.

DISCONNECT NO. 5 WATER BY-PASS HOSE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

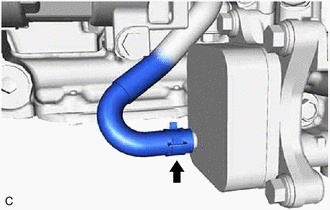

Slide the clip and disconnect the No. 5 water by-pass hose from the oil cooler assembly.

REMOVE OIL FILTER BRACKET SUB-ASSEMBLY

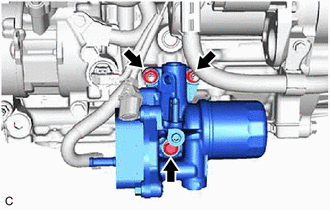

Remove the 2 nuts, bolt and oil filter bracket sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

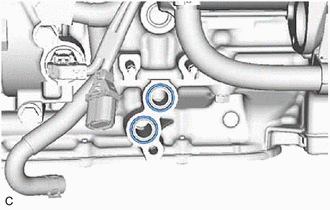

Remove the 2 O-rings from the oil pan sub-assembly.

REMOVE OIL COOLER ASSEMBLY

Remove the 4 bolts and oil cooler assembly from the oil filter bracket sub-assembly.

Remove the 3 oil cooler gaskets from the oil cooler assembly.
