Removal [09/2022 - 11/2022]: Procedure

WARNING: This page is about a different car, the 2022 Toyota Corolla, 2021 Toyota Corolla, 2020 Toyota Corolla, and 2019 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. SECURE VEHICLE
    1. Fully apply the parking brake and chock a wheel.
      WARNING:
      • Make sure to apply the parking brake and chock a wheel before performing this procedure.
        GTY655852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.
  2. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [09/2022 - ]

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  4. REMOVE RADIATOR SUPPORT OPENING COVER

    Refer to PROCEDURE - Step 1

  5. REMOVE INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 4

  6. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 2

  7. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  8. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  9. REMOVE ECM

    Refer to PROCEDURE - Step 8

  10. REMOVE BATTERY

    Refer to REMOVAL [09/2022 - 11/2022]

  11. DISCONNECT ENGINE WIRE
    1. Remove the bolt and nut to disconnect the engine wire from the battery clamp sub-assembly.
      GTY842903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE BATTERY CLAMP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16

  13. DISCONNECT FLOOR SHIFT TRANSMISSION CONTROL SELECT CABLE
    1. Move the shift lever to N.
    2. Remove the nut and disconnect the floor shift transmission control select cable from the control shaft lever.
      GTY490786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the clip and disconnect the floor shift transmission control select cable from the No. 1 transmission control cable bracket.
  14. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

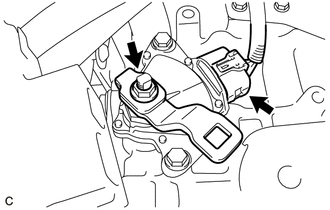

    1. Disconnect the park/neutral position switch assembly connector.
      GTY424316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut, washer and control shaft lever from the park/neutral position switch assembly.

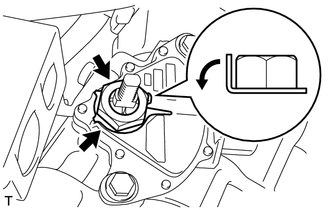

    3. Using a screwdriver, bend back the tabs of the lock plate.
      GTY453199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the lock nut and lock plate from the park/neutral position switch assembly.

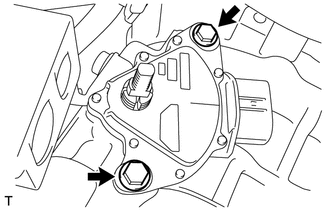

    5. Remove the 2 bolts and park/neutral position switch assembly from the continuously variable transaxle assembly.
      GTY436637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
