Removal [09/2022 - 11/2022]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [09/2022 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    1. Loosen the nut and disconnect the cable from the negative (-) battery terminal.

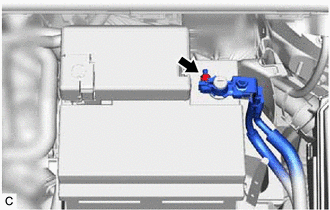

      GTY868631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE BATTERY
    1. Disengage the 2 claws to remove the fusible link cover.

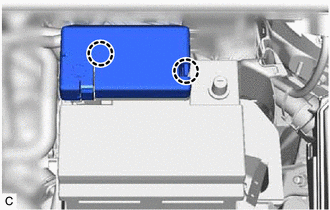

      GTY868629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen the nut.

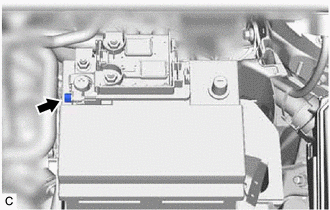

      GTY868630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the spring assembly and disconnect the cable from the positive (+) battery terminal.

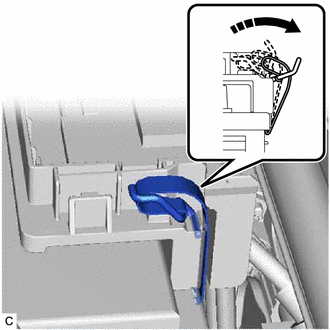

      GTY918809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    4. Remove the bolt.

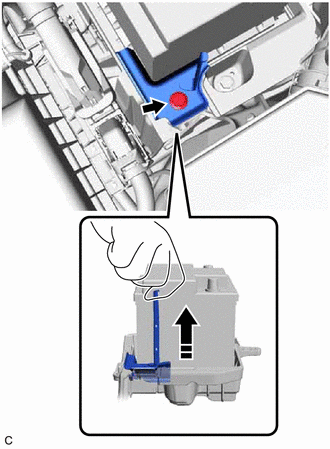

      GTY942997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    5. Remove the No. 2 battery clamp as shown in the illustration.
    6. Remove the battery from the vehicle.
