Removal [09/2023 - ]: Procedure
- PRECAUTION
Refer to PRECAUTION [12/2022 - ] - SECURE VEHICLE
Refer to PROCEDURE - Step 1 - STEERING WHEEL POSITION
Refer to PROCEDURE - Step 1 - REMOVE BATTERY SERVICE HOLE COVER ASSEMBLY (for M20A-FXS)
Refer to PROCEDURE - Step 2 - DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
- for M20A-FXS:
Refer to PROCEDURE - Step 3
- for 2ZR-FXE:
Refer to PROCEDURE - Step 2
- for M20A-FXS:
- REMOVE REAR CONSOLE BOX ASSEMBLY
Refer to REMOVAL [03/2023 - ]

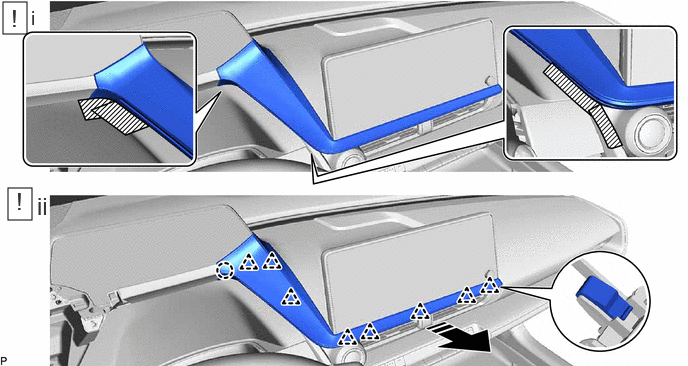

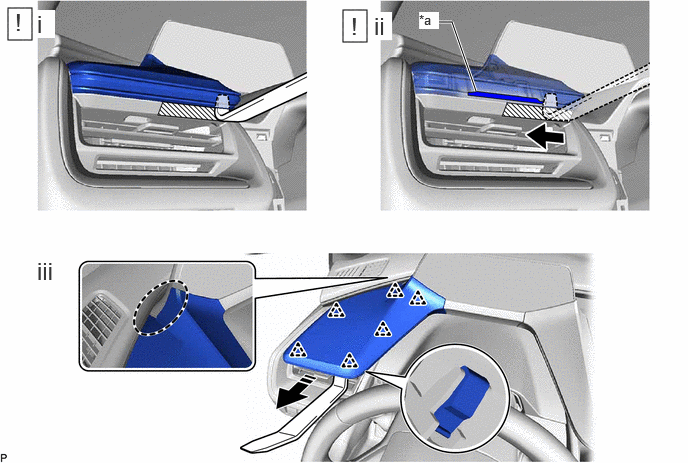

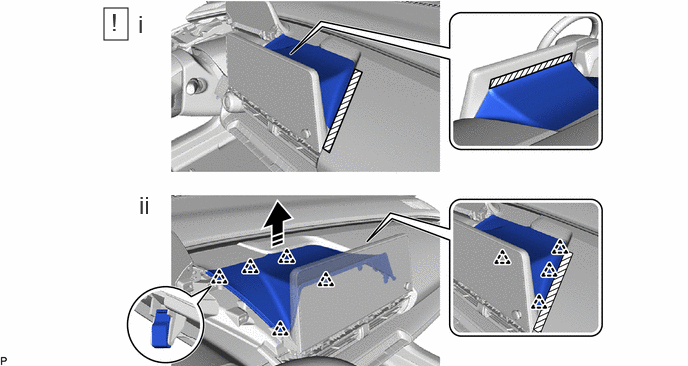

- REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

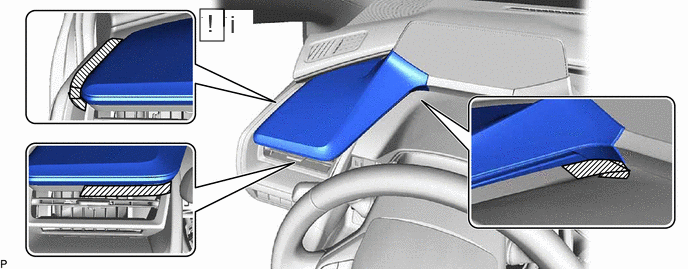

- Apply protective tape to the area shown in the illustration.
*a Rib - - Place Hand Here Remove in this Direction - Insert a moulding remover as shown in the illustration.
- Move the moulding remover until it contacts the rib.
- Disengage the 6 clips as shown in the illustration to remove the instrument cluster finish panel assembly.
- REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
- REMOVE CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL

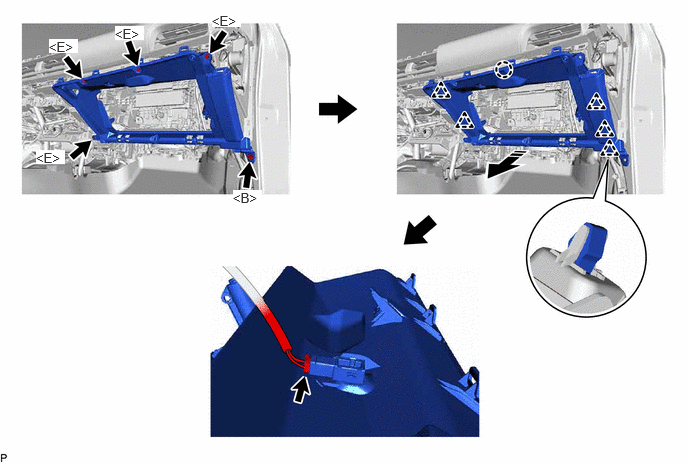

- REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET
Refer to PROCEDURE - Step 4 - REMOVE COMBINATION METER SUB-ASSEMBLY
Refer to PROCEDURE - Step 3

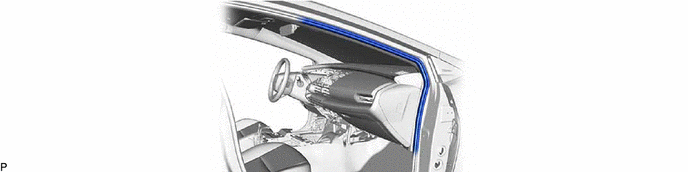

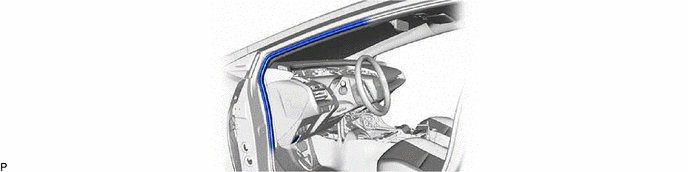

- DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

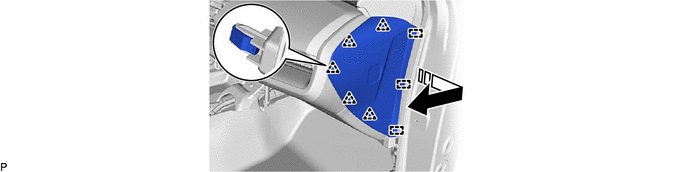

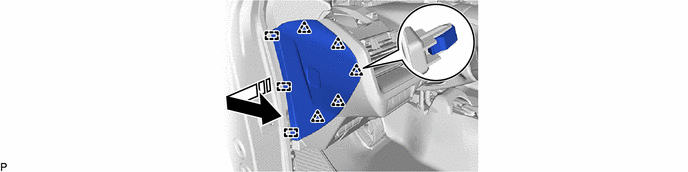

- REMOVE INSTRUMENT SIDE PANEL LH
- REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
HINT:
The illustration shown is an example only. The illustration may differ from the actual parts according to the model.
- REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY (w/ Knee Airbag)
Refer to PROCEDURE - Step 8 - REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
HINT:
The illustration shown is an example only. The illustration may differ from the actual parts according to the model.

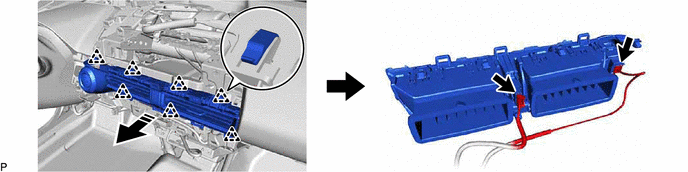

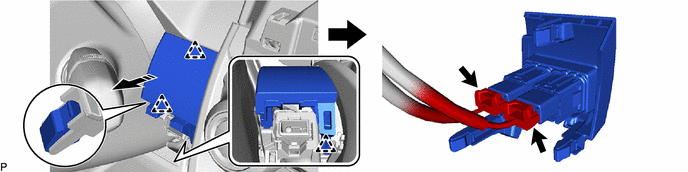

- REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
- REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
HINT:
The illustration shown is an example only. The illustration may differ from the actual parts according to the model.
- DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH
- REMOVE INSTRUMENT SIDE PANEL RH

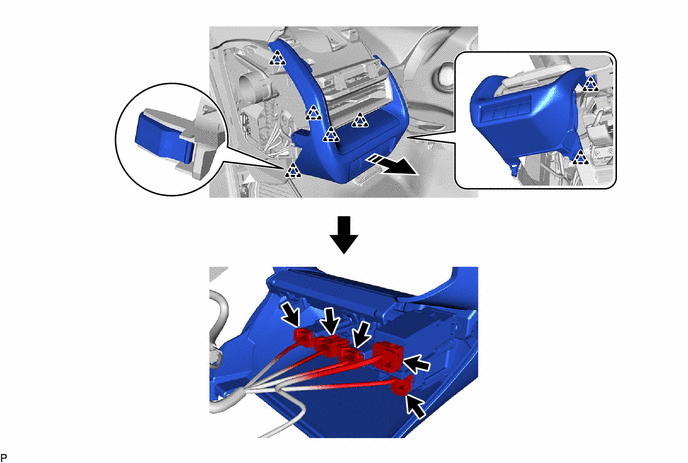

- REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY
HINT:
The illustration shown is an example only. The illustration may differ from the actual parts according to the model.
- REMOVE FRONT DOOR SCUFF PLATE RH
- Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 10
- Use the same procedure as for the LH side.
- REMOVE COWL SIDE TRIM BOARD RH
- Use the same procedure as for the LH side.
Refer to PROCEDURE - Step 11
- Use the same procedure as for the LH side.
- REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

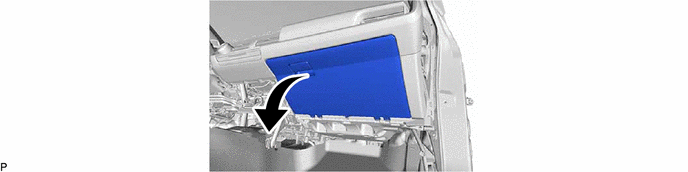

- REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

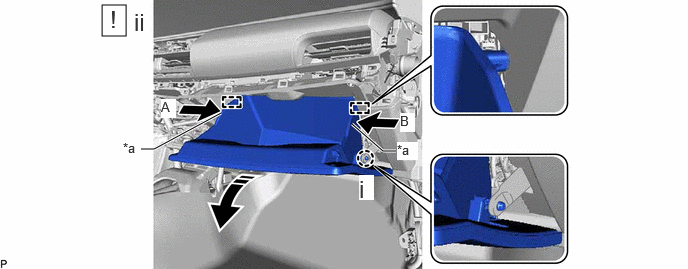

*a Push Mark Location - - Remove in this Direction - - - Disengage the claw to disconnect the glove compartment door stopper sub-assembly.
- Push the push mark locations (A) and (B) in the directions of the arrows shown in the illustration and pull the glove compartment door assembly until the 2 stoppers are released.

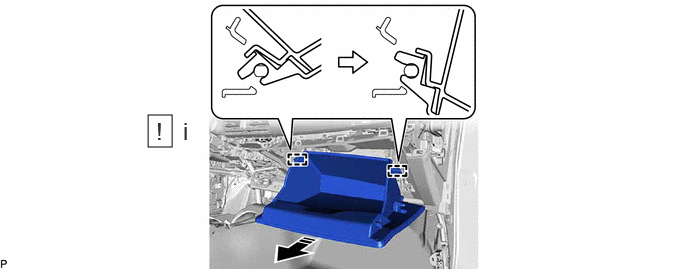

Remove in this Direction - - - Open the glove compartment door assembly to approximately 52° from its closed position. Pull it horizontally in the direction indicated by the arrow shown in the illustration to disengage the 2 hinges and remove the glove compartment door assembly.NOTE:
Pulling the glove compartment door assembly upward when removing it will cause the hinges to deform. Be sure to pull out the glove compartment door assembly horizontally.
- Open the glove compartment door assembly to approximately 52° from its closed position. Pull it horizontally in the direction indicated by the arrow shown in the illustration to disengage the 2 hinges and remove the glove compartment door assembly.

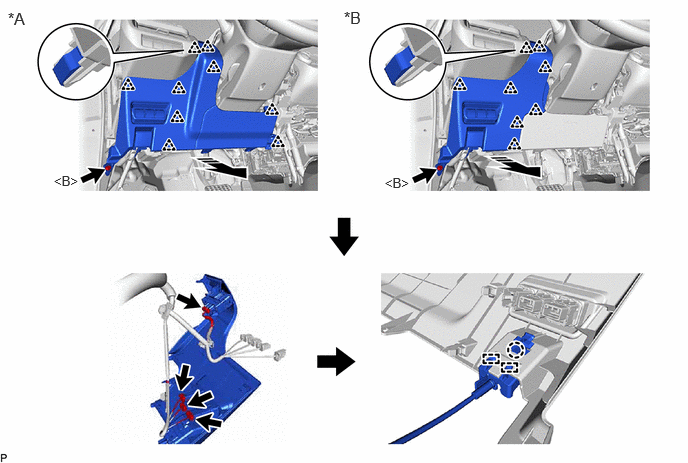

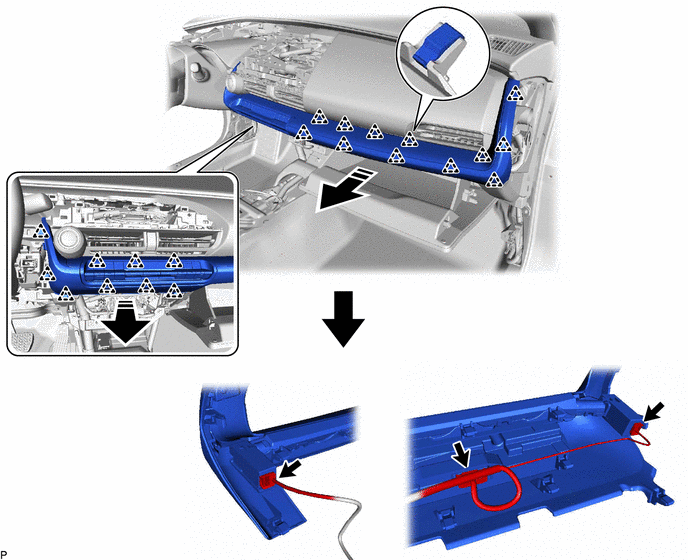

- REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

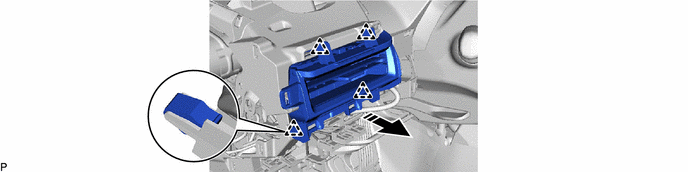

- REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

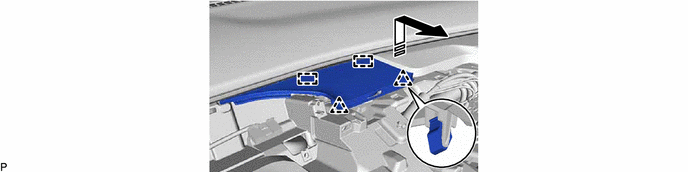

- REMOVE INSTRUMENT CLUSTER FINISH PANEL COVER
- REMOVE FRONT PILLAR GARNISH LH

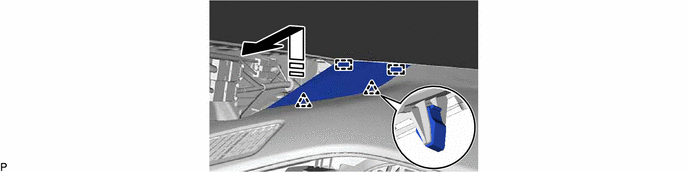

Refer to PROCEDURE - Step 13 - REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL
- REMOVE FRONT PILLAR GARNISH RH
- Use the same procedure as for the LH side.

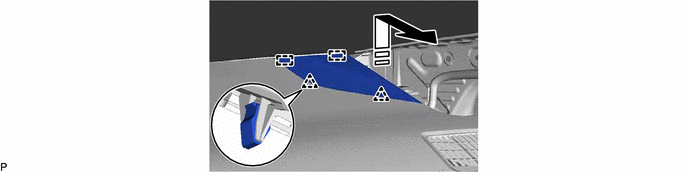

- REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL
- REMOVE FRONT NO. 3 SPEAKER ASSEMBLY
- Use the same procedure as for the LH side and RH side.
Refer to PROCEDURE - Step 4
- Use the same procedure as for the LH side and RH side.
- REMOVE NO. 3 STEERING WHEEL LOWER COVER
Refer to PROCEDURE - Step 2 - REMOVE NO. 2 STEERING WHEEL LOWER COVER
- Use the same procedure as for the No. 3 steering wheel lower cover.
- REMOVE LOWER STEERING COLUMN COVER
Refer to PROCEDURE - Step 4 - REMOVE UPPER STEERING COLUMN COVER
Refer to PROCEDURE - Step 5 - REMOVE TURN SIGNAL SWITCH
Refer to PROCEDURE - Step 6 - REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

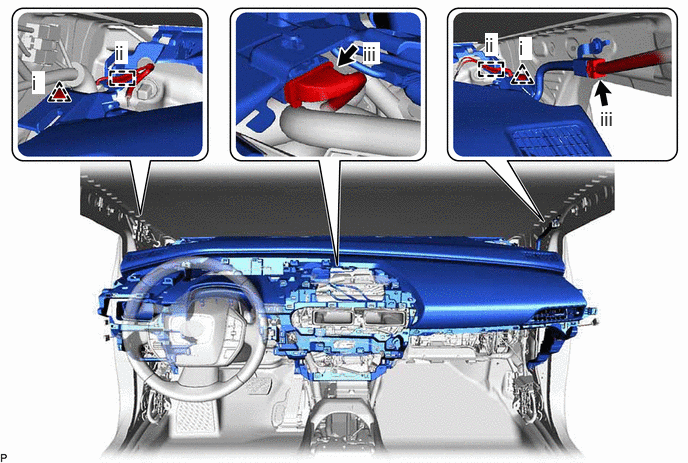

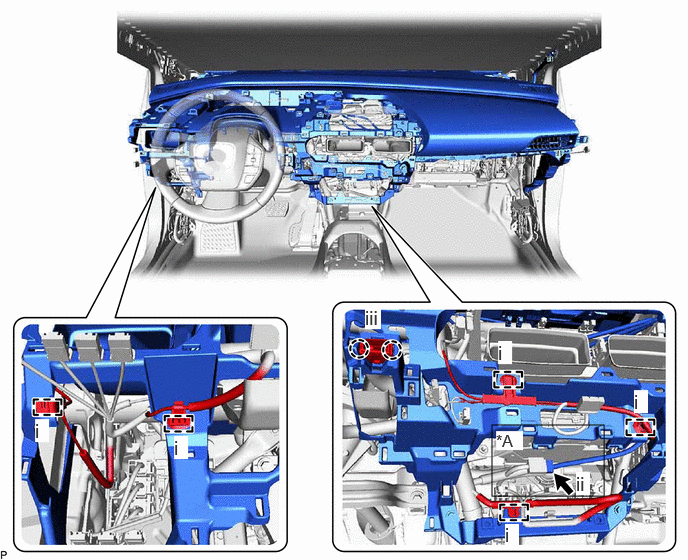

Refer to PROCEDURE - Step 6 - REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
- Remove the 2 clips.
- Disengage the 2 clamps.
- Disconnect the 2 connectors.

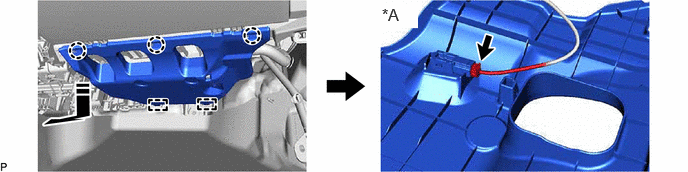

*A w/ Telematics Transceiver - - - Disengage the 5 clamps.
- w/ Telematics Transceiver:
1. Disconnect the connector.
- Disengage the 2 claws to disconnect the cooler (room temp. sensor) thermistor.

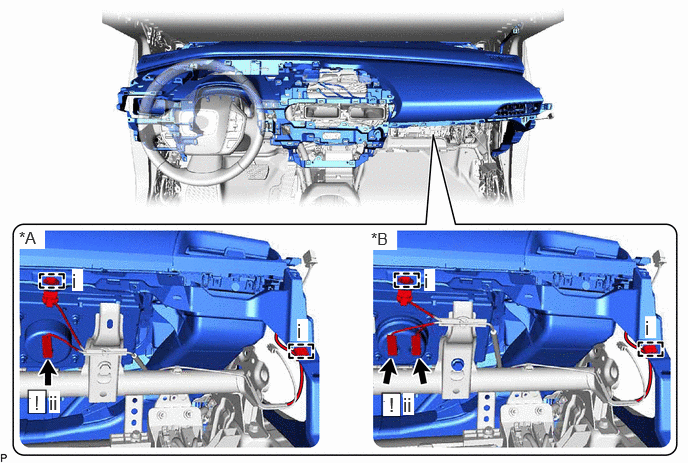

*A for Type A *B for Type B - Disengage the 2 clamps.
- Disconnect each airbag connector.
HINT:
Refer to How to Connect or Disconnect Airbag Connector.
Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [12/2022 - ]

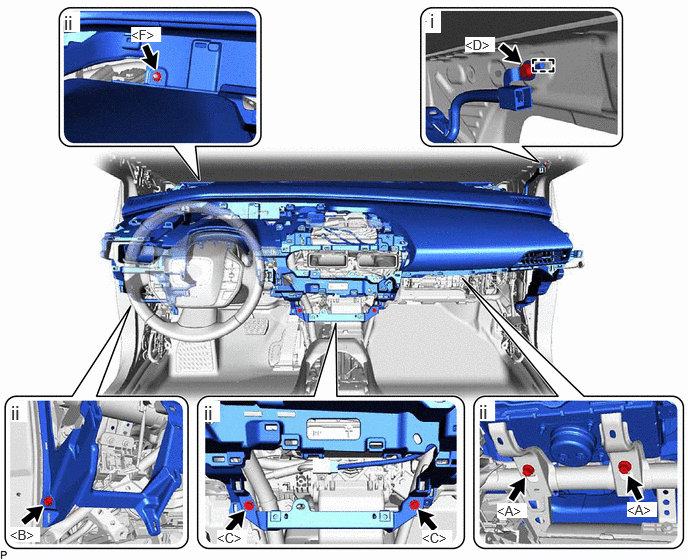

- Remove the bolt <D> and disengage the guide.
- Remove the 2 bolts <A>, bolt <B>, 2 screws <C> and nut <F>.

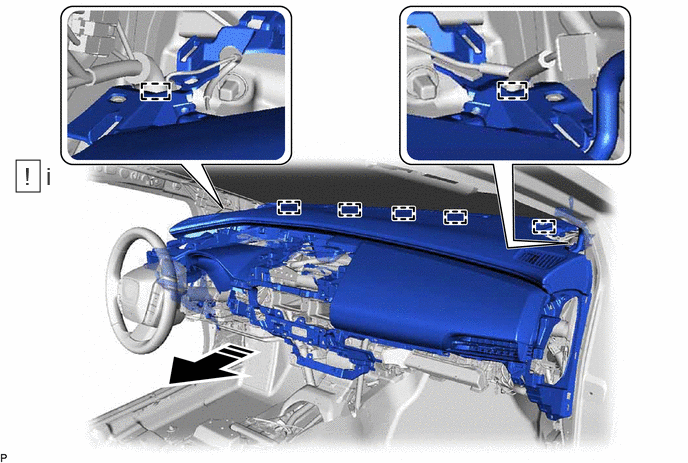

Remove in this Direction - - - Disengage the 5 guides and 2 clamps as shown in the illustration to remove the instrument panel safety pad sub-assembly.NOTE:
- Do not damage the instrument panel safety pad sub-assembly.
- Do not allow the wire harnesses to interfere with the surrounding parts.
- Disengage the 5 guides and 2 clamps as shown in the illustration to remove the instrument panel safety pad sub-assembly.

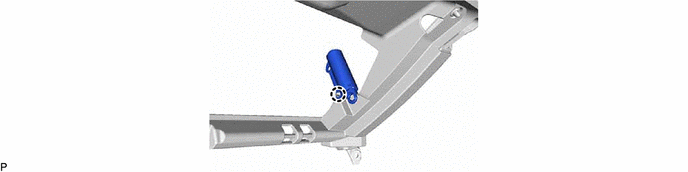

- REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
HINT:
Perform this procedure only when replacement of the glove compartment door stopper sub-assembly is necessary.
