Removal [12/2022 - ]: Procedure
- PRECAUTION
Refer to PRECAUTION [12/2022 - ] - REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
Refer to PROCEDURE - Step 8 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 8 [03/2023 - 09/2023] , or refer to PROCEDURE - Step 8 [09/2023 - ] - REMOVE CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL
Refer to PROCEDURE - Step 9 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 9 [03/2023 - 09/2023] , or refer to PROCEDURE - Step 9 [09/2023 - ] - REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET
HINT:
The illustration shown is an example only. The illustration may differ from the actual parts according to the model.

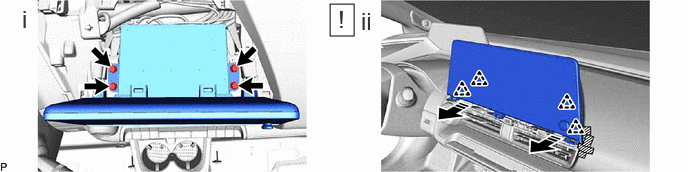

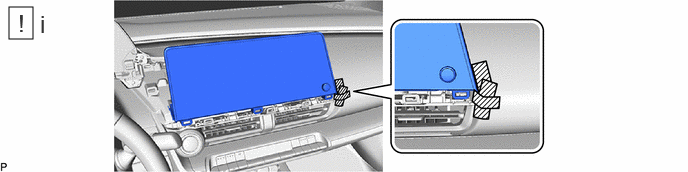

- Apply protective tape to the area shown in the illustration.
Remove in this Direction - - - Remove the 4 bolts.

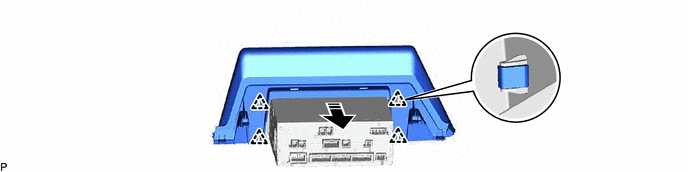

- Disengage the 4 clips to separate the radio and display receiver assembly with bracket as shown in the illustration.NOTE:
As individually disengaging the left and right clips may damage the instrument panel safety pad sub-assembly, make sure to simultaneously disengage the 4 left and right clips.
- Disengage each clamp.

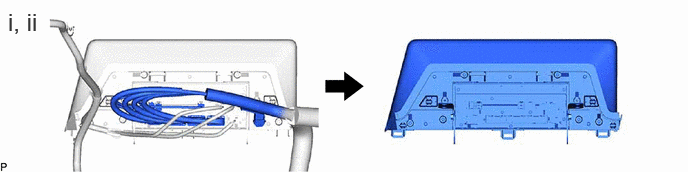

- Disconnect each connector to remove the radio and display receiver assembly with bracket.

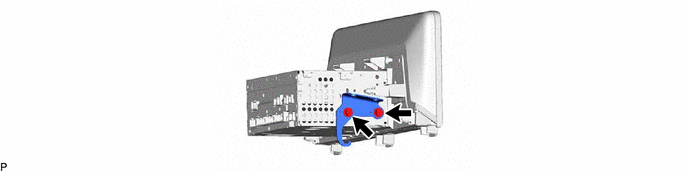

- REMOVE NO. 1 RADIO RECEIVER BRACKET

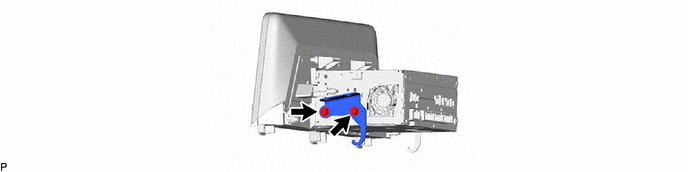

- REMOVE NO. 2 RADIO RECEIVER BRACKET

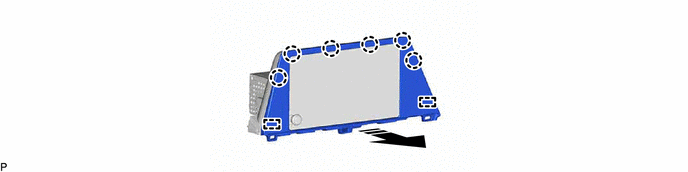

- REMOVE RADIO TUNER FINISH PANEL (for 8 Inch Display)
- REMOVE NO. 3 INSTRUMENT PANEL FINISH PANEL RETAINER (for 8 Inch Display)
