Removal [12/2022 - ]: Procedure

  1. STEERING WHEEL POSITION
    Refer to PROCEDURE - Step 1 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 1 [03/2023 - ]
  2. REMOVE NO. 3 STEERING WHEEL LOWER COVER
    Refer to PROCEDURE - Step 2 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 2 [03/2023 - ]
  3. REMOVE NO. 2 STEERING WHEEL LOWER COVER
    1. Use the same procedure as for the No. 3 steering wheel lower cover.
  4. REMOVE LOWER STEERING COLUMN COVER
    Refer to PROCEDURE - Step 4 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 4 [03/2023 - ]
  5. REMOVE UPPER STEERING COLUMN COVER

    Refer to PROCEDURE - Step 5 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 5 [03/2023 - ]

  6. REMOVE TURN SIGNAL SWITCH

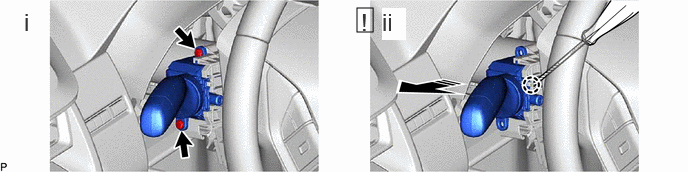

    1. GTY1146497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Remove the 2 screws.
      2. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the turn signal switch as shown in the illustration.
        NOTE:

        If the claw is pulled with excessive force, it may break.
