Removal [12/2022 - ]: Procedure

  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
    Refer to PROCEDURE - Step 7 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 7 [03/2023 - 09/2023] , or refer to PROCEDURE - Step 7 [09/2023 - ]
  2. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
    Refer to PROCEDURE - Step 8 [12/2022 - 03/2023] , or refer to PROCEDURE - Step 8 [03/2023 - 09/2023] , or refer to PROCEDURE - Step 8 [09/2023 - ]
  3. REMOVE COMBINATION METER SUB-ASSEMBLY

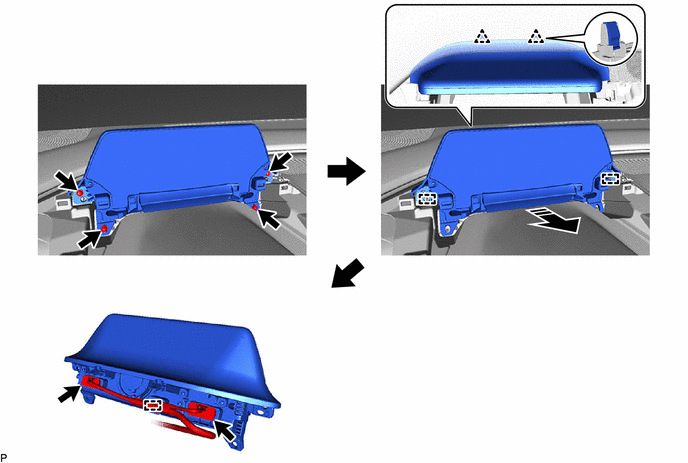

    1. GTY1143869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  4. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL
    1. GTY1150122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
