Removal [09/2021 - 11/2022]: Procedure

Refer to REMOVAL [09/2021 - 11/2022]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

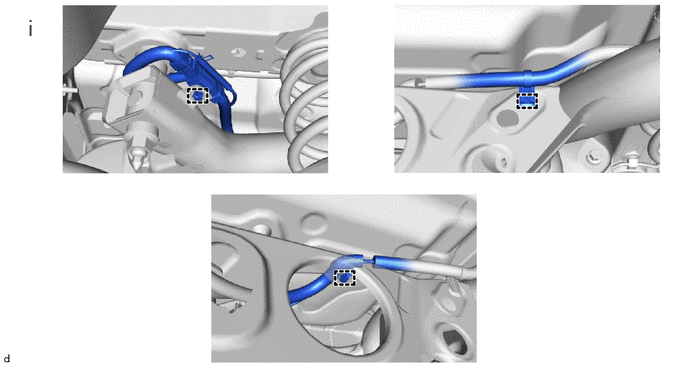

   1. Disengage the 3 clamps to separate the differential carrier wire harness.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

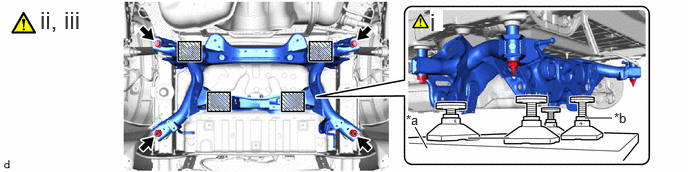

   *a	Engine Lifter	*b	Attachment
   	Attachment and Wooden Block Placement Location	-	-

   1. Using an engine lifter and 4 attachments or equivalent tools, support the rear suspension member sub-assembly as shown in the illustration.
      WARNING:

      • The rear suspension member sub-assembly is a very heavy component.

        Make sure that it is supported securely.

      • If the rear suspension member sub-assembly is not securely supported, it may drop, resulting in serious injury.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

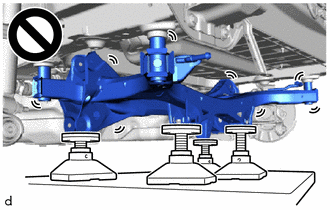

      NOTE:

      Use attachments and wooden blocks to keep the rear suspension member sub-assembly level.

   2. Remove the 2 bolts and 2 nuts.
   3. Slowly lower the rear suspension member sub-assembly.
      WARNING:

      When lowering the rear suspension member sub-assembly, be careful not to damage the vehicle body or other components installed to the vehicle.

1. Perform the same procedure as for the LH side.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
