Removal [09/2021 - 11/2022]: Procedure

  1. REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY

    Refer to REMOVAL [09/2021 - 11/2022]

  2. REMOVE REAR UPPER CONTROL ARM ASSEMBLY

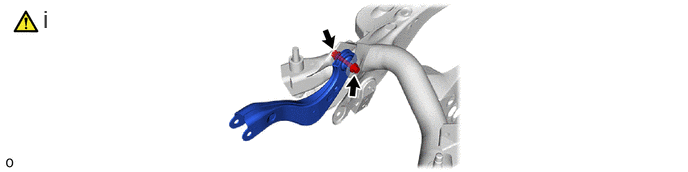

    1. GTY1034097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the bolt, nut and rear upper control arm assembly from the rear suspension member sub-assembly.
        NOTE:

        Loosen the bolt with the nut secured.
