Removal [09/2021 - 11/2022]: Procedure

Refer to REMOVAL [09/2021 - ]

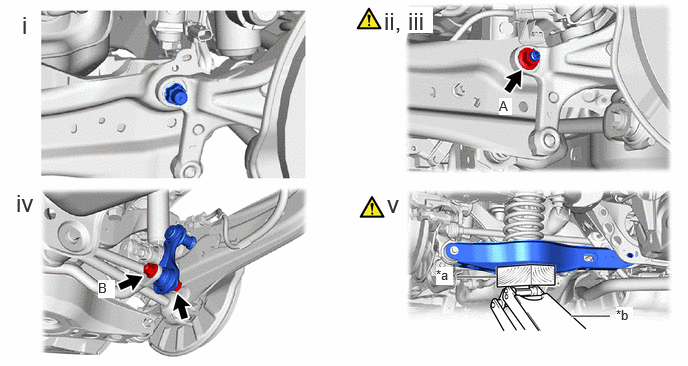

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Wooden Block

   *b

   Jack

   1. Remove the cap.
   2. Loosen the nut (A) of the rear stabilizer link assembly LH.
   3. If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.
   4. Loosen the nut (B) of the rear stabilizer link assembly LH.
   5. Using a jack and a wooden block, support the rear No. 2 suspension arm assembly.
      NOTE:

      • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
      • Make sure to perform this operation with the vehicle kept as low as possible.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

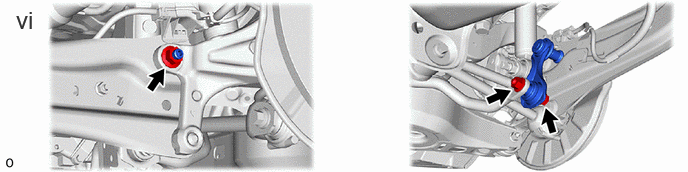

   6. Remove the bolt, 2 nuts and rear stabilizer link assembly LH.

1. Perform the same procedure as for the LH side.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
