Removal [09/2021 - 11/2022]: Procedure
- REMOVE REAR DIFFERENTIAL CARRIER ASSEMBLY
Refer to REMOVAL [09/2021 - 11/2022]
- REMOVE CHARCOAL CANISTER ASSEMBLY
Refer to REMOVAL [09/2021 - 11/2022]
- REMOVE REAR NO. 1 DIFFERENTIAL MOUNT CUSHION

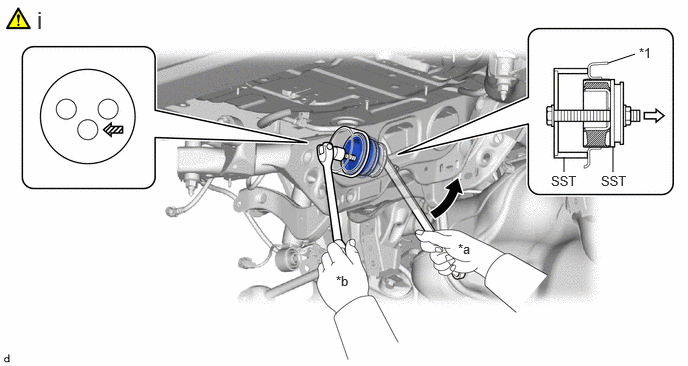

*1 Rear Suspension Member Sub-assembly - - *a Turn *b Hold Front of Vehicle SST Bolt Position - Using SST, remove the rear No. 1 differential mount cushion from the rear suspension member sub-assembly.
- SST: 09316-20011
- SST: 09570-24011
NOTE:- Do not bring SST (09316-20011) into contact with the rear suspension member sub-assembly.
- Before using SST, apply grease to SST bolt.
- Be sure to use the correct combination of SST.
- Make sure that SST contacts the entire circumference of the rear No. 1 differential mount cushion.
- Do not tilt the bolt of SST.
- Using SST, remove the rear No. 1 differential mount cushion from the rear suspension member sub-assembly.
