Removal [10/2022 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [10/2022 - ]

  2. CHANGE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTINGS

    Refer to PROCEDURE - Step 2

  3. REMOVE REAR NO. 2 FLOOR BOARD

    Refer to PROCEDURE - Step 2

  4. REMOVE BATTERY HOLE COVER

    Refer to PROCEDURE - Step 6

  5. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 4

  6. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 12

  7. REMOVE NO. 2 INSTRUMENT SIDE PANEL

    Refer to PROCEDURE - Step 13

  8. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH

    Refer to PROCEDURE - Step 20

  9. REMOVE UPPER CONSOLE COVER

    Refer to PROCEDURE - Step 5

  10. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

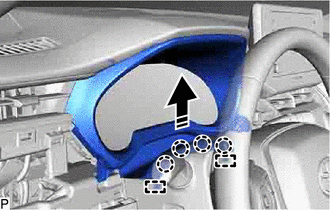

    1. Disengage the 4 claws and 2 guides as shown in the illustration.
      GTY988451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

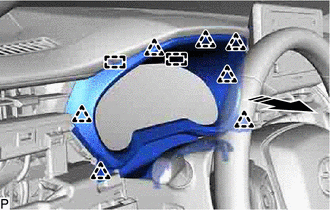

    2. Disengage the 7 clips and 2 guides as shown in the illustration to remove the instrument cluster finish panel assembly.
      GTY988236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  11. REMOVE COMBINATION METER ASSEMBLY

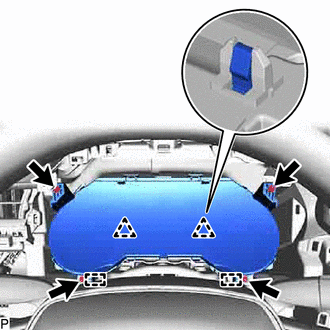

    1. Remove the 4 screws.
      GTY987486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

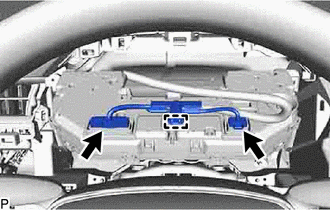

    2. Disengage the 2 clips and 2 pins.
    3. Disengage the clamp.
      GTY987487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the 2 connectors to remove the combination meter assembly.
