Removal [10/2022 - ]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY

    For Manual Seat:

    Refer to REMOVAL [10/2022 - ]

    For Power Seat:

    Refer to REMOVAL [10/2022 - ]

  2. REMOVE TONNEAU COVER ASSEMBLY
    1. Remove the tonneau cover assembly.

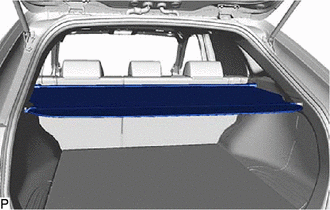

      GTY1008358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE DECK BOARD ASSEMBLY
    1. Remove the deck board assembly.

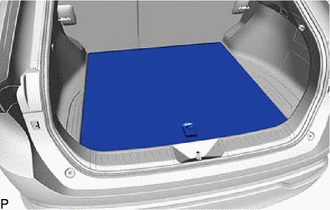

      GTY1012190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE REAR NO. 2 FLOOR BOARD
    1. Disengage the 3 clips to remove the rear No. 2 floor board.

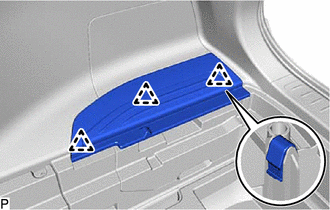

      GTY1012191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR NO. 3 FLOOR BOARD
    1. Disengage the 3 clips to remove the rear No. 3 floor board.

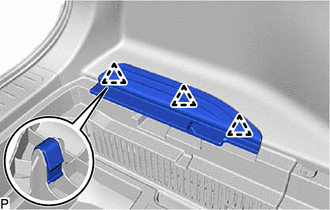

      GTY1012187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

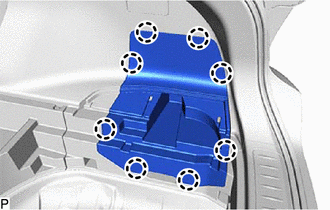

  6. REMOVE BATTERY HOLE COVER
    1. Disengage the 8 claws to remove the battery hole cover.
      GTY1013202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE SPARE WHEEL COVER STOPPER
    1. Remove the spare wheel cover stopper.

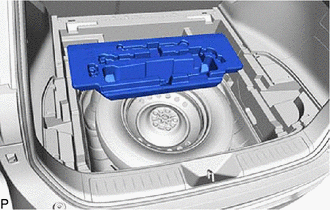

      GTY1012185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR SEAT ASSEMBLY

    Refer to REMOVAL [07/2020 - ]

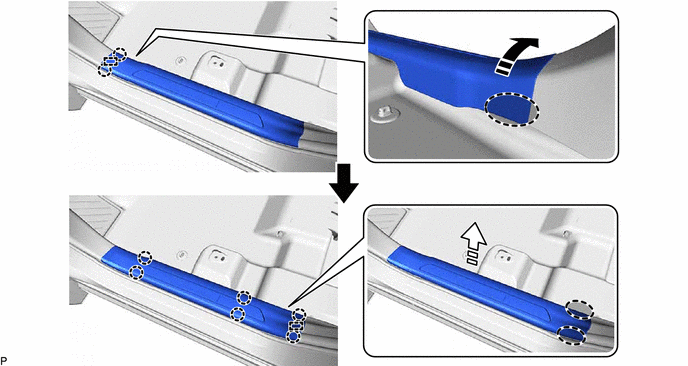

  9. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Disengage the 2 claws and guide as shown in the illustration.
      GTY1012472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction (1)
      Remove in this Direction (2) - -
    2. Disengage the 6 claws and guide as shown in the illustration to remove the front door scuff plate LH.
    3. w/ Illumination:
      1. Disconnect the connector.
  10. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  11. REMOVE COWL SIDE TRIM BOARD LH
    1. Remove the clip.

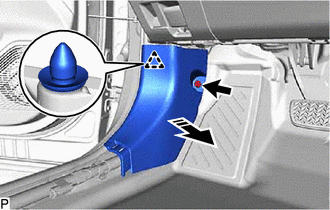

      GTY1012836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the clip to remove the cowl side trim board LH as shown in the illustration.
  12. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedure as for the LH side.

  13. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 3

  14. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

  15. REMOVE FRONT PILLAR GARNISH LH

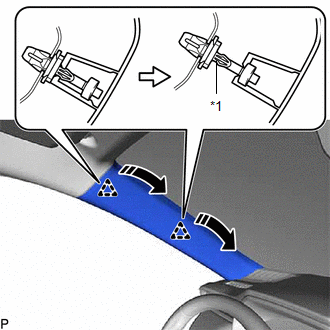

    1. Pull the upper part of the front pillar garnish LH toward the inside of the cabin as shown in the illustration to disengage the front pillar garnish LH from the base of the 2 front pillar garnish clips.

      HINT:

      Let the front pillar garnish LH hang from the 2 front pillar garnish clips.

      GTY1013671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Pillar Garnish Clip
      Remove in this Direction

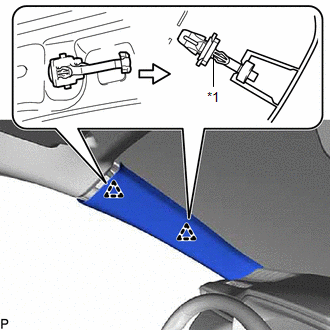

    2. While pushing the tabs of the 2 front pillar garnish clips as shown in the illustration, disengage it.
      GTY1014406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Pillar Garnish Clip

      HINT:

      When the front pillar garnish clips cannot be disengaged easily:

      1. While pushing the tab of the front pillar garnish clip shown in the illustration with your finger, move the front pillar garnish clip in the direction shown in the illustration.

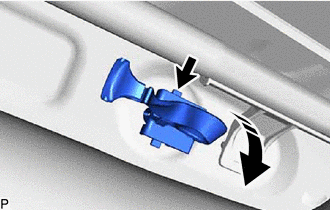

        GTY1012012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Move in this Direction

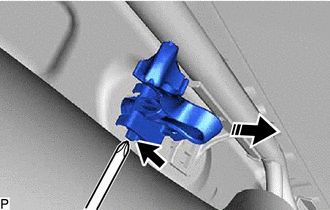

      2. While pulling the front pillar garnish clip as shown in the illustration, push the tab of the front pillar garnish clip shown in the illustration with a screwdriver and disengage the front pillar garnish clip.
        GTY1012709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Pull in this Direction
    3. Disengage the 2 guides to remove the front pillar garnish LH as shown in the illustration.

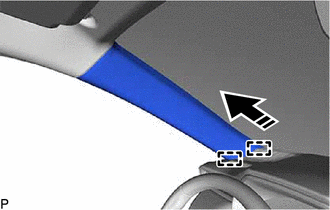

      GTY1014033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    4. w/ Front No. 3 Speaker:
      1. Disconnect the connector.
    5. Protect the curtain shield airbag assembly LH.

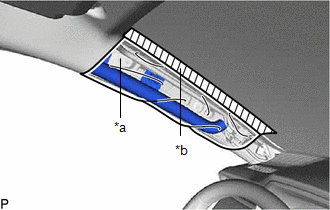

      GTY1012689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Cover
      *b Adhesive Tape
      1. Cover the curtain shield airbag assembly LH with a protective cover, such as a cloth, and secure the edges of the cover with tape as shown in the illustration.
        NOTE:

        Cover the curtain shield airbag assembly LH with a protective cover as soon as the front pillar garnish LH is removed.

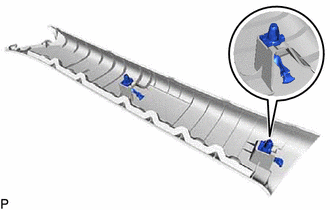

    6. Remove the 2 front pillar garnish clips from the front pillar garnish LH.
      GTY1013199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  17. REMOVE REAR DOOR SCUFF PLATE LH
    1. Disengage the 2 claws and guide as shown in the illustration.

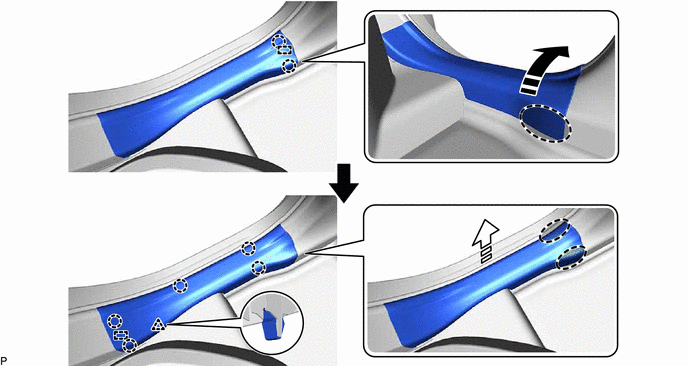

      GTY1013043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction (1)
      Remove in this Direction (2) - -
    2. Disengage the 5 claws, clip and guide as shown in the illustration to remove the rear door scuff plate LH.
  18. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  19. REMOVE NO. 2 BATTERY SERVICE COVER BOARD
    1. Using a clip remover, remove the 2 clips.

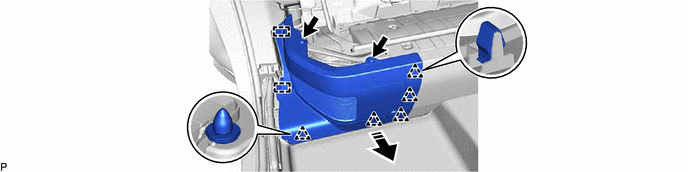

      GTY1007725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
    2. Disengage the 5 clips and 2 guides to remove the No. 2 battery service cover board as shown in the illustration.
  20. REMOVE NO. 3 BATTERY SERVICE COVER BOARD
    1. Using a clip remover, remove the 2 clips.

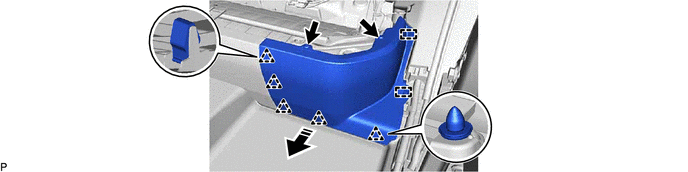

      GTY1008711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
    2. Disengage the 5 clips and 2 guides to remove the No. 3 battery service cover board as shown in the illustration.
  21. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 2

  22. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH

    HINT:

    Use the same procedure as for the LH side.

  23. REMOVE LAP BELT OUTER ANCHOR COVER (for LH Side)

    Refer to PROCEDURE - Step 7

  24. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 8

  25. REMOVE LAP BELT OUTER ANCHOR COVER (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  26. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  27. REMOVE CENTER PILLAR LOWER GARNISH LH
    1. Disengage the 2 claws as shown in the illustration.

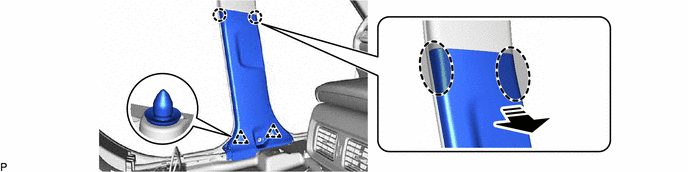

      GTY1012541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
    2. Disengage the 2 clips to remove the center pillar lower garnish LH.
  28. REMOVE CENTER PILLAR LOWER GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

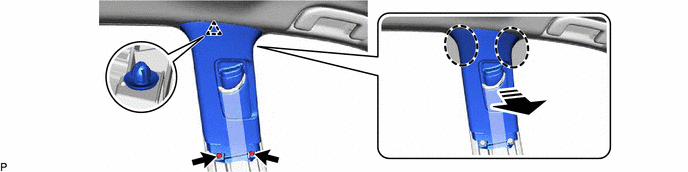

  29. REMOVE CENTER PILLAR GARNISH ASSEMBLY LH
    1. Remove the 2 clips.
      GTY1012899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
    2. Disengage the clip as shown in the illustration.
    3. Pass the anchor of the front seat outer belt assembly LH through the center pillar garnish assembly LH to remove it.
    4. Remove the clip from the center pillar garnish assembly LH.

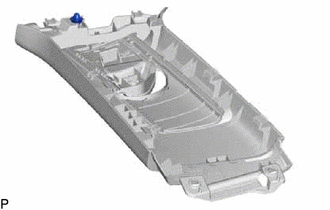

      GTY1012174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE CENTER PILLAR GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

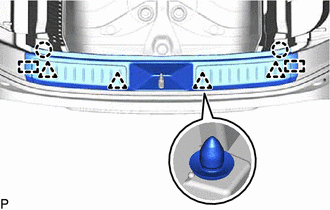

  31. REMOVE REAR FLOOR FINISH PLATE
    1. Disengage the 2 claws, 2 guides and 4 clips to remove the rear floor finish plate.
      GTY1012172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

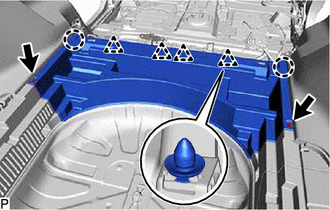

  32. REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE
    1. Remove the 2 screws.
      GTY1012163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and 4 clips to remove the rear No. 1 floor mat support side plate.
  33. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 11

  34. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  35. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY LH
    1. Remove the 2 bolts and rear seatback hinge sub-assembly LH.

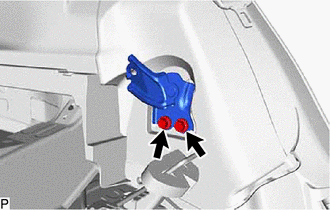

      GTY1012160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  37. REMOVE REAR SEAT SIDE GARNISH LH
    1. Disengage the claw as shown in the illustration.

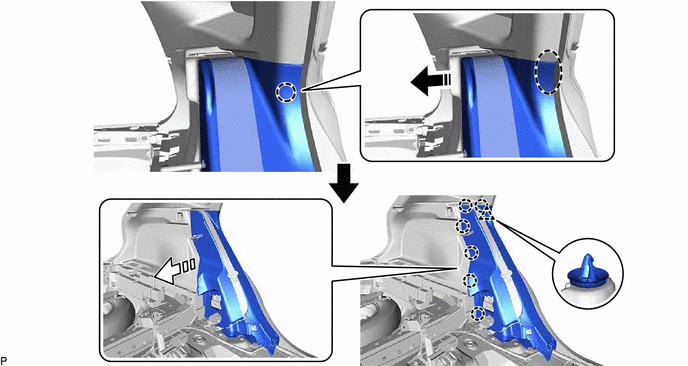

      GTY1012613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
      Place Hand Here - -
    2. Disengage the clip and 6 claws to remove the rear seat side garnish LH as shown in the illustration.
  38. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  39. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  40. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
    1. Remove the screw and clip.

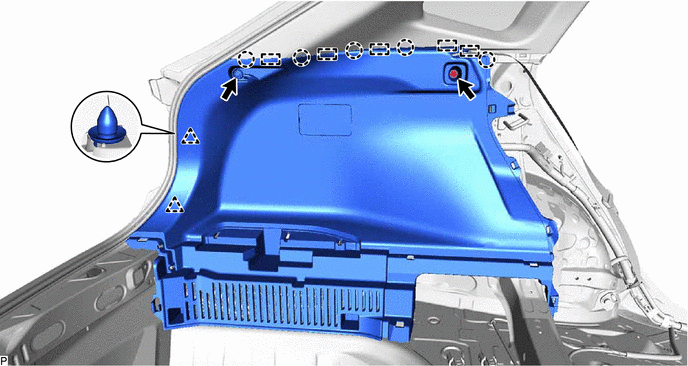

      GTY1008553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 5 claws, 2 clips and 5 guides to remove the deck trim side panel assembly LH.
  41. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

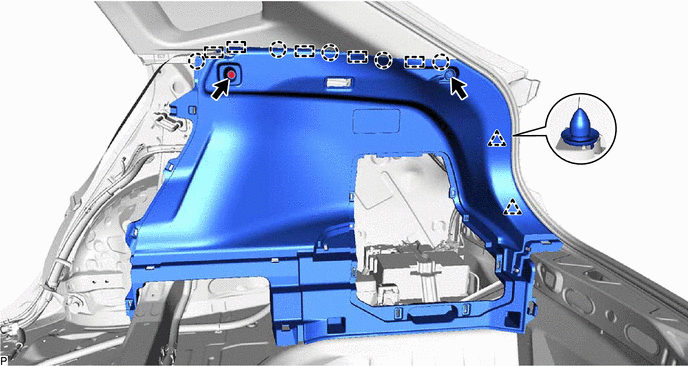

    1. Remove the screw and clip.
      GTY1007528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 5 claws, 2 clips and 5 guides to remove the deck trim side panel assembly RH.

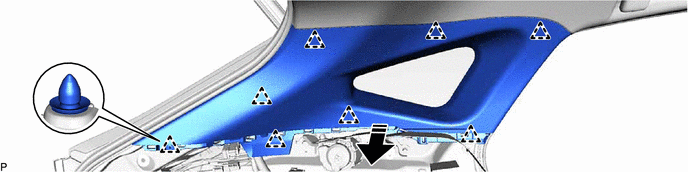

  42. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
    1. Disengage the 8 clips as shown in the illustration to remove the roof side inner garnish assembly LH.
      GTY1013620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
    2. Remove the 8 clips from the roof side inner garnish assembly LH.
      GTY1012167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  44. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY

    Refer to REMOVAL [07/2020 - ]

  45. REMOVE NO. 2 CONSOLE BOX MOUNTING BRACKET

    Refer to PROCEDURE - Step 5

  46. REMOVE VISOR BRACKET COVER LH

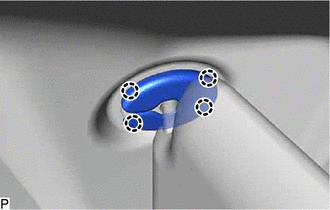

    1. Using a moulding remover, disengage the 4 claws and remove the visor bracket cover LH.
      GTY1012164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

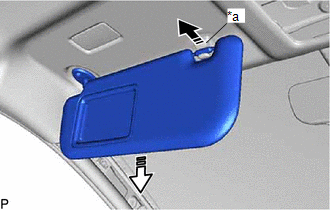

  47. REMOVE VISOR ASSEMBLY LH
    1. Remove the 2 screws.
    2. Pull the visor assembly LH in the direction indicated by the arrow (1) shown in the illustration to disconnect it from the visor holder.
      GTY1013444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Visor Holder
      Remove in this Direction (1)
      Remove in this Direction (2)
    3. Pull the visor assembly LH in the direction indicated by the arrow (2) shown in the illustration to remove it.
  48. REMOVE VISOR BRACKET COVER RH

    HINT:

    Use the same procedure as for the LH side.

  49. REMOVE VISOR ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  50. REMOVE VISOR HOLDER
    1. Turn the visor holder approximately 45° and remove it as indicated by the arrows, in the order shown in the illustration.

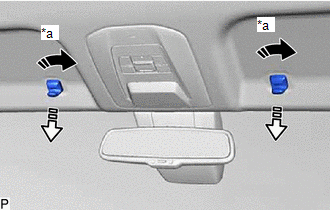

      GTY1014831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 45°
      Remove in this Direction (1)
      Remove in this Direction (2)

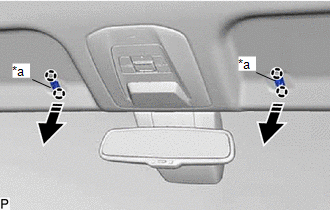

    2. Disengage the 4 claws as shown in the illustration to remove the base of each visor holder.
      GTY1014627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Base of Visor Holder
      Remove in this Direction
  51. REMOVE ASSIST GRIP ASSEMBLY

    HINT:

    Use the same procedure for all assist grip assemblies.

    1. Insert SST into the cutout of the assist grip cover as shown in the illustration.

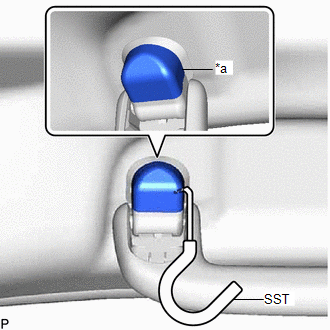

      GTY1014699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cutout
      • SST: 09813-00010
      NOTE:

      To prevent the assist grip assembly from being damaged, make sure to insert SST straight into the cutout.

      HINT:

      Use the same procedure for the LH side and RH side.

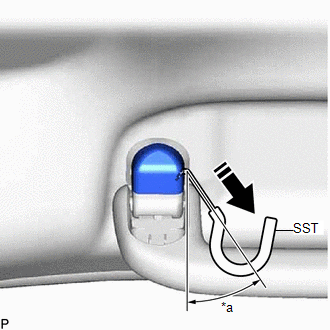

    2. Pull SST as shown in the illustration to disengage the claw.
      GTY1014770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 30 to 45°
      Remove in this Direction
      NOTE:

      To prevent the assist grip assembly from being damaged, make sure to only pull SST as shown in the illustration.

      HINT:

      • Use the same procedure for the claw on the other side of the assist grip cover LH.
      • Use the same procedure for the LH side and RH side.
    3. Remove the assist grip cover LH.

      HINT:

      Use the same procedure for the LH side and RH side.

    4. Disengage the 2 clips as shown in the illustration to remove the assist grip assembly.

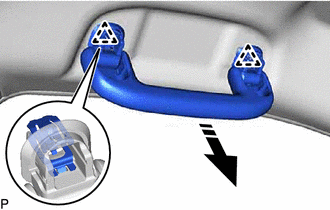

      GTY1014203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    5. Remove the 2 clips from the vehicle body.
  52. REMOVE REAR ASSIST GRIP ASSEMBLY LH

    HINT:

    Use the same procedure as for the assist grip assembly.

  53. REMOVE REAR ASSIST GRIP ASSEMBLY RH

    HINT:

    Use the same procedure as for the assist grip assembly.

  54. REMOVE MAP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  55. REMOVE NO. 1 ROOM LIGHT ASSEMBLY

    Refer to REMOVAL [07/2020 - ]

  56. REMOVE VANITY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  57. REMOVE NO. 2 FORWARD RECOGNITION COVER

    Refer to PROCEDURE - Step 1

  58. REMOVE NO. 1 FORWARD RECOGNITION COVER

    Refer to PROCEDURE - Step 2

  59. REMOVE RAIN SENSOR COVER (w/ Rain Sensor)

    Refer to PROCEDURE - Step 1

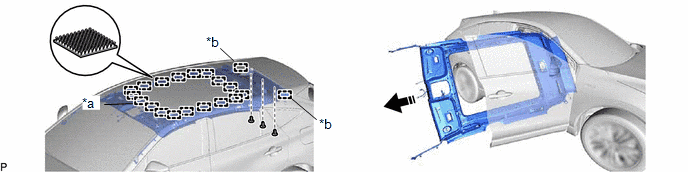

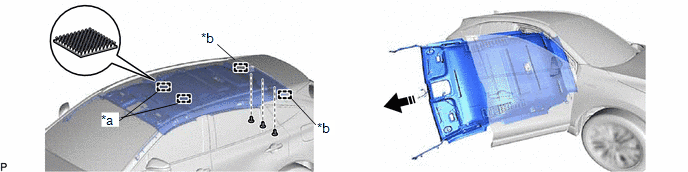

  60. REMOVE ROOF HEADLINING ASSEMBLY

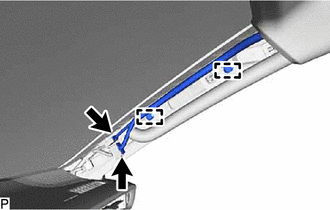

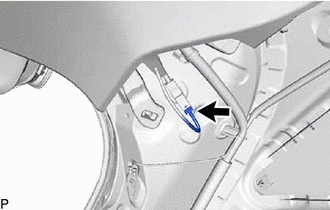

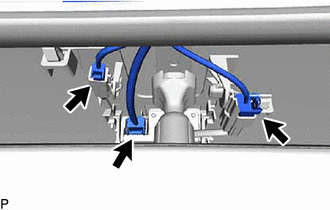

    1. For Front Pillar LH Side:
      1. Remove the protective cover.
      2. Disconnect the 2 connectors.

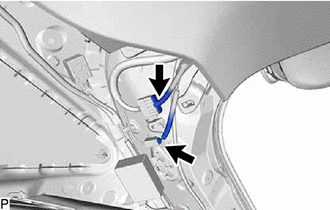

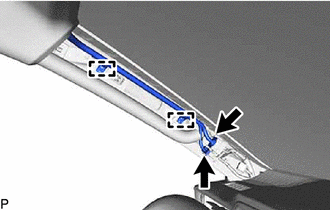

        GTY1014338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Disengage the 2 clamps.
      4. Install the protective cover.
    2. For Front Pillar RH Side:
      1. Remove the protective cover.
      2. Disconnect the 2 connectors.
        GTY1014336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Disengage the 2 clamps.
      4. Install the protective cover.
    3. For Windshield Glass Side:
      1. Disconnect each connector.
        GTY1014340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. For Map Light Side with Glass Roof:
      1. Disconnect the connector.

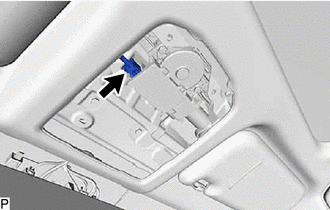

        GTY1014339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. For Rear Pillar LH Side with Digital Inner Mirror:
      1. Disconnect the connector.
        GTY1014349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. For Rear Pillar RH Side:
      1. Disconnect each connector.
        GTY1014348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. For Normal Roof:
      1. Using a clip remover, remove the 3 clips.
        GTY1013811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Fastener *b Guide
        Remove in this Direction - -
      2. Disengage the 2 guides and 2 fasteners.
      3. Remove the roof headlining assembly from the vehicle through the front passenger door as shown in the illustration.
        NOTE:

        Do not damage the roof headlining assembly or vehicle interior.

    8. For Glass Roof:
      1. Using a clip remover, remove the 3 clips.
        GTY1014513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Fastener *b Guide
        Remove in this Direction - -
      2. Disengage the 2 guides and 18 fasteners.
      3. Remove the roof headlining assembly from the vehicle through the front passenger door as shown in the illustration.
        NOTE:

        Do not damage the roof headlining assembly or vehicle interior.

  61. REMOVE REAR NO. 2 SIDE RAIL SPACER LH

    HINT:

    Perform this procedure only when replacement of the rear No. 2 side rail spacer LH is necessary.

    1. Disengage the 2 claws and guide to remove the rear No. 2 side rail spacer LH.

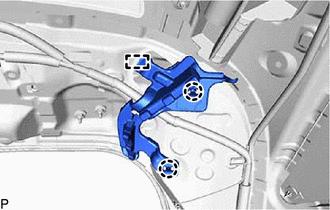

      GTY1012135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  62. REMOVE REAR NO. 2 SIDE RAIL SPACER RH

    HINT:

    Use the same procedure as for the LH side.

scientia non olet · About LEMON Manuals
