Removal [10/2022 - ]: Procedure

PRECAUTION
NOTE:
- After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.
  Refer to BEFORE DISCONNECTING BATTERY [10/2022 - ]
- When replacing the auxiliary battery, use a new auxiliary battery of the same dimensions and same capacity or more from the same class at a 20-hour rate.
- After replacing the auxiliary battery, install the ventilation hole plug supplied with the new auxiliary battery or the ventilation hole plug from the old auxiliary battery to the ventilation hole on the side to which the battery hose is not connected.

REMOVE REAR NO. 2 FLOOR BOARD

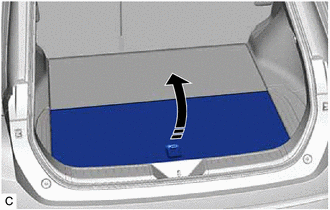

Turn back the deck board assembly as shown in the illustration.

GTY995972

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

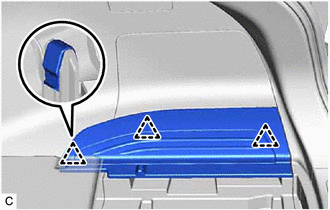

Disengage the 3 clips to remove the rear No. 2 floor board.

GTY998736

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE BATTERY HOLE COVER
Refer to PROCEDURE - Step 6

DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

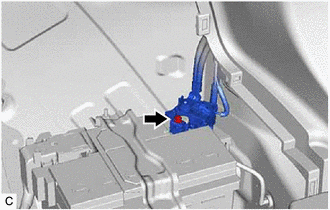

Loosen the nut, and disconnect the cable from the negative (-) auxiliary battery terminal.

GTY996491

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE AUXILIARY BATTERY

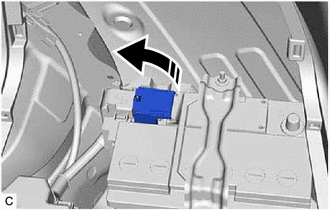

Open the battery terminal connector cover.

GTY995974

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

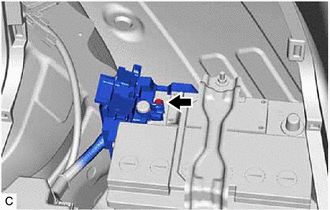

Loosen the nut and disconnect the cable from the positive (+) auxiliary battery terminal.

GTY996502

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

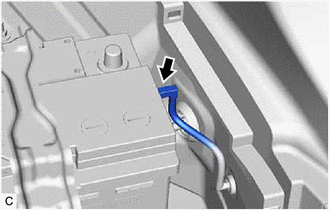

Disconnect the battery hose from the auxiliary battery.

GTY996499

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

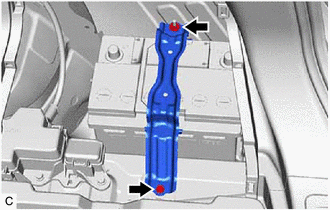

Remove the bolt, nut and battery clamp sub-assembly.

GTY996501

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the auxiliary battery.
