Removal [07/2020 - ]: Procedure

  1. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    1. Disconnect the front door opening trim weatherstrip RH.

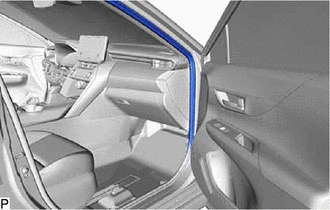

      GTY1013100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 1 INSTRUMENT SIDE PANEL

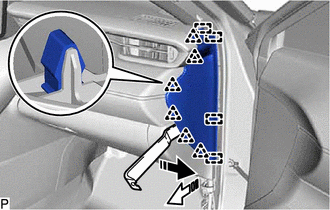

    1. Using a moulding remover, pull the No. 1 instrument side panel in the direction indicated by the arrow (1) shown in the illustration to disengage the 6 clips.
      GTY1012488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull the No. 1 instrument side panel in the direction indicated by the arrow (2) shown in the illustration to disengage the 4 guides and remove it.
  3. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
    1. Disengage the 10 clips as shown in the illustration to remove the No. 2 instrument cluster finish panel garnish.

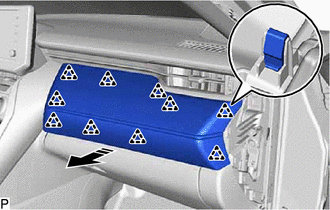

      GTY1012652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  4. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH
    1. Apply protective tape to the area shown in the illustration.

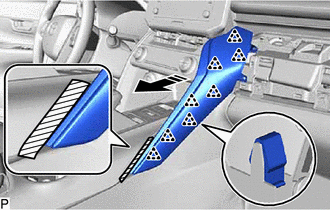

      GTY1012837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
      Remove in this Direction
    2. Disengage the 8 clips as shown in the illustration to remove the upper No. 2 console panel garnish.
  5. REMOVE UPPER CONSOLE COVER

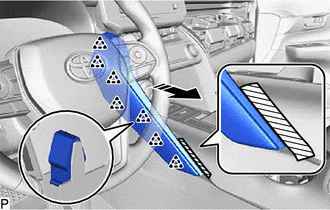

    1. Apply protective tape to the area shown in the illustration.
      GTY1013333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
      Remove in this Direction
    2. Disengage the 7 clips as shown in the illustration to remove the upper console cover.
  6. REMOVE CONSOLE BOX ORNAMENT (w/o Seat Heater System)

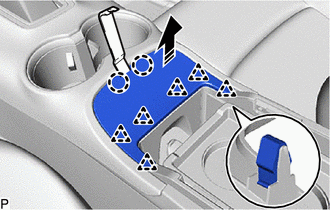

    1. Using a moulding remover, disengage the 2 claws and 6 clips as shown in the illustration to remove the console box ornament.
      GTY1012292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  7. REMOVE CONSOLE BOX ORNAMENT (w/ Seat Heater System)
    1. Using a moulding remover, disengage the 2 claws and 6 clips as shown in the illustration.

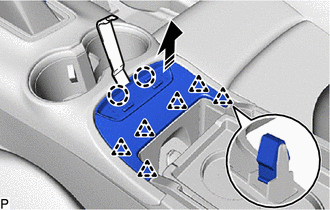

      GTY1012515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disconnect the connector to remove the console box ornament.

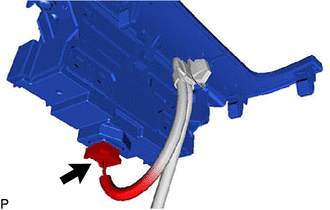

      GTY1013075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  9. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
    1. Move the shift lever to N.
    2. Disengage the 4 clips, 6 claws and 3 guides as shown in the illustration.

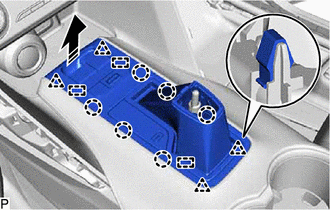

      GTY1011958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Disconnect the 3 connectors and disengage the 2 clamps to remove the upper console panel sub-assembly.

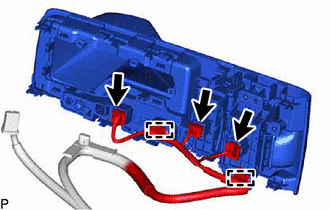

      GTY1013079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE CONSOLE CUP HOLDER BOX SUB-ASSEMBLY
    1. Remove the bolt.

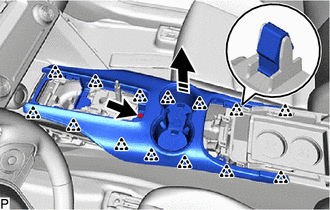

      GTY1012756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the 14 clips as shown in the illustration.

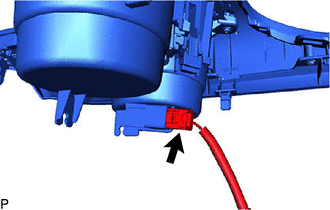

    3. Disconnect the connector to remove the console cup holder box sub-assembly.
      GTY1013065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY
    1. Using a moulding remover, disengage the 2 claws and 6 clips as shown in the illustration.

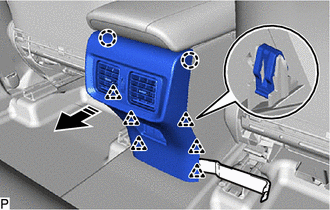

      GTY1012968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

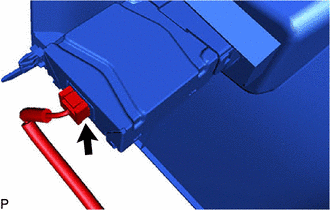

    2. Disconnect the connector to remove the console rear end panel sub-assembly.
      GTY1013052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT NO. 2 CONSOLE BOX INSERT
    1. Pull the front No. 2 console box insert in the direction indicated by the arrow (1) shown in the illustration to disengage the 3 clips.

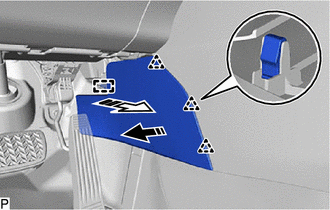

      GTY1012502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull the front No. 2 console box insert in the direction indicated by the arrow (2) shown in the illustration to disengage the guide and remove it.
  13. REMOVE FRONT NO. 1 CONSOLE BOX INSERT
    1. Pull the front No. 1 console box insert in the direction indicated by the arrow (1) shown in the illustration to disengage the 3 clips.

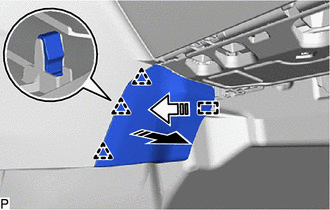

      GTY1012672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull the front No. 1 console box insert in the direction indicated by the arrow (2) shown in the illustration to disengage the guide and remove it.
  14. REMOVE CONSOLE BOX POCKET
    1. Remove the console box pocket.

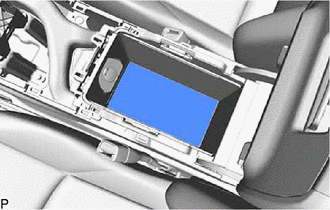

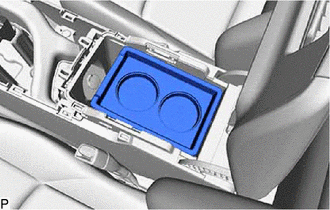

      GTY1013054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE CONSOLE BOX CARPET
    1. Remove the console box carpet.
      GTY1012403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE CONSOLE BOX ASSEMBLY

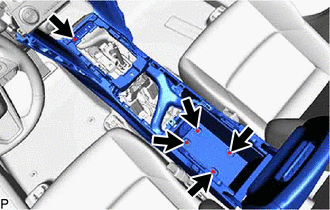

    1. Remove the 5 bolts.
      GTY1013237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and disengage the clamp.

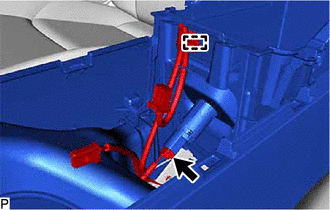

      GTY1012394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

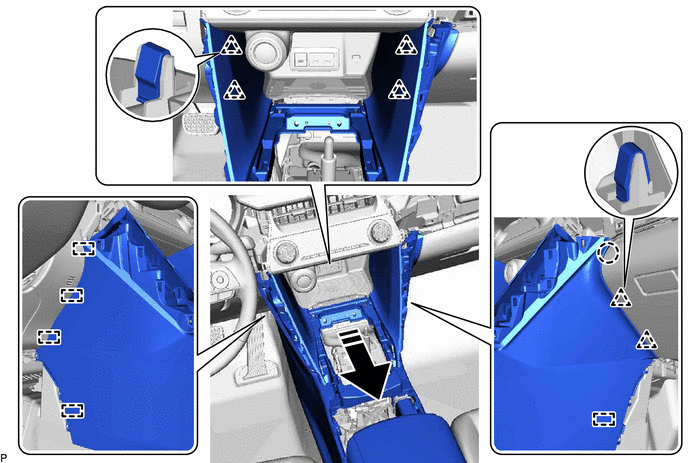

    3. Pull the console box assembly to disengage the claw, 6 clips and 5 guides as shown in the illustration.
      GTY1114293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

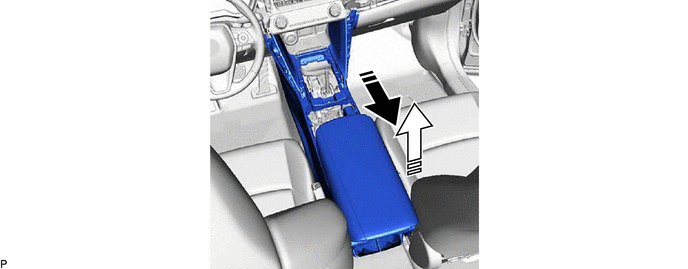

    4. Remove the console box assembly as shown in the illustration.
      GTY1114292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
  17. REMOVE REAR CONSOLE ARMREST ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the rear console armrest assembly is necessary.

    1. Insert a moulding remover as shown in the illustration.

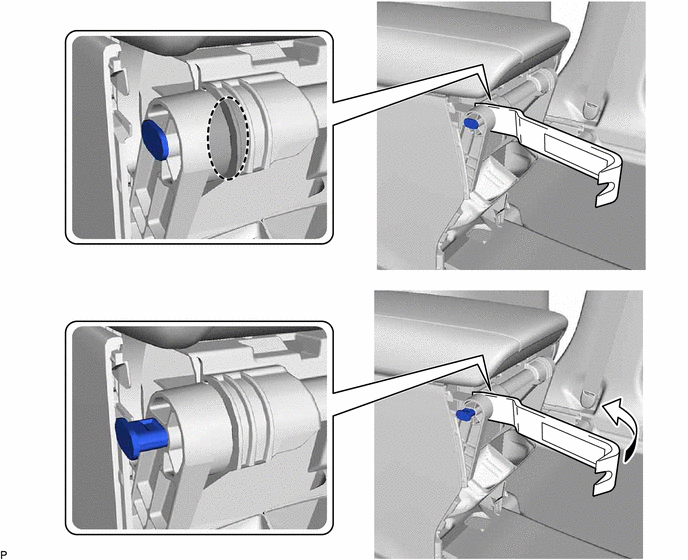

      GTY1190030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Moulding Remover Here - -
    2. As shown in the illustration, using a moulding remover, separate the console compartment door hinge shafts.

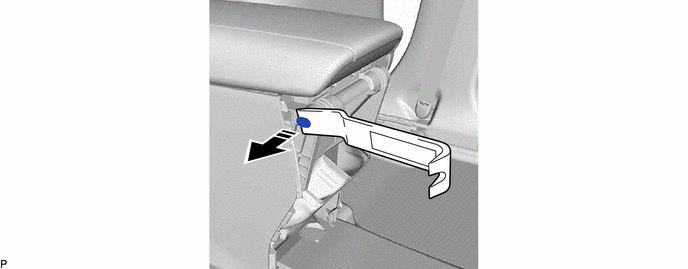

    3. Using a moulding remover, remove the console compartment door hinge shaft as shown in the illustration.
      GTY1187379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

      HINT:

      Use the same procedure for the LH side and RH side.

    4. Release the lock of the rear console armrest assembly and remove the rear console armrest assembly as shown in the illustration.

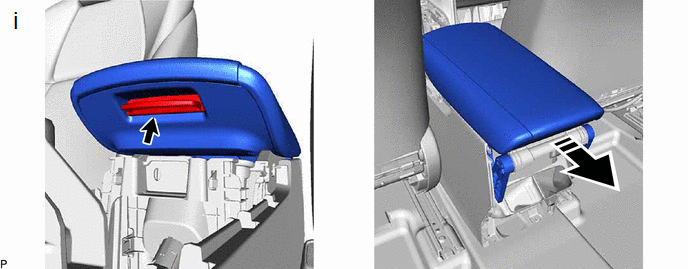

      GTY1190088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
