Removal [07/2020 - 10/2022]: Procedure

  1. REMOVE NO. 1 FLOOR UNDER COVER

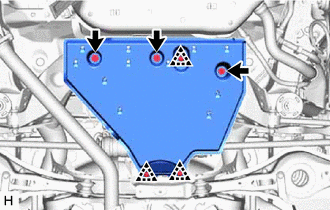

    1. Remove the 3 bolts, 3 clips and No. 1 floor under cover from the rear suspension member sub-assembly.
      GTY975879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR STABILIZER BAR

    Refer to REMOVAL [07/2020 - ]

  3. REMOVE REAR DRIVE SHAFT ASSEMBLY LH

    Refer to REMOVAL [07/2020 - 10/2022]

  4. REMOVE REAR DRIVE SHAFT ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  5. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

    See step  6

  6. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  7. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

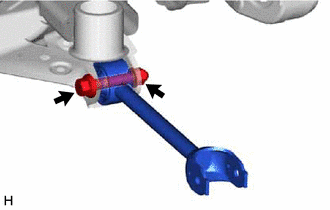

    1. Remove the bolt, nut and rear No. 1 suspension arm assembly from the rear suspension member sub-assembly.
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

      GTY976761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  9. REMOVE SERVICE PLUG GRIP

    Refer to REMOVAL [07/2020 - 10/2022]

  10. DISCONNECT ENGINE ROOM MAIN WIRE

    Refer to PROCEDURE - Step 4

  11. REMOVE CONNECTOR COVER ASSEMBLY

    Refer to PROCEDURE - Step 10

  12. CHECK TERMINAL VOLTAGE

    Refer to PROCEDURE - Step 11

  13. INSTALL CONNECTOR COVER ASSEMBLY

    Refer to PROCEDURE - Step 8

  14. CONNECT ENGINE ROOM MAIN WIRE

    Refer to PROCEDURE - Step 28

  15. DISCONNECT FLOOR UNDER WIRE
    WARNING:

    Be sure to wear insulated gloves.

    NOTE:

    Insulate the disconnected connectors with insulating tape.

    1. Remove the 2 bolts and HV floor under wire from the rear traction motor with transaxle assembly.
      GTY1001085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Waterproof Seal
      NOTE:
      • Do not damage the terminals, interlock connector or rear traction motor with transaxle assembly during disconnection.
      • Do not touch the waterproof seal or terminals of the connector.
      • Do not allow any foreign matter or water to enter the rear traction motor with transaxle assembly.
      • Although the connector may feel loose, this is not due to a malfunction.
    2. GTY1000443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disengage the clamp.

  16. REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY

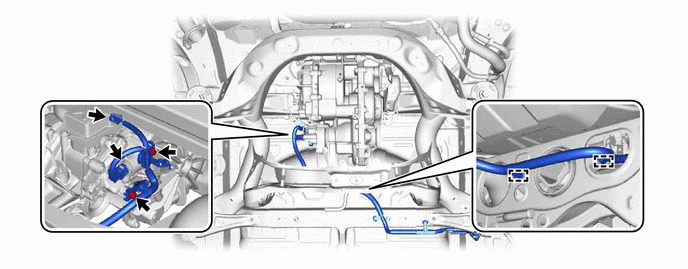

    1. Disconnect the 2 connectors.
      GTY977574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts to separate the frame wire from the rear traction motor with transaxle assembly.
    3. Disengage the 2 clamps to separate the frame wire from the rear suspension member sub-assembly.

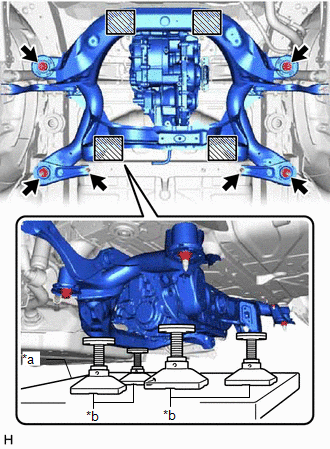

    4. Using an engine lifter and 4 attachments or equivalent tools, support the rear suspension member sub-assembly as shown in the illustration.
      WARNING:
      • The rear suspension member sub-assembly is a very heavy component. Make sure that it is supported securely.
      • If the rear suspension member sub-assembly is not securely supported, it may drop, resulting in serious injury.
      GTY976625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Use attachments or equivalent tools to keep the rear suspension member sub-assembly level.

      GTY976133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Engine Lifter
      *b Attachment
      Attachment Placement Location
    5. Remove the 2 bolts, 4 nuts, 2 rear suspension member lower stoppers, rear suspension member lower brace LH and rear suspension member lower brace RH.
    6. Slowly lower the rear suspension member sub-assembly.
      NOTE:

      When lowering the rear suspension member sub-assembly, be careful not to damage the vehicle body or other components installed to the vehicle.

    7. Remove the 4 differential support member cushions from the rear suspension member sub-assembly.
  17. REMOVE REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY

    Refer to PROCEDURE - Step 4

  18. REMOVE REAR UPPER CONTROL ARM ASSEMBLY LH

    See step  2

  19. REMOVE REAR UPPER CONTROL ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  20. REMOVE REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH

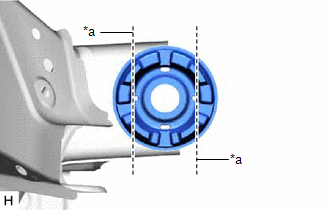

    1. Using a chisel and hammer, bend the 2 portions of the rear suspension member front body mounting cushion rib.
      NOTE:

      Make sure to bend the 2 portions of the cushion rib until the claws of SST can fit securely.

      GTY977004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bend Portion
    2. Apply lubricant to the contact surfaces of the rear suspension member front body mounting cushion.

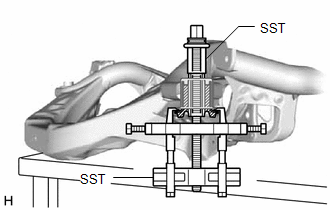

    3. Install SST as shown in the illustration.
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01040
        3. 09830-01050
      • SST: 09950-40011
        1. 09951-04010
        2. 09952-04010
        3. 09954-04010
        4. 09955-04061
        5. 09958-04011
      NOTE:

      Apply molybdenum grease to the threads and tip of the SST center bolt before use.

      GTY975921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

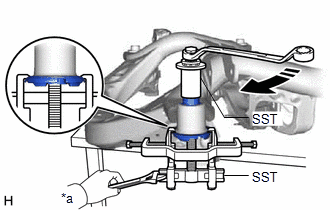

    4. Using SST, remove the rear suspension member front body mounting cushion while applying lubricant into the clearance between the rear suspension member front body mounting cushion and the rear suspension member sub-assembly.
      • SST: 09830-10010
        1. 09830-01010
        2. 09830-01040
        3. 09830-01050
      • SST: 09950-40011
        1. 09951-04010
        2. 09952-04010
        3. 09954-04010
        4. 09955-04061
        5. 09958-04011
      NOTE:
      • Set the claws of SST into the rear suspension member sub-assembly securely as shown in the illustration.
      • Tighten SST slowly and evenly.
      • Be careful as the rear suspension member front body mounting cushion may fly out.
      • The rear suspension member front body mounting cushion cannot be reused.
      GTY976652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      Turn
    5. Remove SST and the rear suspension member front body mounting cushion from the rear suspension member sub-assembly.
  21. REMOVE REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH

    HINT:

    Perform the same procedure as for the LH side.

  22. REMOVE REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH

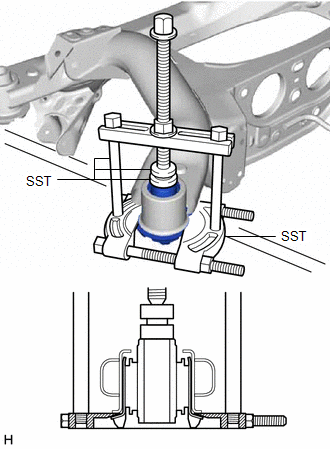

    1. Install SST as shown in the illustration.
      • SST: 09950-00020
      • SST: 09950-00030
      • SST: 09950-60011
        1. 09951-00330
      NOTE:

      Apply molybdenum grease to the threads and tip of the SST center bolt before use.

      GTY976820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

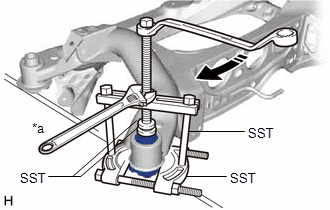

    2. Using SST, remove the rear suspension member rear body mount cushion LH while applying lubricant into the clearance between the rear suspension member rear body mount cushion LH and the rear suspension member sub-assembly.
      • SST: 09950-00020
      • SST: 09950-00030
      • SST: 09950-60011
        1. 09951-00330
      NOTE:
      • Tighten SST slowly and evenly.
      • Be careful as the rear suspension member rear body mount cushion LH may fly out.
      • The rear suspension member rear body mount cushion LH cannot be reused.
      GTY976774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      Turn
    3. Remove SST and the rear suspension member rear body mount cushion LH from the rear suspension member sub-assembly.
  23. REMOVE REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH

    HINT:

    Perform the same procedure as for the LH side.

  24. REMOVE DIFFERENTIAL MOUNT CUSHION

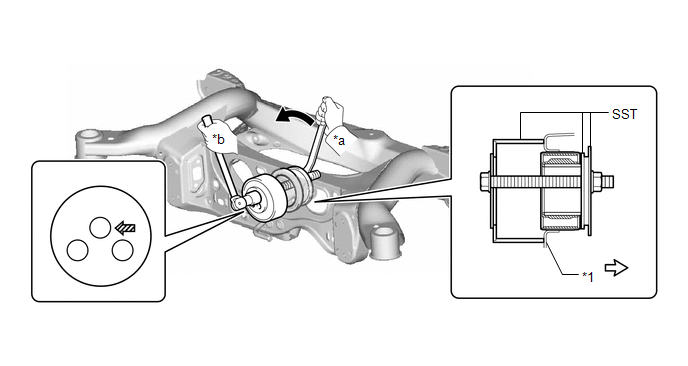

    1. Using SST, remove the differential mount cushion from the rear suspension member sub-assembly.
      • SST: 09316-12010
      • SST: 09570-24011
      GTY978560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Suspension Member Sub-assembly - -
      *a Turn *b Hold
      Turning Direction Front of Vehicle
      SST Bolt Position - -
      NOTE:
      • Do not bring SST into contact with the rear suspension member sub-assembly.
      • Before using SST, apply grease to SST bolt.
      • Set SST in the correct direction.
      • Do not tilt the SST bolt.
      • Do not reuse the differential mount cushion.
  25. REMOVE HOLE PLUG

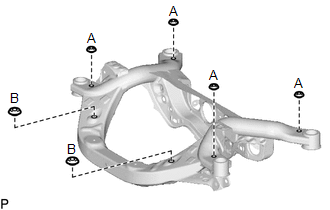

    1. Remove the 6 hole plugs from the rear suspension member sub-assembly.

      HINT:

      There are 2 different shapes of hole plug.

      GTY973549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
