Removal [07/2020 - 10/2022]: Procedure

Refer to PRECAUTION [07/2020 - ]

1. Read the Data List.

   Powertrain > HV Battery > Data List

   Tester Display
   Hybrid Battery Temperature 1
   Hybrid Battery Temperature 2
   Hybrid Battery Temperature 3
   Hybrid Battery Temperature 4
   Hybrid Battery Temperature 5
   Hybrid Battery Temperature 6

   NOTE:

   If any of the temperatures listed in "Hybrid Battery Temperature 1 to 6" are 50°C or more, leave the vehicle until the temperature drops to less than 50°C.

Refer to REMOVAL [07/2020 - 10/2022]

See step  8

Refer to PROCEDURE - Step 4

See step  10

See step  11

1. Using a T25 "TORX" socket wrench, install the connector cover assembly to the inverter with converter assembly with the bolt (A).

   Torque: 4.5 N.m (46 kgf/cm, 40 in.lbf)

   NOTE:

   Do not touch the waterproof seal of the connector cover assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Bolt (A)
   *b	Bolt (B)

2. Install the bolt (B).

   Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

Refer to PROCEDURE - Step 28

See step  17

Refer to REMOVAL [07/2020 - ]

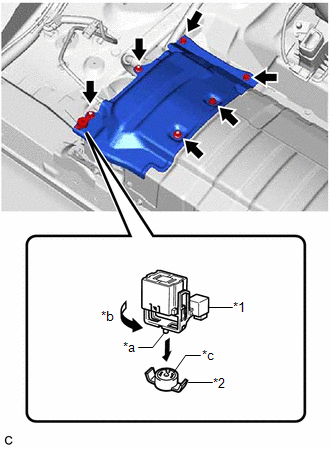

1. Using the service plug grip, remove the battery cover lock striker.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Service Plug Grip
   *2	Battery Cover Lock Striker
   *a	Projection
   *b	Turn
   *c	Button

   HINT:

   Insert the projection of the service plug grip and turn the button of the battery cover lock striker counterclockwise to release the lock.

2. Remove the 3 bolts, 3 nuts and No. 1 HV battery cover panel RH from the HV battery.

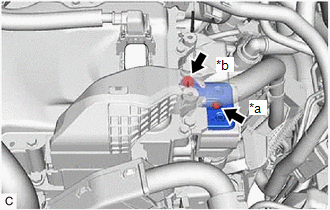

1. Disconnect the 2 HV battery junction block assembly connectors.
   NOTE:

   Insulate each disconnected high-voltage connector with insulating tape. Wrap the connector from the wire harness side to the end of the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	Type A	*B	Type B
   *a	Shield Ground	-	-

2. Disconnect the shield ground from the HV battery.

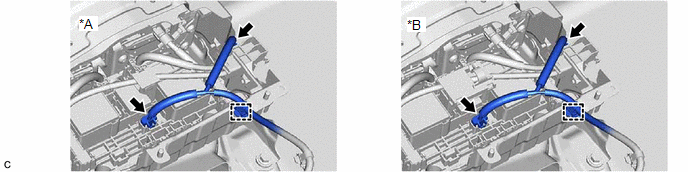

1. Disengage the clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A

   Type A

   *B

   Type B

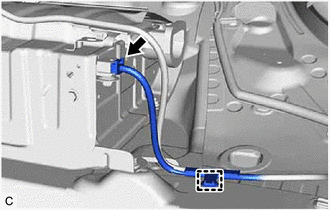

2. Disconnect the electric vehicle battery plug assembly connector.
3. Disconnect the HV battery junction block assembly connector.

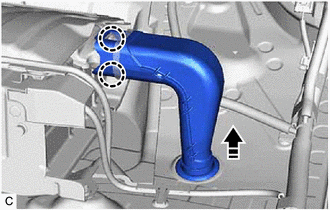

1. Disconnect the hybrid battery hose assembly from the vehicle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the 2 claws to remove the hybrid battery hose assembly from the HV battery.

Refer to PROCEDURE - Step 6

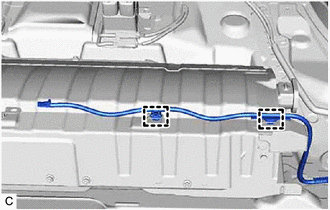

1. Disengage the 2 clamps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

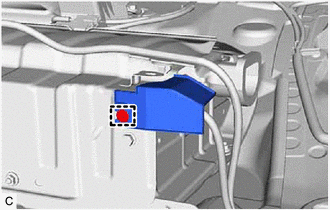

1. Disengage the clamp to remove the No. 4 HV battery protector from the HV battery.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disengage the clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the HV battery connector.

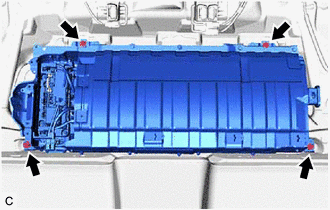

1. Remove the 5 bolts and HV battery from the vehicle body.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Do not allow foreign matter, such as grease or oil, to adhere to the bolts of the HV battery.
   • To prevent the wire harness from being caught, make sure to bundle the wire harness using insulating tape or equivalent.
   • Use cardboard or another similar material to protect the HV battery and vehicle body from damage.
   • Since the HV battery is very heavy, 2 people are needed to remove it. When removing the HV battery, be careful not to damage the parts around it.
   • When removing the HV battery from the vehicle, do not allow it to contact the vehicle.
   • When removing/installing/moving the HV battery, make sure not to tilt it more than 80°.
   • Insulate the disconnected terminals or connectors with insulating tape.
   • If the HV battery has been struck or dropped, replace it.

1. Before returning the HV battery, make sure to perform a recovery inspection.

   Refer to RECOVERY INSPECTION [07/2020 - ]
