Disassembly [10/2022 - ]: Procedure

  1. REMOVE FRONT CENTER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 2

  2. REMOVE FRONT CORNER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 3

  3. REMOVE FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 4

  4. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

    Refer to PROCEDURE - Step 3

  5. REMOVE FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

    Refer to PROCEDURE - Step 3

  6. REMOVE FOG LIGHT COVER LH (w/o Fog Light)
    1. Remove the 3 screws and fog light cover LH.
      GTY1013905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FOG LIGHT COVER RH (w/o Fog Light)

    HINT:

    Use the same procedure as for the LH side.

  8. REMOVE FOG LIGHT ASSEMBLY LH (w/ Fog Light)

    Refer to PROCEDURE - Step 2

  9. REMOVE FOG LIGHT ASSEMBLY LH (w/ Fog Light)

    HINT:

    Use the same procedure as for the LH side.

  10. REMOVE FOG LIGHT SEAL

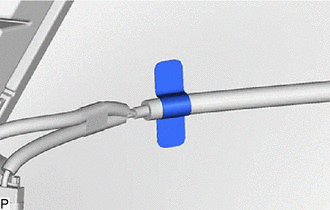

    1. Remove the fog light seal.
      GTY1013902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

  11. REMOVE NO. 4 ENGINE ROOM WIRE

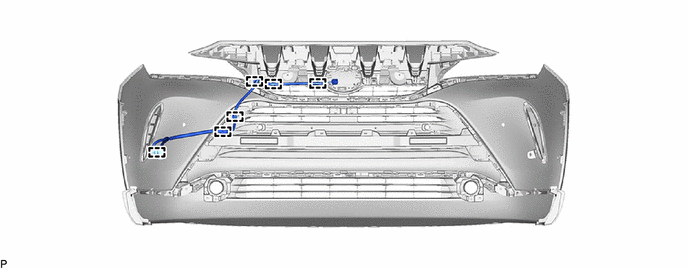

    1. w/o Intuitive Parking Assist System:
      1. Disengage the 6 clamps to remove the No. 4 engine room wire.
        GTY1110760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Intuitive Parking Assist System:

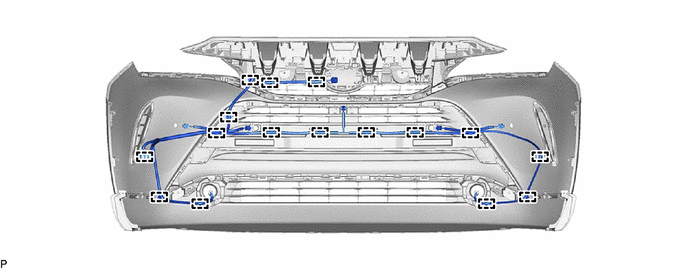

      1. Disengage the 16 clamps to remove the No. 4 engine room wire.
        GTY1110758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FOG LIGHT COVER LH (w/ Fog Light)

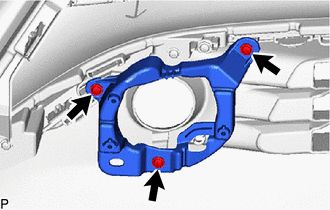

    1. Remove the 3 screws and fog light cover LH.
      GTY1115078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE FOG LIGHT COVER RH (w/ Fog Light)

    HINT:

    Use the same procedure as for the LH side.

  14. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET
    1. Remove the 2 screws to remove the front bumper extension mounting bracket.
      GTY1014723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE RADIATOR GRILLE SIDE MOULDING LH
    1. Remove the 2 screws.
      GTY1013893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 claws and guide to remove the radiator grille side moulding LH.
      GTY1013887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE RADIATOR GRILLE SIDE MOULDING RH

    HINT:

    Use the same procedure as for the LH side.

  17. REMOVE NO. 1 RADIATOR GRILLE MOULDING
    1. Remove the screw.
      GTY1013877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 6 claws to remove the No. 1 radiator grille moulding.
      GTY1014717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE FRONT BUMPER HOLE COVER LH
    1. Disengage the 4 claws to remove the front bumper hole cover LH.
      GTY1013873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE FRONT BUMPER HOLE COVER RH

    HINT:

    Use the same procedure as for the LH side.

  20. REMOVE LOWER SIDE RADIATOR GRILLE LH (for Type A)
    1. Remove the 3 screws.
      GTY1013881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws to remove the lower side radiator grille LH.
      GTY1014718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE LOWER SIDE RADIATOR GRILLE RH (for Type A)

    HINT:

    Use the same procedure as for the LH side.

  22. REMOVE LOWER RADIATOR GRILLE MOULDING
    1. For Type A:
      1. Remove the screw.
        GTY1013880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the 12 claws to remove the lower radiator grille moulding.
        GTY1013879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. For Type B:
      1. Remove the 5 screws.
        GTY1013872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the 16 claws to remove the lower radiator grille moulding.
        GTY1013866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE HOOD TO FRONT END PANEL SEAL
    1. Disengage the 2 guides and 16 clips to remove the hood to front end panel seal.
      GTY1009309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE RADIATOR GRILLE BRACKET

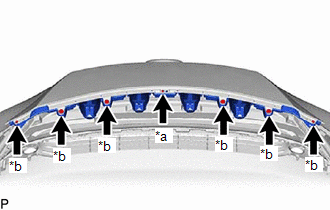

    1. Remove the screw and 6 clips.
      GTY1014355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Screw
      *b Clip
    2. Remove the 4 screws.
      GTY1013856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 4 claws and guide to remove the radiator grille bracket.
      GTY1014712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE RADIATOR GRILLE ASSEMBLY
    1. Remove the 3 screws.
      GTY1013855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage 10 claws to remove the radiator grille assembly.
      GTY1013853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE RADIATOR GRILLE (OR FRONT PANEL) EMBLEM
    1. Remove the screw.
      GTY1014713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 claws and guide to remove the radiator grille (or front panel) emblem.
  27. REMOVE FRONT BUMPER ARM HOLE COVER LH
    1. Disengage the 2 claws.
      GTY1016248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

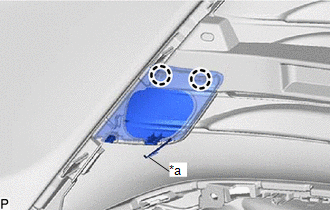

    2. Disengage the 2 claws and hook to remove the front bumper arm hole cover LH.
      GTY1016299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
  28. REMOVE FRONT BUMPER ARM HOLE COVER RH

    HINT:

    Use the same procedure as for the LH side.

  29. REMOVE FRONT BUMPER GUARD PAD LH
    1. Remove the clip.
      GTY1013858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clip.
      GTY1013857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the guide to remove the front bumper guard pad LH.
      GTY1013842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE FRONT BUMPER GUARD PAD RH

    HINT:

    Use the same procedure as for the LH side.

  31. REMOVE FRONT BUMPER GUARD (for Integrated Type)
    1. Remove the 6 clips.
      GTY1013841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.
      GTY1014708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 5 claws to remove the front bumper guard.
      GTY1009283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE FRONT BUMPER GUARD (for Separate Type)

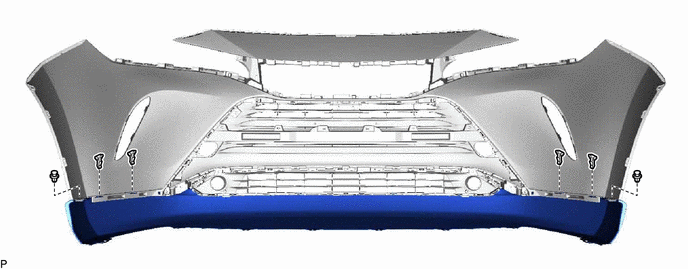

    1. Remove the 6 clips.
      GTY1111506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

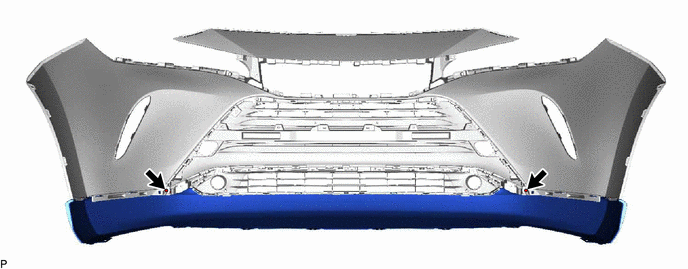

    2. Remove the 2 screws.
      GTY1111507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

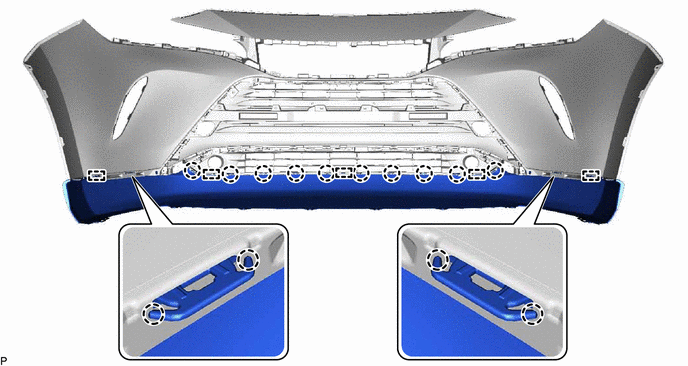

    3. Disengage the 14 claws and 5 guides to remove the front bumper guard.
      GTY1111508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE NO. 2 LOWER RADIATOR GRILLE (for Separate Type)

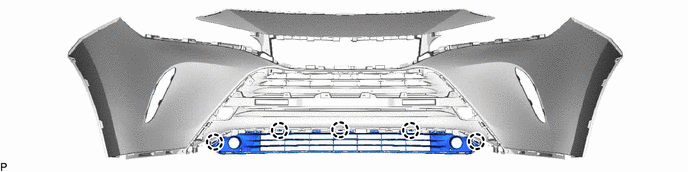

    1. Disengage the 5 claws to remove the No. 2 lower radiator grille.
      GTY1111509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE LOWER NO. 1 RADIATOR GRILLE
    1. Remove the 2 screws.
      GTY1013834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 10 claws to remove the lower No. 1 radiator grille.
      GTY1013833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE PIN HOLD CLIP

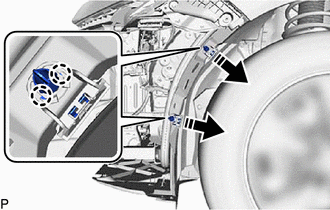

    1. Disengage the 4 claws as shown in the illustration to remove the 2 pin hold clips.

      HINT:

      Use the same procedure for the RH side and LH side.

      GTY1014486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  36. REMOVE FRONT FENDER LINER RETAINER

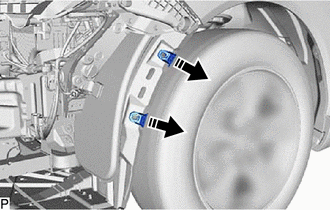

    1. Remove the 2 front fender liner retainers as shown in the illustration.

      HINT:

      Use the same procedure for the RH side and LH side.

      GTY1013445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  37. REMOVE FRONT BUMPER SIDE RETAINER LH

    HINT:

    Perform this procedure only when replacement of the front bumper side retainer LH is necessary.

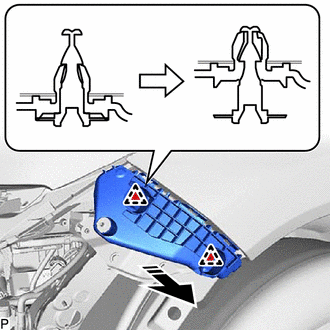

    1. Disengage the 2 clips as shown in the illustration to remove the front bumper side retainer LH.
      GTY1013472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  38. REMOVE FRONT BUMPER SIDE RETAINER RH

    HINT:

    Use the same procedure as for the LH side.

  39. REMOVE NO. 2 FRONT BUMPER ENERGY ABSORBER

    HINT:

    Perform this procedure only when replacement of the No. 2 front bumper energy absorber is necessary.

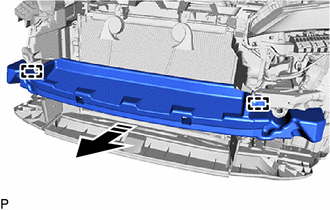

    1. Disengage the 2 guides as shown in the illustration to remove the No. 2 front bumper energy absorber.
      GTY1116912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  40. REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the front bumper reinforcement sub-assembly is necessary.

    1. Disengage the 3 clamps.
      GTY1014105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

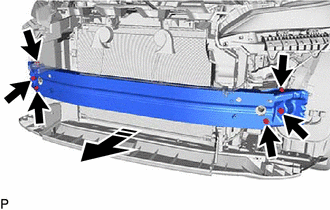

    2. Remove the 6 bolts and front bumper reinforcement sub-assembly as shown in the illustration.
      GTY1014390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  41. REMOVE FRONT BUMPER LOWER ABSORBER

    HINT:

    Perform this procedure only when replacement of the front bumper lower absorber is necessary.

    1. Remove the clip.
      GTY1014094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

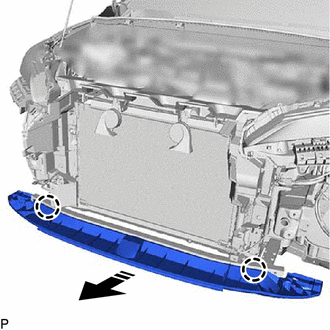

    2. Disengage the 2 claws as shown in the illustration to remove the front bumper lower absorber.
      GTY1014651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  42. REMOVE NO. 2 FRONT BUMPER REINFORCEMENT

    HINT:

    Perform this procedure only when replacement of the No. 2 front bumper reinforcement is necessary.

    1. Remove the 4 nuts and No. 2 front bumper reinforcement.
      GTY1014095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE NO. 1 ENGINE UNDER COVER

    HINT:

    Perform this procedure only when replacement of the No. 1 engine under cover is necessary.

    Refer to PROCEDURE - Step 9

  44. REMOVE FRONT BUMPER EXTENSION SUB-ASSEMBLY LH

    HINT:

    Perform this procedure only when replacement of the front bumper extension sub-assembly LH is necessary.

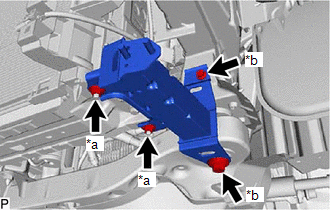

    1. Remove the 2 nuts.
      GTY1013437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Nut
      *b Bolt
    2. Remove the 2 bolts and front bumper extension sub-assembly LH.
  45. REMOVE FRONT BUMPER EXTENSION SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.
