Removal [10/2022 - ]: Procedure

Refer to PROCEDURE - Step 2

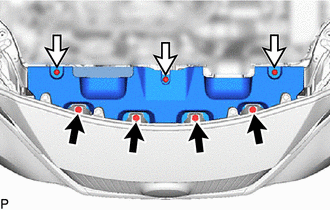

1. Remove the 4 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Bolt
   	Clip

2. Remove the 3 clips.

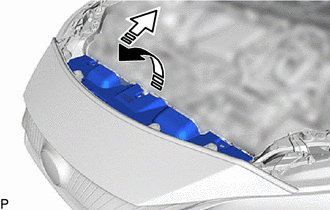

3. Remove the upper radiator air guide plate as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Remove in this Direction (1)
   	Remove in this Direction (2)

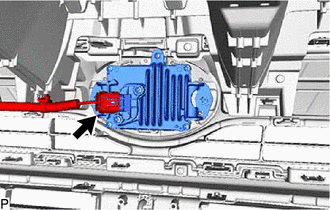

1. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

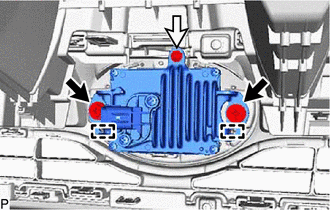

2. Remove the 2 bolts and screw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Bolt
   	Screw

3. Disengage the 2 guides and remove the millimeter wave radar sensor assembly.
   NOTE:

   Do not reuse the millimeter wave radar sensor assembly if it has been dropped or subjected to a severe impact.
