Removal [12/2021 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [07/2020 - 10/2022] , or refer to REMOVAL [10/2022 - ]

  2. REMOVE FOG LIGHT ASSEMBLY

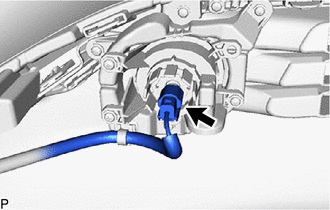

    1. Disconnect the connector.
      GTY1119581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

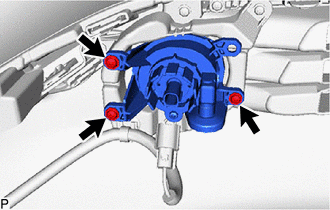

    2. Remove the 3 screws and fog light assembly.
      GTY1119580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
