Removal [10/2022 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [10/2022 - ]

  2. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    Refer to PROCEDURE - Step 1

  3. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [07/2020 - ]

  4. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  5. SECURE STEERING WHEEL

    Refer to PROCEDURE - Step 3

  6. REMOVE FRONT WHEELS

    Refer to REMOVAL [10/2022 - ]

  7. REMOVE FRONT FENDER FRONT SPLASH SHIELD LH

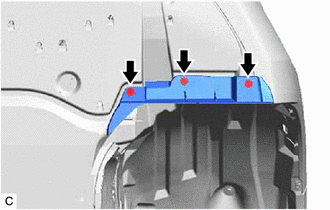

    1. Remove the 3 screws and front fender front splash shield LH.
      GTY1000454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT FENDER FRONT SPLASH SHIELD RH

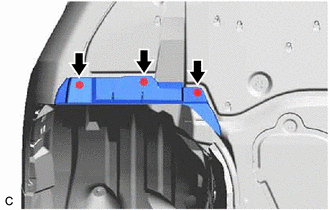

    1. Remove the 3 screws and front fender front splash shield RH.
      GTY1000453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 1 ENGINE UNDER COVER

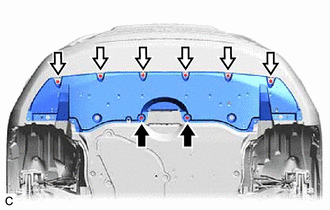

    1. Remove the 2 bolts, 6 screws and No. 1 engine under cover.
      GTY1000829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Screw
  10. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

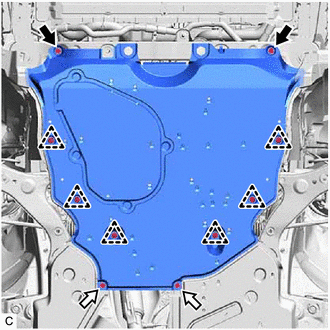

    1. Remove the 2 bolts, 2 screws, 6 clips and No. 2 engine under cover assembly.
      GTY1000178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Screw
  11. REMOVE FRONT FENDER APRON SEAL LH

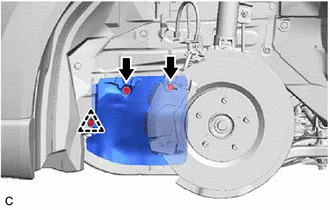

    1. Remove the 2 bolts, clip and front fender apron seal LH.
      GTY1000631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT FENDER APRON SEAL RH

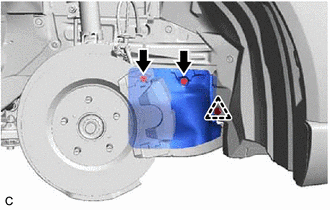

    1. Remove the 2 bolts, clip and front fender apron seal RH.
      GTY1001292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [10/2022 - ]

  14. REMOVE FRONT BUMPER LOWER ABSORBER

    Refer to PROCEDURE - Step 41

  15. REMOVE NO. 2 FRONT BUMPER REINFORCEMENT

    Refer to PROCEDURE - Step 42

  16. DRAIN ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 1

  17. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 2 [12/2021 - 10/2023] , or refer to PROCEDURE - Step 2 [10/2023 - ]

  18. DRAIN HYBRID TRANSAXLE FLUID

    Refer to PROCEDURE - Step 5

  19. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

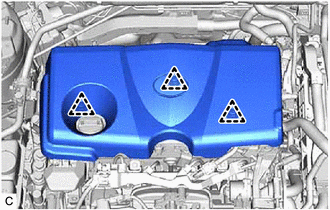

    1. Disengage the 3 clips and remove the No. 1 engine cover sub-assembly.
      GTY1000626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Pull the No. 1 engine cover sub-assembly straight up when removing. If the No. 1 engine cover sub-assembly is not pulled straight up when removing, it may become damaged.

  20. REMOVE INVERTER WITH CONVERTER ASSEMBLY

    Refer to REMOVAL [10/2022 - ]

  21. DISCONNECT FUEL VAPOR FEED HOSE ASSEMBLY
    1. Disengage the clamp.
      GTY880729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the clip and disconnect the fuel vapor feed hose assembly from the No. 1 vacuum switching valve assembly.
  22. DISCONNECT OUTLET HEATER WATER HOSE

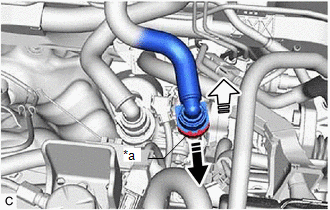

    1. Pull out the retainer to disengage the lock claws and pull off the outlet heater water hose connector.
      GTY1001181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      Pull out
      Pull off
    2. Check that there is no foreign matter on the sealing surfaces of the disconnected water lines. Clean them if necessary.
    3. Cover the disconnected No. 2 water by-pass pipe sub-assembly and outlet heater water hose connector with plastic bags to prevent damage and contamination.
  23. DISCONNECT INLET HEATER WATER HOSE

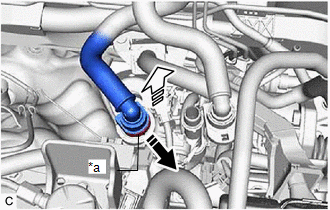

    1. Pull out the retainer to disengage the lock claws and pull off the inlet heater water hose connector.
      GTY1000540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      Pull out
      Pull off
    2. Check that there is no foreign matter on the sealing surfaces of the disconnected water lines. Clean them if necessary.
    3. Cover the disconnected flow shutting valve (water by-pass hose assembly) and inlet heater water hose connector with plastic bags to prevent damage and contamination.
  24. DISCONNECT FUEL TUBE SUB-ASSEMBLY

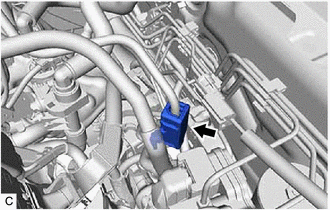

    1. Remove the EFI fuel pipe clamp from the fuel tube connector.
      GTY1000619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the fuel tube sub-assembly.

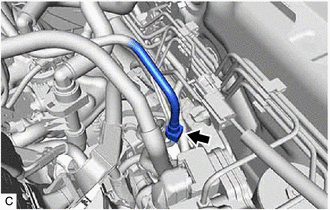

      1. Disconnect the fuel tube sub-assembly from the fuel pipe.
        GTY1000617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Refer to PRECAUTION [07/2020 - ]

  25. DISCONNECT NO. 1 RADIATOR HOSE
    1. Disengage the clamp.
      GTY880718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the clip and disconnect the No. 1 radiator hose from the water outlet.
  26. DISCONNECT NO. 2 RADIATOR HOSE

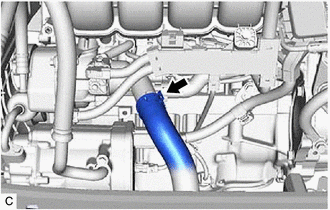

    1. Slide the clip and disconnect the No. 2 radiator hose from the water inlet with thermostat sub-assembly.
      GTY1000613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. DISCONNECT SUCTION HOSE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  28. DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE

    Refer to PROCEDURE - Step 10

  29. DISCONNECT NO. 5 INVERTER COOLING HOSE

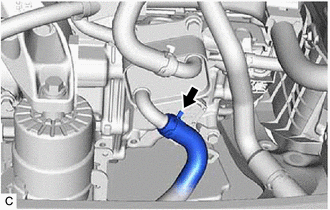

    1. Slide the clip and disconnect the No. 5 inverter cooling hose from the motor cooling cooler.
      GTY1000637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. DISCONNECT WIRE HARNESS

    HINT:

    After disconnecting the wire harness, secure it with tape or equivalent to keep it out of the way.

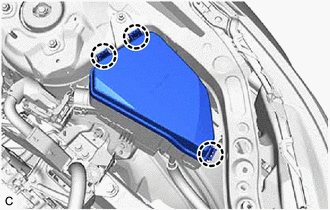

    1. Disengage the 3 claws and remove the No. 1 relay block cover from the No. 1 engine room relay block and No. 1 junction block assembly.
      GTY1000636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

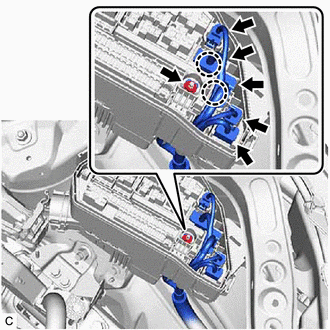

    2. Remove the nut from the No. 1 engine room relay block and No. 1 junction block assembly.
      GTY1000633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the 5 connectors from the No. 1 engine room relay block and No. 1 junction block assembly.
    4. Using a screwdriver, disengage the 2 claws and disconnect the wire harness from the No. 1 engine room relay block and No. 1 junction block assembly.

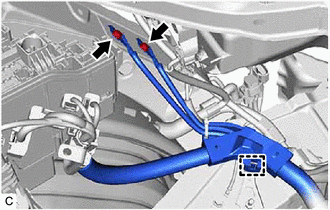

    5. Remove the 2 bolts and disconnect the earth wire.
      GTY1000658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disengage the clamp.
  31. DISCONNECT NO. 5 WATER BY-PASS HOSE
    1. Slide the clip and disconnect the No. 5 water by-pass hose from the No. 3 water by-pass pipe.
      GTY880734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. SEPARATE STEERING INTERMEDIATE SHAFT ASSEMBLY

    Refer to PROCEDURE - Step 5

  33. REMOVE ENGINE UNDER COVER HEAT INSULATOR

    Refer to PROCEDURE - Step 4

  34. REMOVE FRONT FLOOR COVER LH

    Refer to PROCEDURE - Step 5

  35. REMOVE FRONT FLOOR COVER RH

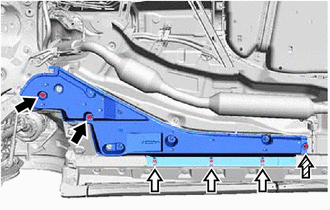

    1. Remove the 2 bolts, 3 screws and clip.
      GTY1002296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

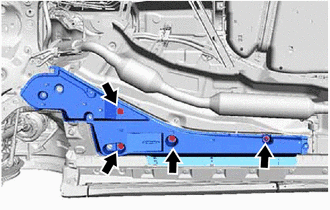

    2. Turn the 4 clips and remove the front floor cover RH from the vehicle body.
      GTY1002277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the 4 clips are not turned when the front floor cover RH is removed, the front floor cover RH or stud bolt may be damaged.

      HINT:

      Do not remove the clips from the front floor cover RH.

  36. REMOVE FRONT CENTER FLOOR COVER RH

    Refer to PROCEDURE - Step 6

  37. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

    Refer to PROCEDURE - Step 3

  38. REMOVE FRONT DRIVE SHAFT ASSEMBLY

    Refer to REMOVAL [10/2022 - ]

  39. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
    1. Set the engine assembly with transaxle on an engine lifter.
      GTY1109160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Attachment Installation Position - -
      NOTE:
      • Using height adjustment attachments and plate lift attachments, keep the engine assembly with transaxle level.
      • Do not perform any procedures while the engine assembly is suspended because doing so may cause the engine assembly to drop, resulting in injury. However, the engine assembly needs to be suspended when it is installed to or removed from an engine stand.
      • To prevent the engine assembly from unexpectedly moving, securely support the engine assembly until it is secured to an engine stand.

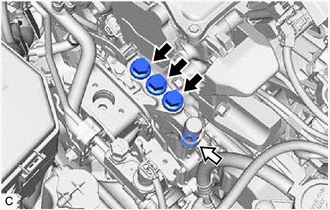

    2. Remove the 3 bolts and nut and separate the engine mounting insulator sub-assembly RH from the engine mounting bracket RH.
      GTY1000670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut

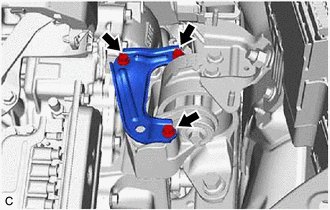

    3. Remove the 3 bolts and engine mounting stay LH from the engine mounting insulator LH.
      GTY1000650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

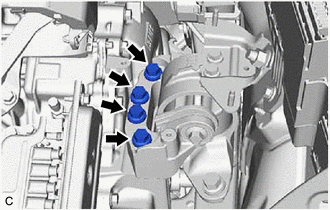

    4. Remove the 4 bolts and separate the engine mounting insulator LH from the hybrid vehicle transaxle assembly.
      GTY1001296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

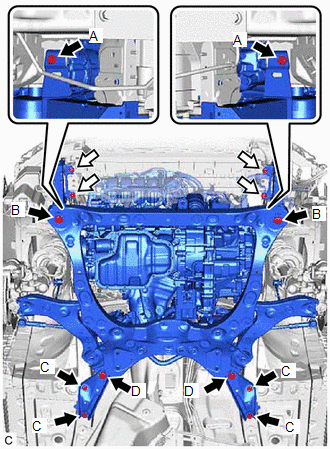

    5. GTY1000729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut

      Remove the 2 bolts (A), 2 bolts (B), 4 nuts, front bumper extension sub-assembly RH and front bumper extension sub-assembly LH from the front frame assembly and vehicle body.

    6. Remove the 4 bolts (C), 2 bolts (D), front suspension member brace rear RH and front suspension member brace rear LH from the front frame assembly and vehicle body.
    7. Operate the engine lifter and remove the engine assembly with transaxle from the vehicle.
      NOTE:
      • Make sure that the engine assembly with transaxle is clear of all wiring and hoses.
      • While lowering the engine assembly with transaxle from the vehicle, do not allow it to contact the vehicle.
  40. REMOVE FUEL DELIVERY GUARD
    1. Remove the bolt and fuel delivery guard from the engine mounting bracket RH.
      GTY880619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. INSTALL ENGINE HANGERS
    1. Install the No. 1 engine hanger and No. 2 engine hanger with the 4 bolts as shown in the illustration.
      GTY902431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Engine Hanger
      *2 No. 2 Engine Hanger

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

      HINT:

      No. 1 Engine Hanger 12281-25030
      No. 2 Engine Hanger 12282-25010
      Bolt 91552-F1040
    2. Using an engine sling device and engine lift, secure the engine assembly with transaxle.
      NOTE:
      • Pay attention to the angle of the sling device as the engine assembly or No. 1 engine hanger and No. 2 engine hanger may be damaged or deformed if the angle is incorrect.
      • Do not perform any procedures while the engine assembly is suspended because doing so may cause the engine assembly to drop, resulting in injury. However, the engine assembly needs to be suspended when it is installed to or removed from an engine stand.
  42. REMOVE STEERING GEAR HEAT INSULATOR

    Refer to PROCEDURE - Step 9

  43. DISCONNECT ENGINE WIRE

    Refer to PROCEDURE - Step 6

  44. REMOVE FLYWHEEL HOUSING UNDER COVER
    1. Remove the flywheel housing under cover from the cylinder block sub-assembly.
      GTY753666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE HV AIR CONDITIONING WIRE
    1. Disengage the 2 clamps.
      GTY880617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, slide the green-colored lock of the connector as shown in the illustration to release it and disconnect the connector.
      GTY743434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Green-colored Lock
      Slide
      WARNING:

      Make sure to wear insulated gloves.

      NOTE:

      Insulate the disconnected terminals and connector with insulating tape.

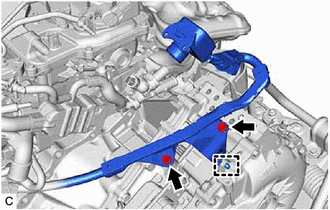

    3. Remove the 2 bolts.
      GTY1000666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the guide to remove the HV air conditioning wire from the hybrid vehicle transaxle assembly.
  46. REMOVE STARTER HOLE INSULATOR

    Refer to PROCEDURE - Step 8

  47. REMOVE FLYWHEEL HOUSING SIDE COVER

    Refer to PROCEDURE - Step 9

  48. REMOVE FRONT FRAME ASSEMBLY

    Refer to PROCEDURE - Step 6

  49. REMOVE FRONT ENGINE MOUNTING INSULATOR

    HINT:

    Perform this procedure only when replacement of the front engine mounting insulator is necessary.

    Refer to PROCEDURE - Step 12

  50. REMOVE REAR ENGINE MOUNTING INSULATOR

    HINT:

    Perform this procedure only when replacement of the rear engine mounting insulator is necessary.

    1. Remove the bolt and wire harness clamp from the rear engine mounting insulator.
      GTY880622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

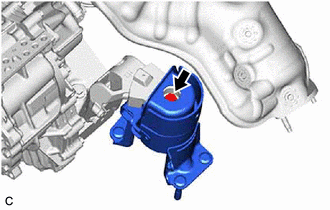

    2. Remove the bolt and rear engine mounting insulator from the rear engine mounting bracket.
      GTY1000665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  51. REMOVE HYBRID VEHICLE TRANSAXLE ASSEMBLY

    Refer to PROCEDURE - Step 16

  52. REMOVE TRANSMISSION INPUT DAMPER ASSEMBLY

    See step  2

  53. REMOVE FLYWHEEL SUB-ASSEMBLY

    See step  3

  54. REMOVE NO. 1 CRANKSHAFT POSITION SENSOR PLATE

    See step  4

  55. REMOVE ENGINE WIRE
    1. Disconnect all clamps and connectors and remove the engine wire from the engine assembly with transaxle.
  56. DISCONNECT INVERTER RESERVE TANK ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the engine mounting insulator sub-assembly RH is necessary.

    1. Remove the 2 bolts.
      GTY848566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin
      *b Grommet
    2. Disengage the pin and disconnect the inverter reserve tank assembly.
  57. REMOVE ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH

    HINT:

    Perform this procedure only when replacement of the engine mounting insulator sub-assembly RH is necessary.

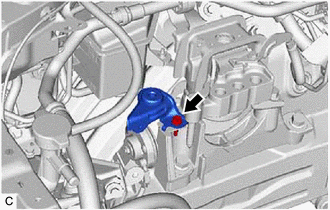

    1. Remove the bolt and No. 1 inverter reserve tank bracket.
      GTY1001300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

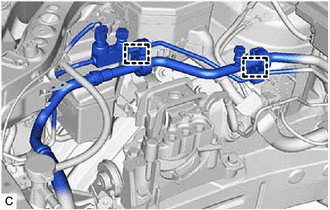

    2. Disengage the 2 clamps.
      GTY1000661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

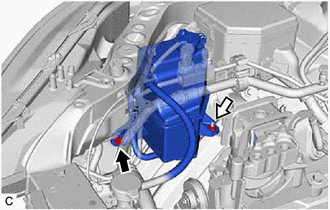

    3. Remove the bolt and nut and disconnect the radiator reserve tank assembly.
      GTY1000719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut

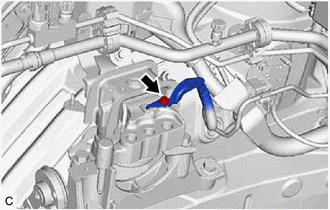

    4. Remove the bolt and disconnect the No. 2 earth wire from the engine mounting insulator sub-assembly RH.
      GTY1000573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

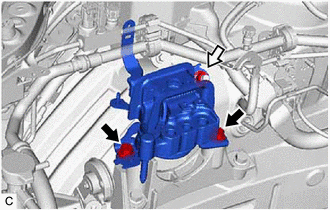

    5. Remove the 2 bolts, nut and engine mounting insulator sub-assembly RH.
      GTY1000564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
  58. REMOVE ENGINE MOUNTING SPACER

    HINT:

    Perform this procedure only when replacement of the engine mounting spacer is necessary.

    1. GTY880647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 bolts and engine mounting spacer from the vehicle body.

  59. REMOVE ENGINE MOUNTING INSULATOR LH

    HINT:

    Perform this procedure only when replacement of the engine mounting insulator LH is necessary.

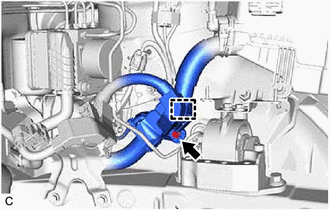

    1. Remove the bolt.
      GTY1000568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp to disconnect the engine room main wire.

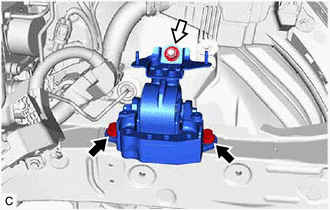

    3. Remove the 2 bolts, nut and engine mounting insulator LH.
      GTY1001195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
  60. INSTALL ENGINE ASSEMBLY TO ENGINE STAND
    1. Install the engine assembly to an engine stand.
  61. REMOVE ENGINE HANGERS
    1. Remove the 4 bolts, No. 1 engine hanger and No. 2 engine hanger from the cylinder head sub-assembly and engine mounting bracket RH.
scientia non olet · About LEMON Manuals
