Disassembly [10/2022 - ]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH

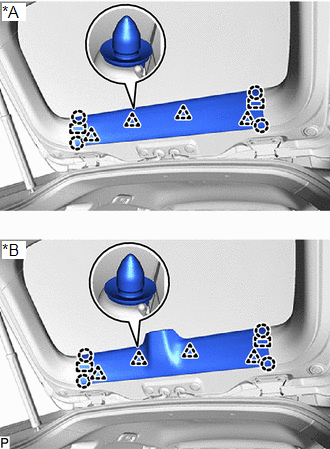

    1. Disengage the 4 claws, 4 clips and 2 guides to remove the back door center garnish.
      GTY1013336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Digital Inner Mirror
      *B w/ Digital Inner Mirror
  2. REMOVE BACK DOOR SIDE GARNISH LH

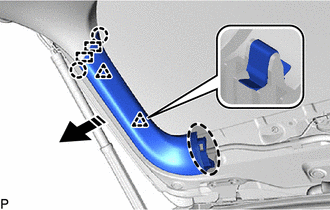

    1. Disengage the 2 clips, 2 claws and 2 guides to remove the back door side garnish LH as shown in the illustration.
      GTY1012494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
  3. REMOVE BACK DOOR SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  4. REMOVE BACK DOOR TRIM BASE

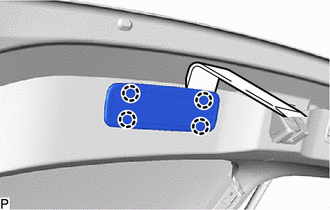

    1. Using a moulding remover, disengage the 4 claws to remove the back door trim base.
      GTY1012210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE DOOR PULL HANDLE

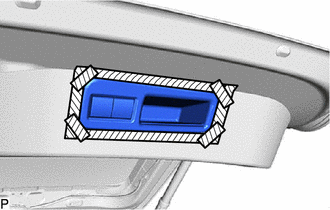

    1. Apply protective tape to the back door trim board assembly as shown in the illustration.
      GTY1017554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

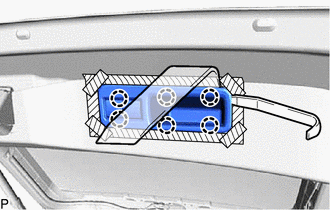

    2. Using a moulding remover, disengage the 6 claws as shown in the illustration.
      GTY1016774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

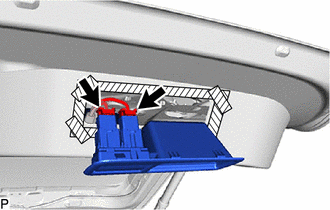

    3. Disconnect the 2 connectors to remove the door pull handle.
      GTY1016794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

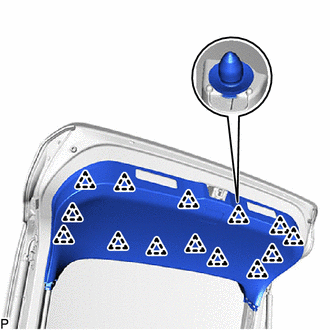

    1. Disengage the 14 clips to remove the back door trim board assembly.
      GTY1012576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 2 BACK DOOR SERVICE HOLE COVER

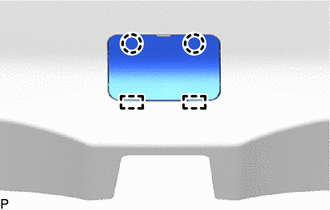

    1. Disengage the 2 claws and 2 guides to remove the No. 2 back door service hole cover.
      GTY1012575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH

    See step  7

  9. REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  10. REMOVE REAR INNER MIRROR CAMERA ASSEMBLY (w/ Digital Inner Mirror)

    Refer to PROCEDURE - Step 2

  11. REMOVE MULTIPLEX NETWORK DOOR ECU

    See step  7 [07/2020 - 10/2023], or see step  7 [10/2023 - ]

  12. REMOVE BACK DOOR WEIGHT

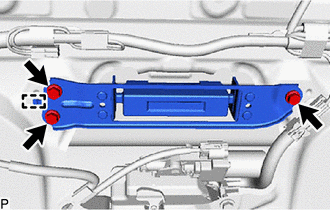

    1. Remove the 3 bolts.
      GTY1013294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the back door weight.
  13. REMOVE BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH

    Refer to PROCEDURE - Step 8

  14. REMOVE BACK DOOR LOWER STOPPER LH

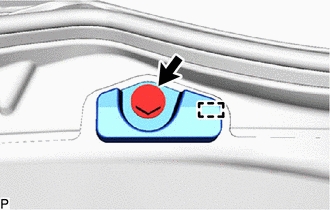

    1. Remove the bolt.
      GTY1012762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the back door lower stopper LH.
  15. REMOVE BACK DOOR LOWER STOPPER RH

    HINT:

    Use the same procedure as for the LH side.

  16. REMOVE HOLE PLUG

    Refer to PROCEDURE - Step 2

  17. REMOVE REAR SPOILER ASSEMBLY

    Refer to PROCEDURE - Step 3

  18. REMOVE REAR WIPER ARM HEAD CAP

    Refer to PROCEDURE - Step 7

  19. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY

    Refer to PROCEDURE - Step 8

  20. REMOVE REAR WIPER MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 9

  21. REMOVE REAR WIPER MOTOR GROMMET

    Refer to PROCEDURE - Step 10

  22. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY WITH LIGHT

    Refer to PROCEDURE - Step 2

  23. REMOVE LICENSE PLATE LIGHT ASSEMBLY WITH BACK DOOR OPENER SWITCH

    Refer to PROCEDURE - Step 2

  24. REMOVE REAR TELEVISION CAMERA ASSEMBLY

    Refer to PROCEDURE - Step 2

  25. REMOVE BACK DOOR DUST PROOF SEAL

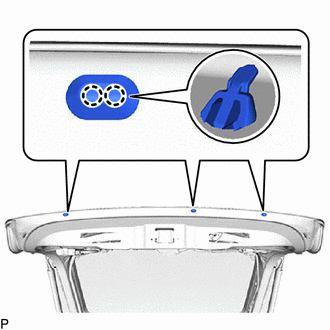

    1. Disengage the 2 claws to remove the back door dust proof seal.
      GTY1012779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for all back door dust proof seals.

  26. REMOVE BACK DOOR PANEL CUSHION

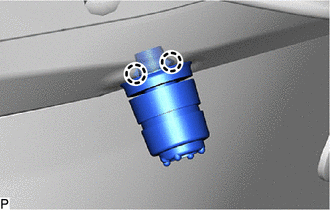

    1. Disengage the 2 claws to remove the back door panel cushion.
      GTY1012777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

  27. REMOVE POWER BACK DOOR UNIT SET ASSEMBLY LH

    See step  7

  28. REMOVE POWER BACK DOOR UNIT SET ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  29. REMOVE BACK DOOR DAMPER STAY UPPER BRACKET LH

    See step  8

  30. REMOVE BACK DOOR DAMPER STAY UPPER BRACKET RH

    HINT:

    Use the same procedure as for the LH side.

  31. REMOVE BACK DOOR DAMPER STAY LOWER BRACKET LH

    See step  9

  32. REMOVE BACK DOOR DAMPER STAY LOWER BRACKET RH

    HINT:

    Use the same procedure as for the LH side.

  33. REMOVE ROOF HEADLINING ASSEMBLY (w/ Navigation System)

    Refer to REMOVAL [10/2022 - ]

  34. REMOVE NO. 5 ANTENNA CORD SUB-ASSEMBLY (w/ Navigation System)

    Refer to PROCEDURE - Step 8

  35. REMOVE NO. 6 ANTENNA CORD SUB-ASSEMBLY (w/ Navigation System)

    Refer to PROCEDURE - Step 9

  36. REMOVE NO. 1 AMPLIFIER ANTENNA ASSEMBLY (w/ Navigation System)

    Refer to PROCEDURE - Step 7
