Removal [07/2020 - ]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH

    Refer to PROCEDURE - Step 1 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - ]

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 2 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - ]

  3. REMOVE BACK DOOR SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  4. REMOVE BACK DOOR TRIM BASE

    Refer to PROCEDURE - Step 4 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 4 [10/2022 - ]

  5. REMOVE DOOR PULL HANDLE

    Refer to PROCEDURE - Step 5 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - ]

  6. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    Refer to PROCEDURE - Step 6 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 6 [10/2022 - ]

  7. REMOVE REAR WIPER ARM HEAD CAP

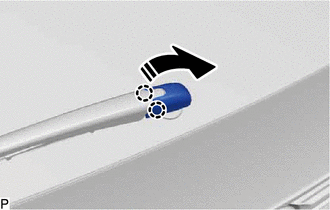

    1. Disengage the 2 claws and open the rear wiper arm head cap as shown in the illustration.
      GTY989580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

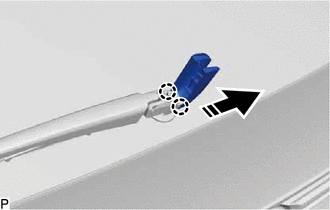

    2. Disengage the 2 claws to remove the rear wiper arm head cap as shown in the illustration.
      GTY989614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  8. REMOVE REAR WIPER ARM AND BLADE ASSEMBLY
    1. Remove the nut and rear wiper arm and blade assembly.

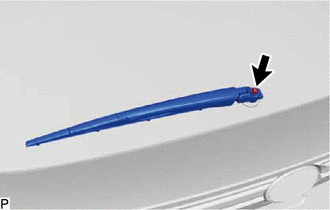

      GTY989378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR WIPER MOTOR ASSEMBLY
    1. Disconnect the connector.

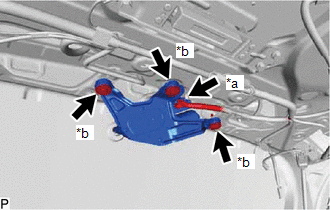

      GTY990204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Connector
      *b Bolt
    2. Remove the 3 bolts and rear wiper motor assembly.
      NOTE:

      Be careful not to scratch the back door glass.

  10. REMOVE REAR WIPER MOTOR GROMMET
    1. Remove the rear wiper motor grommet.

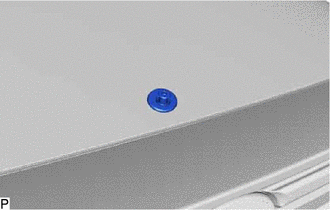

      GTY988916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
