Removal [07/2020 - ]: Procedure

  1. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY WITH LIGHT

    Refer to REMOVAL [07/2020 - ]

  2. REMOVE REAR TELEVISION CAMERA ASSEMBLY
    1. w/ Rear camera washer:

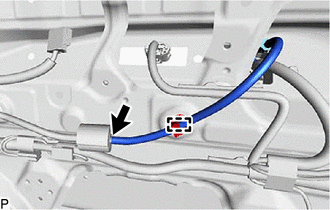

      1. Disconnect the washer hose.
        GTY988398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        Use a container to collect the windshield washer fluid.

      2. Disengage the clamp.

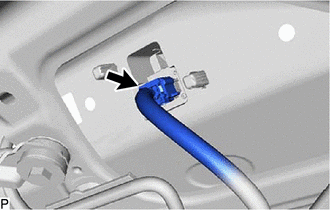

    2. Disconnect the connector.
      GTY988396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

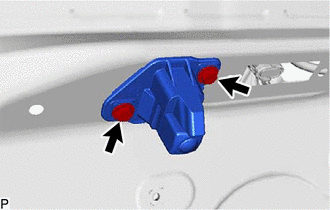

    3. Remove the 2 screws.
      GTY988395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

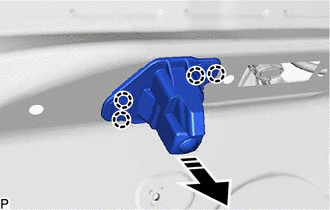

    4. Disengage the 4 claws and remove the rear television camera assembly as shown in the illustration.
      GTY987526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    5. When reusing the rear television camera assembly:

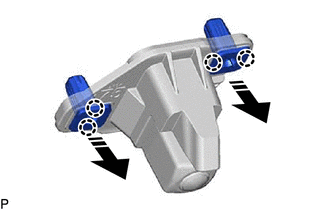

      1. Disengage the 4 claws to remove the 2 grommets as shown in the illustration.
        GTY987310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
