Removal [07/2020 - ]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH

    Refer to PROCEDURE - Step 1 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - ]

  2. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 2 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - ]

  3. REMOVE BACK DOOR SIDE GARNISH RH

    Refer to PROCEDURE - Step 3 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 3 [10/2022 - ]

  4. REMOVE BACK DOOR TRIM BASE

    Refer to PROCEDURE - Step 4 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 4 [10/2022 - ]

  5. REMOVE DOOR PULL HANDLE

    Refer to PROCEDURE - Step 5 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - ]

  6. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    Refer to PROCEDURE - Step 6 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 6 [10/2022 - ]

  7. REMOVE NO. 1 AMPLIFIER ANTENNA ASSEMBLY

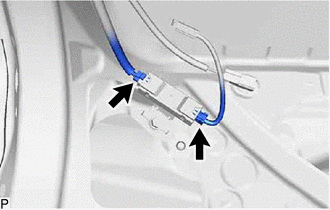

    1. Disconnect the 2 connectors.
      GTY987910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

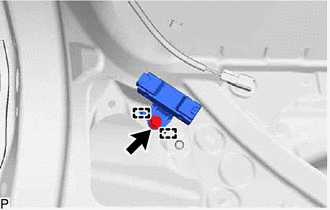

    2. Remove the bolt.
      GTY987911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 guides to remove the No. 1 amplifier antenna assembly.
