Removal [08/2015 - 08/2017]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2015 - 08/2017] ).

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2017] ).

  3. REMOVE LOWER NO. 2 STEERING WHEEL COVER

    Refer to PROCEDURE - Step 4

  4. REMOVE LOWER NO. 3 STEERING WHEEL COVER

    Refer to PROCEDURE - Step 3

  5. REMOVE STEERING PAD

    Refer to PROCEDURE - Step 5

  6. REMOVE STEERING WHEEL ASSEMBLY

    Refer to PROCEDURE - Step 6

  7. REMOVE LOWER STEERING COLUMN COVER

    Refer to PROCEDURE - Step 8

  8. REMOVE UPPER STEERING COLUMN COVER

    Refer to PROCEDURE - Step 9

  9. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  10. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 12

  11. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 14

  12. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Refer to PROCEDURE - Step 16

  13. REMOVE FRONT PILLAR GARNISH LH

    Refer to PROCEDURE - Step 26

  14. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 15

  15. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  16. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 17

  17. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 7

  18. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8

  19. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  20. REMOVE REAR CONSOLE BOX POCKET

    Refer to PROCEDURE - Step 11

  21. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  22. REMOVE CONSOLE BOX CARPET

    Refer to PROCEDURE - Step 12

  23. REMOVE REAR CONSOLE BOX ASSEMBLY

    Refer to PROCEDURE - Step 13

  24. REMOVE FRONT CONSOLE BOX

    Refer to PROCEDURE - Step 14

  25. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 26

  26. REMOVE COMBINATION METER ASSEMBLY

    See step  8

  27. REMOVE CENTER LOWER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 28

  28. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY

    Refer to PROCEDURE - Step 16

  29. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY (w/o Navigation System)

    Refer to PROCEDURE - Step 12

  30. REMOVE NAVIGATION RECEIVER ASSEMBLY (w/ Navigation System)

    Refer to PROCEDURE - Step 12

  31. REMOVE INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 36

  32. REMOVE FRONT DOOR SCUFF PLATE RH

    Refer to PROCEDURE - Step 11

  33. REMOVE COWL SIDE TRIM BOARD RH

    Refer to PROCEDURE - Step 13

  34. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

    Refer to PROCEDURE - Step 15

  35. REMOVE FRONT PILLAR GARNISH RH

    Refer to PROCEDURE - Step 25

  36. REMOVE LOWER INSTRUMENT PANEL

    Refer to PROCEDURE - Step 38

  37. REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 8

  38. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 37

  39. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 40

  40. REMOVE NO. 2 INSTRUMENT PANEL BOX DOOR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 41

  41. REMOVE FRONT SEAT HEADREST ASSEMBLY (for 14 Speakers)
  42. REMOVE SEAT TRACK INNER COVER RH (for 14 Speakers)

    Refer to PROCEDURE - Step 3

  43. REMOVE SEAT TRACK OUTER COVER RH (for 14 Speakers)

    Refer to PROCEDURE - Step 4

  44. REMOVE FRONT RH SEAT ASSEMBLY (for 14 Speakers)

    Refer to PROCEDURE - Step 6

  45. REMOVE AUDIO AMPLIFIER COVER (for 14 Speakers)

    Refer to PROCEDURE - Step 4

  46. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY (for 14 Speakers)

    Refer to PROCEDURE - Step 5

  47. REMOVE REAR NO. 4 AIR DUCT (for 14 Speakers)

    Refer to PROCEDURE - Step 72

  48. REMOVE INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 42

  49. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY LH

    Refer to PROCEDURE - Step 6

  50. REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 44

  51. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY RH

    Refer to PROCEDURE - Step 5

  52. REMOVE NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 46

  53. REMOVE FRONT NO. 4 SPEAKER ASSEMBLY (for 14 Speakers)

    Refer to PROCEDURE - Step 8

  54. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY (for 14 Speakers)

    Refer to PROCEDURE - Step 55

  55. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY (for 8 Speakers)

    Refer to PROCEDURE - Step 56

  56. REMOVE NO. 3 INSTRUMENT PANEL STAY

    Refer to PROCEDURE - Step 57

  57. REMOVE NO. 1 HEATER TO REGISTER DUCT

    Refer to PROCEDURE - Step 59

  58. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT

    Refer to PROCEDURE - Step 60

  59. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT

    Refer to PROCEDURE - Step 61

  60. REMOVE DEFROSTER NOZZLE ASSEMBLY

    Refer to PROCEDURE - Step 62

  61. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 64

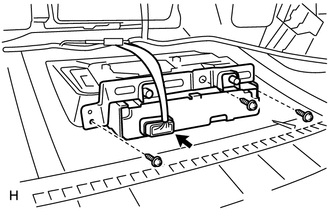

  62. REMOVE ACCESSORY METER ASSEMBLY
    1. Disconnect the connector.
      GTY446901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 screws and accessory meter assembly from the instrument panel sub-assembly.
