Removal [08/2015 - 08/2018]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work. Refer to:
PRECAUTION [08/2015 - 08/2017] , or
PRECAUTION [08/2017 - 08/2019] . - DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to:
- REMOVE FRONT DOOR SCUFF PLATE RH
Refer to:
- REMOVE COWL SIDE TRIM BOARD RH
Refer to:
- REMOVE INSTRUMENT SIDE PANEL RH
Refer to:
- REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to:
- REMOVE LOWER INSTRUMENT PANEL
Refer to:

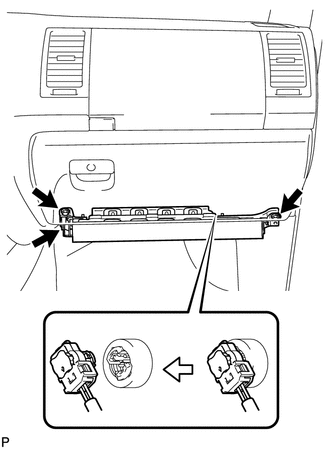

- REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
