Removal [09/2016 - 12/2018]: Procedure

  1. REMOVE FRONT WHEEL LH

    Refer to PROCEDURE - Step 1

  2. REMOVE FRONT FENDER LINER LH

    Refer to PROCEDURE - Step 2

  3. REMOVE RADIATOR SUPPORT OPENING COVER

    Refer to PROCEDURE - Step 3

  4. REMOVE HOOD LOCK ASSEMBLY

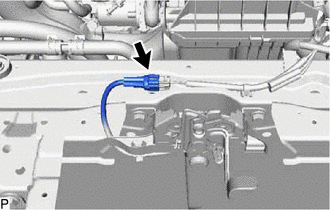

    1. Disconnect the connector.
      GTY740605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

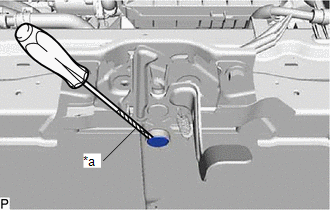

    2. Using a screwdriver with its tip wrapped with protective tape, remove the hood lock nut cap.
      GTY703146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

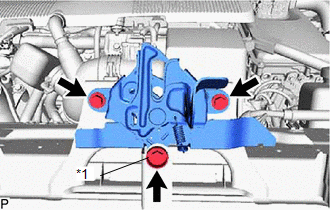

    3. Remove the 2 bolts and hood lock bolt.
      GTY689196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hood Lock Bolt

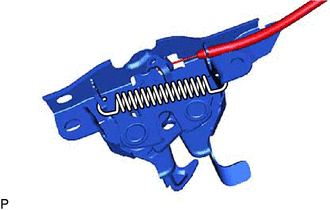

    4. Disconnect the hood lock control cable assembly to remove the hood lock assembly.
      GTY725033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  6. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  7. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. for Type A:
      1. Disconnect the hood lock control cable assembly to remove the hood lock control lever sub-assembly.
        GTY810464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        When changing the hood lock control lever sub-assembly from type A to type B, the hood lock control cable assembly must also be changed to type B.

    2. for Type B:
      1. Disconnect the hood lock control cable assembly to remove the hood lock control lever sub-assembly.
        GTY810465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        When changing the hood lock control lever sub-assembly from type B to type A, the hood lock control cable assembly must also be changed to type A.

  8. REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY

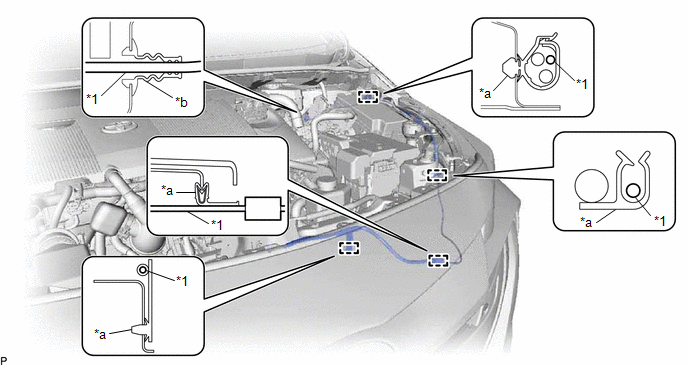

    1. Using a screwdriver, disengage the 4 clamps and grommet as shown in the illustration.
      GTY707294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hood Lock Control Cable Assembly - -
      *a Clamp *b Grommet

      HINT:

      Tape the screwdriver tip before use.

    2. Pull the hood lock control cable assembly from the engine compartment to remove it.

      HINT:

      • When changing the hood lock control cable assembly from type A to type B, the hood lock control lever sub-assembly must also be changed to type B.
      • When changing the hood lock control cable assembly from type B to type A, the hood lock control lever sub-assembly must also be changed to type A.
      GTY779828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Type A
      *B Type B
