Removal [09/2016 - 05/2019]: Procedure

1. Change the grille shutter control mode to maintenance mode.

   Refer to INITIALIZATION [09/2016 - ]

   NOTE:

   Make sure to change the grille shutter control mode to maintenance mode to prevent the grill shutter from opening or closing when the power switch is off.

HINT:

Perform this procedure only when replacement of the front bumper reinforcement sub-assembly is necessary.

Refer to PROCEDURE - Step 1

1. Remove the 7 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

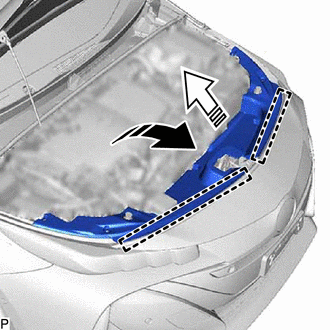

2. Disengage the 2 guides and remove the radiator support opening cover as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Remove in this Direction (1)
   	Remove in this Direction (2)

1. Apply protective tape around the front bumper assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

   HINT:

   Use the same procedure for the RH side and LH side.

2. Using a screwdriver, turn each pin 90 degrees and remove the 2 pin hold clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Pin Hold Clip
   *a	90 deg
   	Remove in this Direction (1)
   	Remove in this Direction (2)

   HINT:

   Use the same procedure for the RH side and LH side.

3. Remove the screw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use the same procedure for the RH side and LH side.

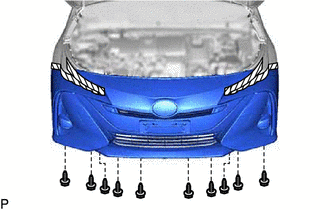

4. Remove the 10 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

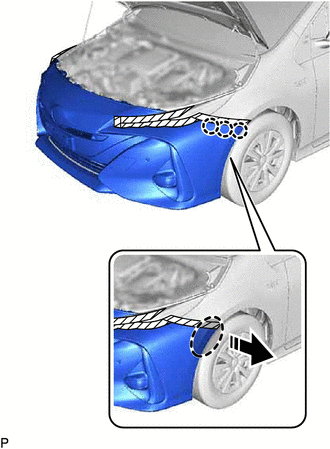

5. Disengage the 3 claws as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Place Hand Here
   	Remove in this Direction

   HINT:

   Use the same procedure for the RH side and LH side.

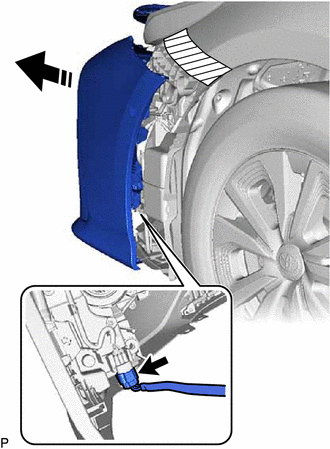

6. Pull back the side of the front bumper assembly and disconnect the connector.
   NOTE:

   Do not apply excessive force when pulling back the front bumper assembly.

   HINT:

   Use the same procedure for the RH side and LH side.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

7. w/ Intuitive Parking Assist System:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	w/ Intuitive Parking Assist System

   1. Disconnect the connector.
8. Disconnect the connector.

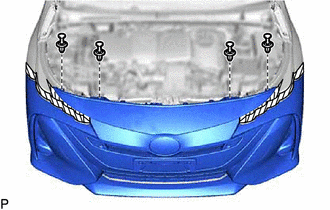

9. Remove the 4 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

10. Remove the 2 bolts and front bumper assembly as shown in the illustration.

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Remove in this Direction
