Removal [09/2016 - 05/2019]: Procedure

  1. PRECAUTION

    Refer to PRECAUTION [09/2016 - ]

    WARNING:
    • Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.
      GTY607029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Refer to PRECAUTION [09/2016 - 05/2019]

    • Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [09/2016 - 01/2018] , or refer to PRECAUTION [01/2018 - 05/2019]

  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  3. REMOVE UPPER INSTRUMENT PANEL ASSEMBLY

    Refer to REMOVAL [09/2016 - ]

  4. REMOVE REAR CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [09/2016 - 05/2019]

  5. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
    1. Using a molding remover, disengage the 6 clips as shown in the illustration.
      GTY690996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the 3 guides to remove the instrument panel finish panel end LH as shown in the illustration.

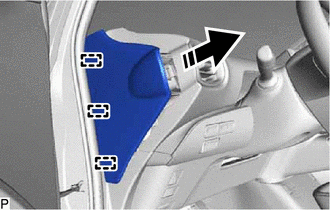

      GTY708640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  6. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY
    1. Disengage the 4 clips and claw as shown in the illustration.

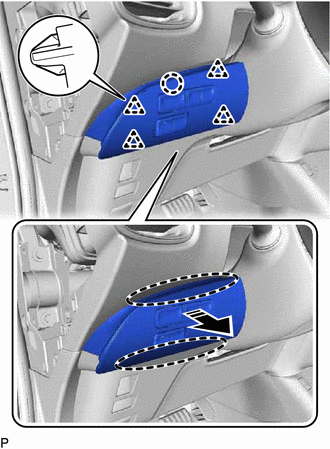

      GTY703135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
    2. Disconnect each connector to remove the instrument cluster finish panel garnish assembly.
  7. REMOVE FRONT DOOR SCUFF PLATE LH

    See step  10

  8. REMOVE COWL SIDE TRIM BOARD LH

    See step  11

  9. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Remove the 2 screws <F>.
      GTY554346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw as shown in the illustration.

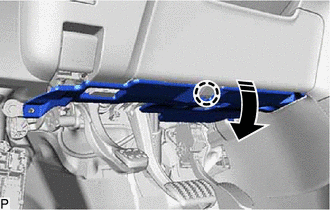

      GTY540651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Disengage the guide as shown in the illustration.

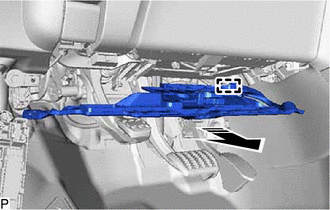

      GTY564360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    4. Disconnect the connector to remove the No. 1 instrument panel under cover sub-assembly.
  10. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Disengage the claw and 2 guides to disconnect the hood lock control lever sub-assembly.
      GTY554338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
    1. Remove the screw <C>.

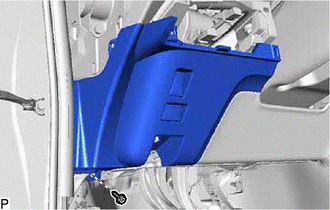

      GTY713587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 6 clips and 2 guides as shown in the illustration.

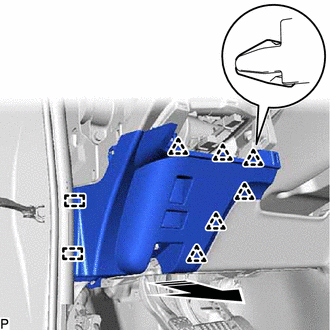

      GTY695438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Disconnect each connector to remove the lower instrument panel finish panel assembly.
  12. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 10

  13. REMOVE COMBINATION METER ASSEMBLY

    Refer to PROCEDURE - Step 10

  14. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

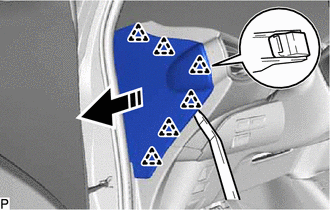

    1. Using a molding remover, disengage the 6 clips as shown in the illustration.

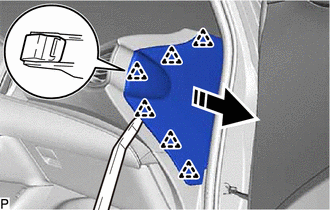

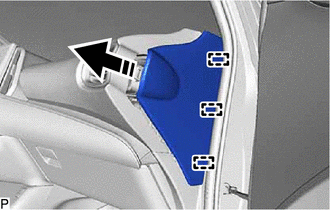

      GTY712040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the 3 guides as shown in the illustration.
      GTY728705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Remove the instrument panel finish panel end RH.
  15. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 7 Inch Display)
    1. Remove the clip.

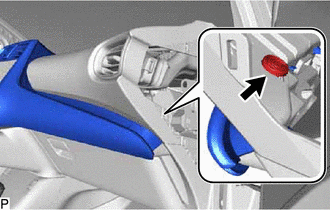

      GTY713529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 6 clips and 4 guides as shown in the illustration.

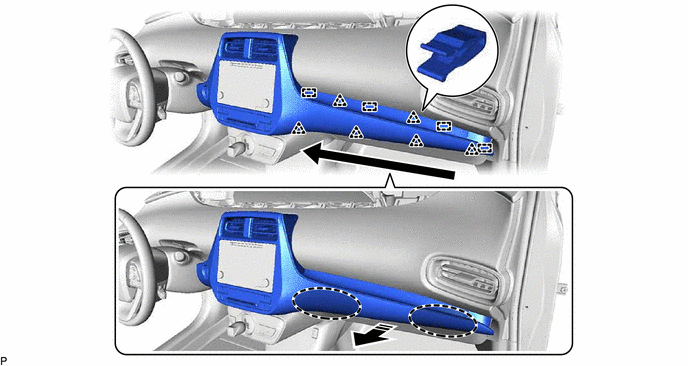

      GTY733330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
      Order of Removal - -

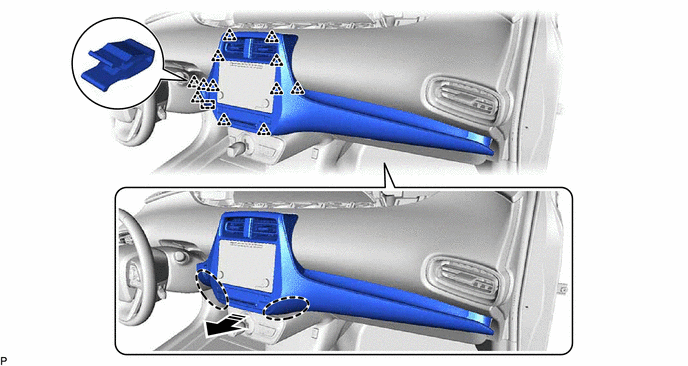

    3. Disengage the 12 clips and guide as shown in the illustration.
      GTY701226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
    4. Disconnect each connector.
    5. Determine the type of air conditioning control assembly according to the illustration.

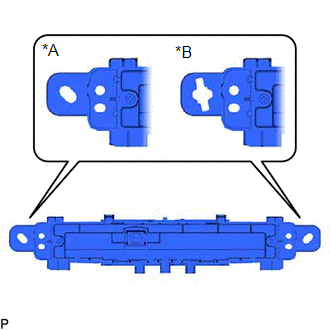

      GTY769737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Type A
      *B for Type B
    6. for Type A:
      1. Remove the air conditioning control assembly from center instrument cluster finish panel sub-assembly and then disengage the clamp as shown in the illustration.

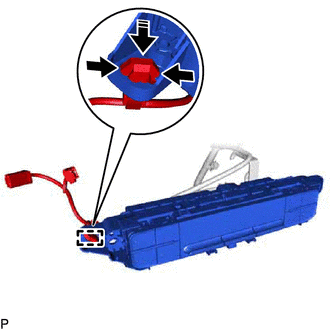

        GTY759347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Push
        Remove in this Direction
    7. for Type B:

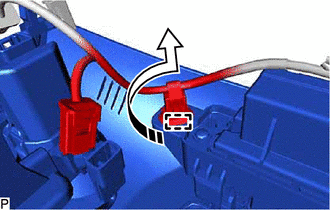

      1. Disengage the clamp as shown in the illustration.
        GTY749790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
    8. Remove the center instrument cluster finish panel sub-assembly.
  16. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL UPPER (for 11.6 Inch Display)
    1. Apply protective tape to the areas shown in the illustration.

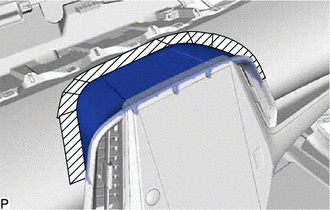

      GTY710239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Using a molding remover, disengage the 4 clips as shown in the illustration.

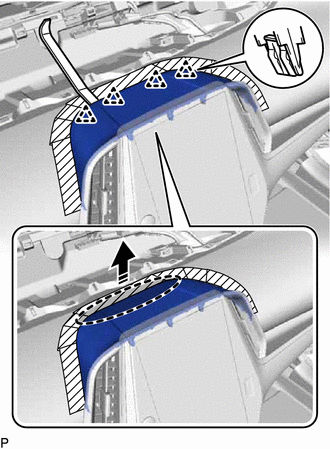

      GTY727885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Molding Remover Here
      Remove in this Direction

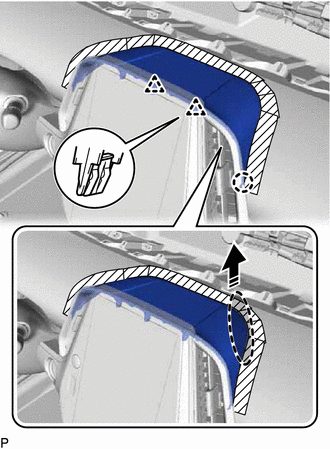

    3. Disengage the claw and 2 clips as shown in the illustration.
      GTY707154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction

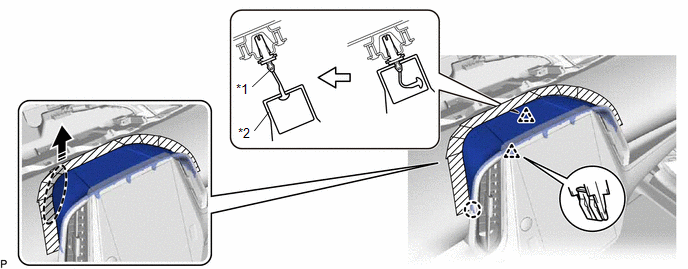

    4. Disengage the claw, clip and base of the front pillar garnish clip as shown in the illustration.
      GTY721275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Pillar Garnish Clip *2 Lower Instrument Panel Sub-assembly
      Place Hand Here Remove in this Direction
    5. While pushing the tabs of the front pillar garnish clip as shown in the illustration, remove the center instrument cluster finish panel upper.

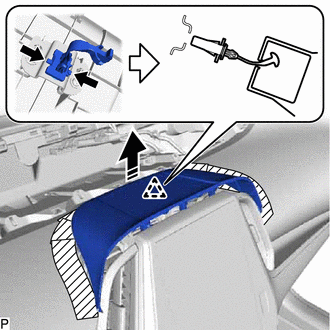

      GTY724471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      NOTE:
      • The front pillar garnish clip is reusable if it is not damaged.
      • If the front pillar garnish clip is damaged, replace it with a new one.

      HINT:

      When the front pillar garnish clip cannot be disengaged easily:

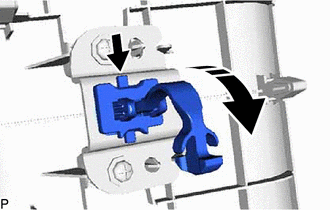

      1. While pushing the tab of the front pillar garnish clip shown in the illustration with your finger, move the front pillar garnish clip in the direction shown in the illustration.
        GTY696781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Move in this Direction
      2. While pulling the front pillar garnish clip as shown in the illustration, push the tab of the front pillar garnish clip shown in the illustration with a screwdriver and disengage the front pillar garnish clip.

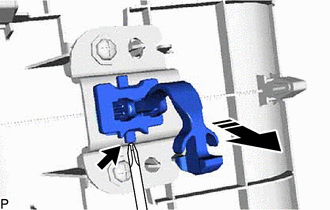

        GTY691150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Pull in this Direction
  17. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY WITH NAVIGATION RECEIVER ASSEMBLY (for 11.6 Inch Display)
    1. Apply protective tape to the areas shown in the illustration.

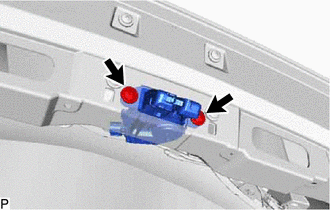

      GTY719937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Remove the clip.

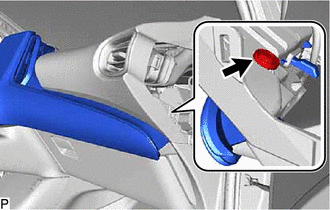

      GTY713524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts <B>.

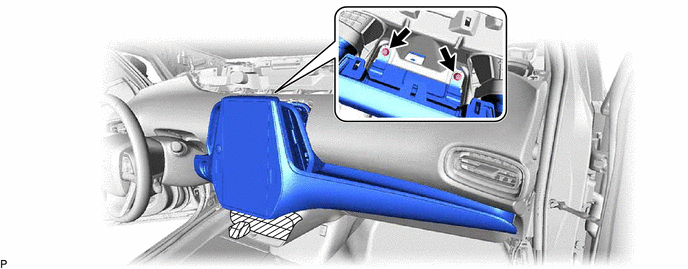

      GTY713527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

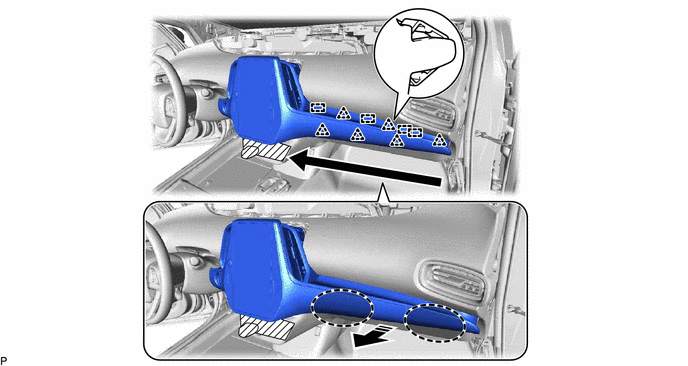

    4. Disengage the 6 clips and 4 guides as shown in the illustration.
      GTY738524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
      Order of Removal - -
    5. Disengage the 10 clips and guide as shown in the illustration.

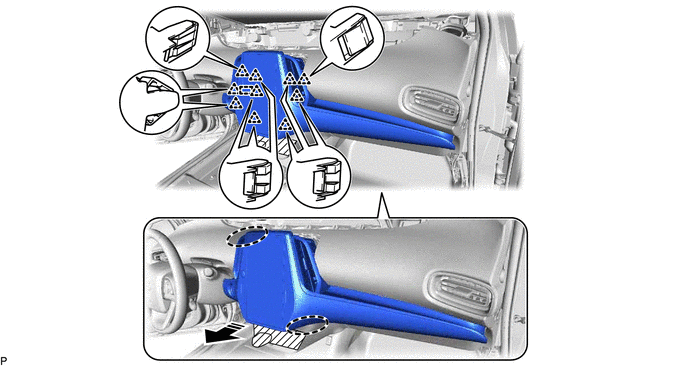

      GTY693565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
    6. Disconnect each connector.
    7. Disengage the clamp to remove the center instrument cluster finish panel sub-assembly with navigation receiver assembly.
  18. REMOVE NAVIGATION RECEIVER ASSEMBLY WITH BRACKET (for 7 Inch Display)

    Refer to PROCEDURE - Step 5

  19. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  20. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedure as for the LH side.

  21. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

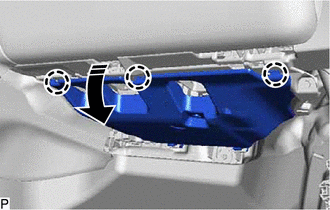

    1. Disengage the 3 claws as shown in the illustration.
      GTY552117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

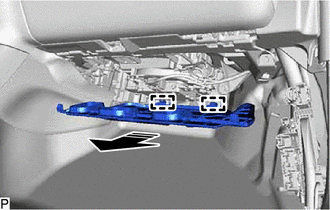

    2. Disengage the 2 guides as shown in the illustration.
      GTY561517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Disconnect the connector to remove the No. 2 instrument panel under cover sub-assembly.
  22. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Disengage the claw to disconnect the glove compartment door stopper sub-assembly.

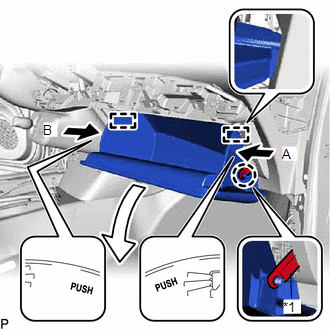

      GTY695707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Glove Compartment Door Stopper Sub-assembly
    2. Slightly bend the stoppers (A) and (B) in the directions indicated by the arrows shown in the illustration and open the glove compartment door assembly until the stoppers are released.

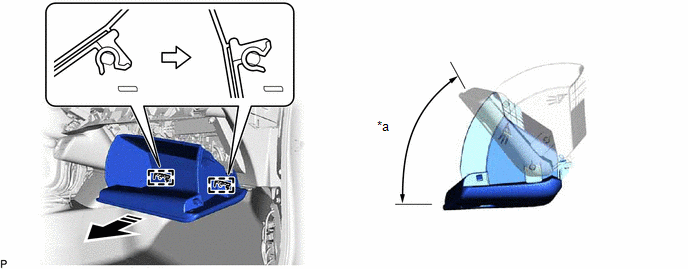

    3. Open the glove compartment door assembly to approximately 64.2° from its closed position. Pull it horizontally as shown in the illustration to disengage the 2 hinges and remove the glove compartment door assembly.
      GTY690660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 64.2° - -
      Remove in this Direction - -
      NOTE:

      Pulling the glove compartment door assembly upward when removing it will cause the hinges to deform. Be sure to pull out the glove compartment door assembly horizontally.

  23. REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
    1. Disengage the claw to remove the glove compartment door stopper sub-assembly.

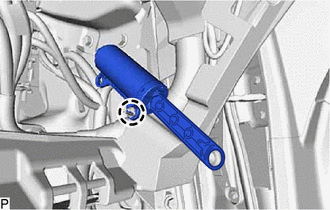

      GTY554001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Using a molding remover, disengage the 2 clips as shown in the illustration.

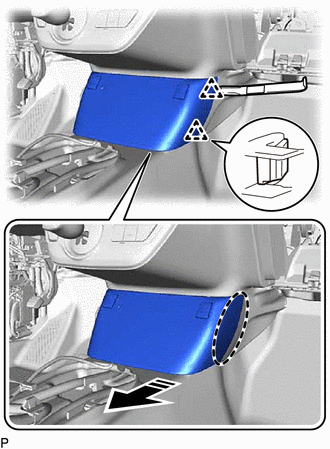

      GTY709270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Molding Remover Here
      Remove in this Direction
    2. Using a molding remover, disengage the 2 clips as shown in the illustration.
      GTY737144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Molding Remover Here
      Remove in this Direction
    3. Disengage the clip as shown in the illustration.

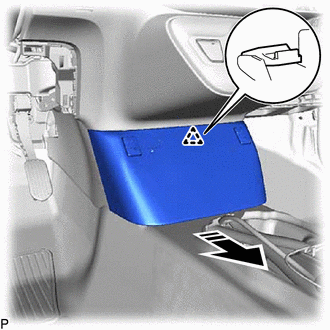

      GTY704929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    4. Disconnect each connector.
    5. Disengage each clamp to remove the lower center instrument cluster finish panel sub-assembly.
  25. REMOVE SHIFTING HOLE COVER

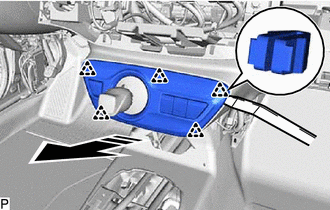

    1. Using a molding remover, disengage the 5 clips as shown in the illustration.
      GTY717479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disconnect each connector to remove the shifting hole cover.
  26. REMOVE NO. 2 LOWER INSTRUMENT PANEL FINISH PANEL
    1. Disengage the 4 clips as shown in the illustration.

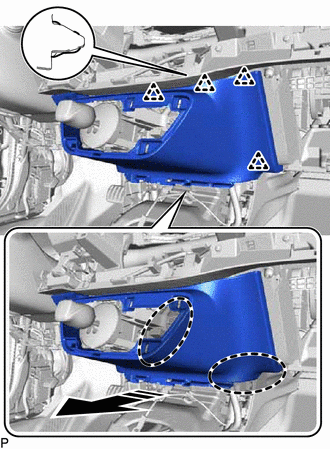

      GTY587315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
    2. Disengage the 5 clips as shown in the illustration.

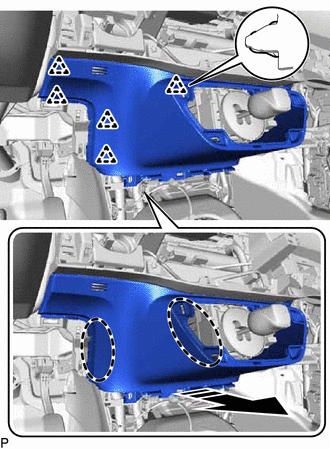

      GTY544757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
    3. Disengage each clamp to remove the No. 2 lower instrument panel finish panel.
  27. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Apply protective tape to the areas shown in the illustration.

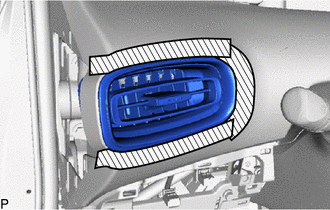

      GTY584490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

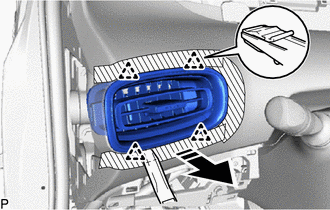

    2. Using a molding remover, disengage the 4 clips to remove the No. 1 instrument panel register assembly as shown in the illustration.
      GTY563018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  28. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Apply protective tape to the areas shown in the illustration.
      GTY560469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

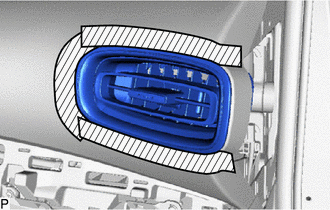

    2. Using a molding remover, disengage the 4 clips to remove the No. 2 instrument panel register assembly as shown in the illustration.

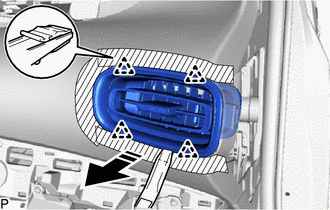

      GTY570164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  29. REMOVE GLOVE BOX LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 2

  30. DISCONNECT NO. 2 INSTRUMENT PANEL WIRE

    Refer to PROCEDURE - Step 3

  31. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

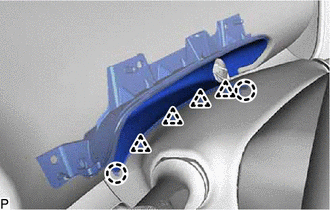

    1. Disengage the 2 claws and 4 clips to disconnect the lower instrument cover sub-assembly from the upper steering column cover.
      GTY600932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

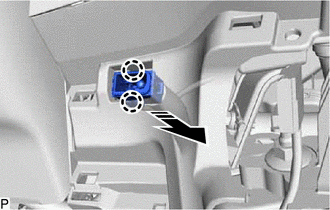

    2. GTY560933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      Disengage the 2 claws to disconnect the cooler (room temp. sensor) thermistor as shown in the illustration.

    3. for 7 Inch Display:
      1. Disconnect each connector.

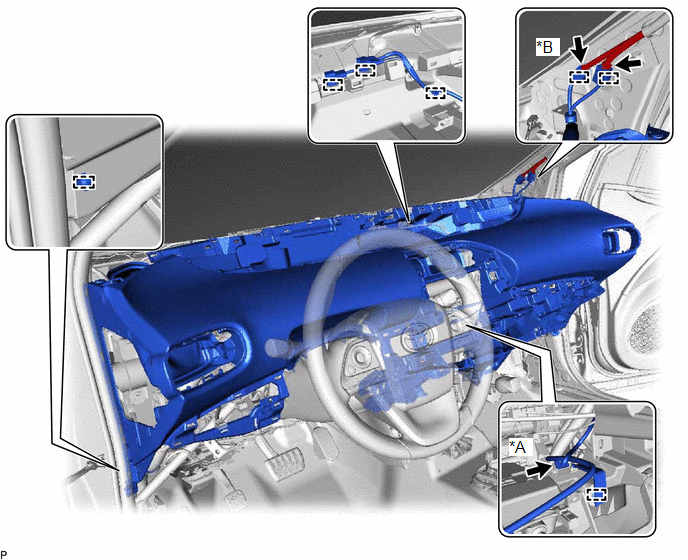

        GTY553810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Telematics Transceiver *B w/ Satellite Radio
      2. Disengage each clamp.
      3. Remove the 2 clips.

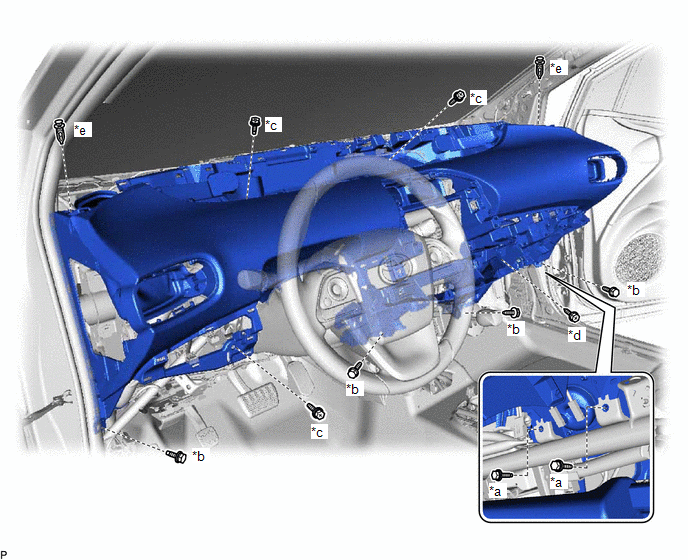

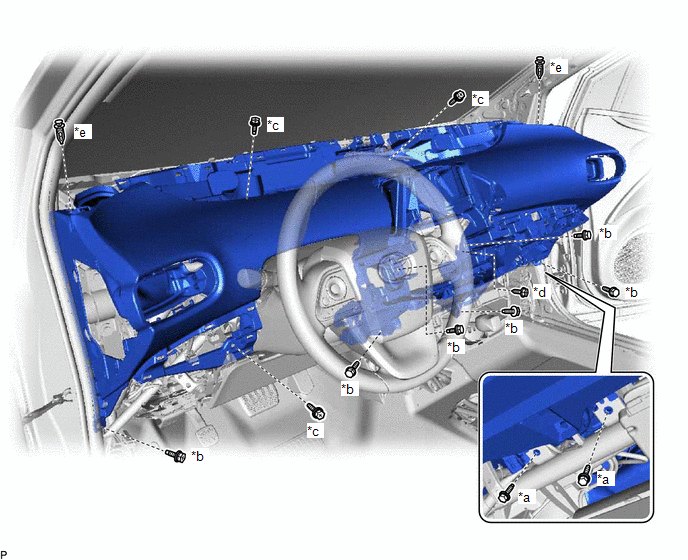

        GTY604268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Bolt <A> *b Bolt <B>
        *c Screw <C> or <G> *d Screw <D>
        *e Clip - -
      4. Remove the 2 bolts <A>, 4 bolts <B>, 3 screws <C> or <G> and screw <D> and remove the lower instrument panel sub-assembly.
        NOTE:
        • Do not damage the lower instrument panel sub-assembly.
        • Do not allow the wire harnesses to interfere with the surrounding parts.
    4. for 11.6 Inch Display:
      1. Disconnect each connector.
        GTY712486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A w/ Telematics Transceiver *B w/ Satellite Radio
      2. Disengage each clamp.
      3. Remove the 2 clips.
        GTY728710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Bolt <A> *b Bolt <B>
        *c Screw <C> or <G> *d Screw <D>
        *e Clip - -
      4. Remove the 2 bolts <A>, 6 bolts <B>, 3 screws <C> or <G>, screw <D> and lower instrument panel sub-assembly.
        NOTE:
        • Do not damage the lower instrument panel sub-assembly.
        • Do not allow the wire harnesses to interfere with the surrounding parts.
scientia non olet · About LEMON Manuals
