Removal [09/2016 - 12/2018]: Procedure

  1. REMOVE FRONT WHEEL LH

    Refer to REMOVAL [09/2016 - 07/2020]

  2. REMOVE FRONT FENDER LINER LH

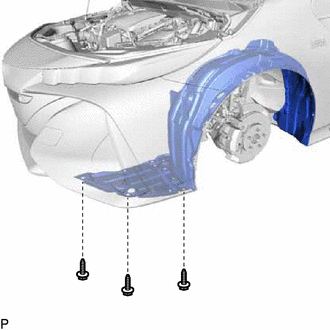

    1. Remove the 3 screws.
      GTY729336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

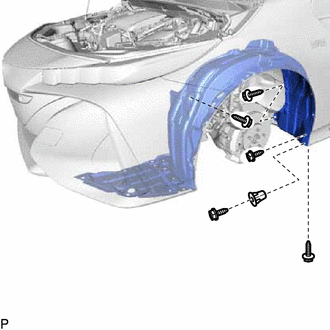

    2. Remove the 5 screws and grommet.
      GTY729334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

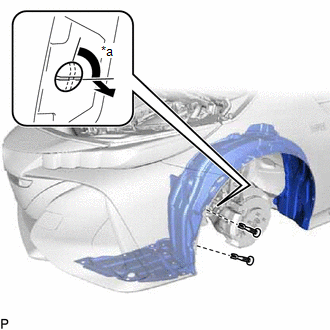

    3. Using a screwdriver, turn each pin hold clip 90 degrees and remove the 2 pin hold clips.
      GTY740062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 90°

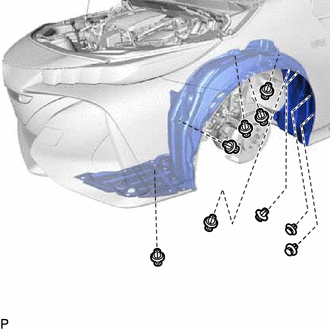

    4. Remove the 9 clips and front fender liner LH.
      GTY724894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. DRAIN WASHER FLUID

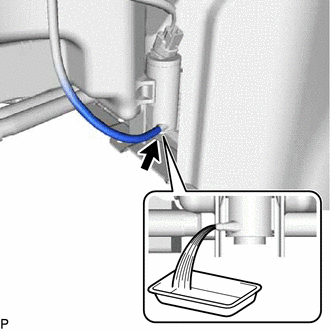

    1. Disconnect the washer hose from the windshield washer motor and pump assembly, and drain the washer fluid.
      GTY709522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use a container to collect the washer fluid.

  4. REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

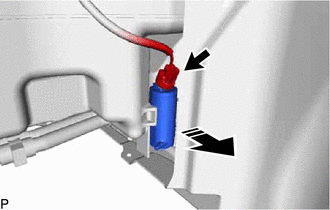

    1. Disconnect the connector.
      GTY733782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Remove the windshield washer motor and pump assembly as shown in the illustration.
