Disassembly [09/2016 - 05/2019]: Procedure

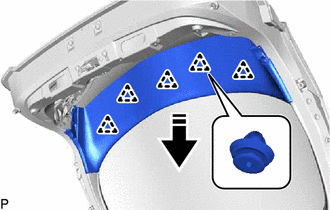

- REMOVE BACK DOOR UPPER TRIM PANEL ASSEMBLY

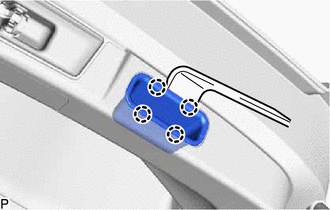

- REMOVE DOOR PULL HANDLE
- REMOVE BACK DOOR TRIM BOARD ASSEMBLY

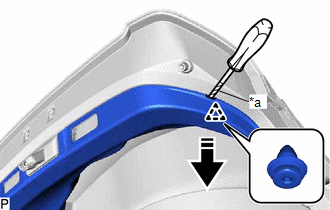

- Using a screwdriver with its tip wrapped with protective tape, disengage the clip as shown in the illustration.

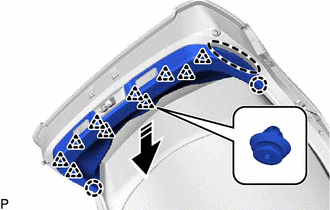

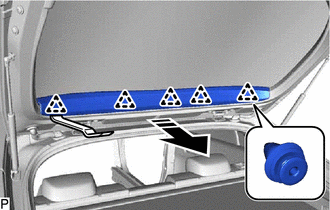

*a Protective Tape Remove in this Direction - Disengage the 10 clips and 2 claws to remove the back door trim board assembly as shown in the illustration.
Place Hand Here Remove in this Direction

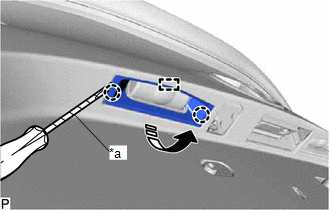

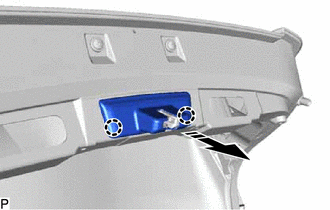

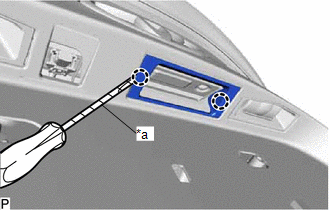

- Using a screwdriver with its tip wrapped with protective tape, disengage the clip as shown in the illustration.
- REMOVE BACK DOOR LOCK COVER
- REMOVE BACK DOOR TRIM BOARD
- REMOVE BACK DOOR LOCK ASSEMBLY
Refer to PROCEDURE - Step 4

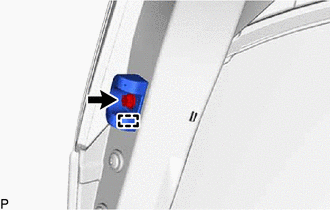

- REMOVE BACK DOOR LOWER STOPPER
HINT:
Use the same procedure for the RH side and LH side.
- REMOVE BACK DOOR OUTSIDE GARNISH ASSEMBLY
Refer to PROCEDURE - Step 6
- REMOVE CENTER STOP LIGHT SET
Refer to PROCEDURE - Step 2
- REMOVE REAR LIGHT ASSEMBLY LH
Refer to PROCEDURE - Step 3
- REMOVE REAR LIGHT ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- REMOVE BACK DOOR OPENER SWITCH ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE BACK DOOR NO. 1 FINISH PANEL PROTECTOR
- REMOVE BACK DOOR FINISH PANEL COVER
HINT:
Use the same procedure for the RH side and LH side.
- REMOVE LICENSE PLATE LIGHT ASSEMBLY
Refer to PROCEDURE - Step 4
- REMOVE REAR TELEVISION CAMERA ASSEMBLY
Refer to PROCEDURE - Step 3
- REMOVE BACK DOOR PANEL CUSHION
- REMOVE BACK DOOR STAY ASSEMBLY LH
Refer to PROCEDURE - Step 1
- REMOVE BACK DOOR STAY ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- REMOVE BACK DOOR STAY BOLT
Refer to PROCEDURE - Step 3
- REMOVE TONNEAU COVER ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE REAR NO. 2 FLOOR BOARD
Refer to PROCEDURE - Step 2
- REMOVE REAR NO. 4 FLOOR BOARD
Refer to PROCEDURE - Step 3
- REMOVE REAR NO. 3 FLOOR BOARD
Refer to PROCEDURE - Step 4
- REMOVE REAR NO. 1 FLOOR BOARD
Refer to PROCEDURE - Step 5
- REMOVE DECK FLOOR BOX LH
Refer to PROCEDURE - Step 6
- REMOVE DECK FLOOR BOX RH
Refer to PROCEDURE - Step 7
- REMOVE DECK TRIM SERVICE HOLE COVER
See step 2
- REMOVE REAR DECK TRIM COVER
Refer to PROCEDURE - Step 9
- REMOVE REAR SEAT HEADREST ASSEMBLY
Refer to PROCEDURE - Step 1
- REMOVE REAR SEATBACK ASSEMBLY LH
Refer to PROCEDURE - Step 3
- REMOVE REAR SEAT CUSHION ASSEMBLY LH
Refer to PROCEDURE - Step 6
- REMOVE REAR SEAT CUSHION LOCK HOOK
Refer to PROCEDURE - Step 8
- REMOVE REAR DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 14
- DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH
- Disconnect the rear door opening trim weatherstrip LH.
- REMOVE REAR UNDER SIDE COVER LH
Refer to PROCEDURE - Step 31
- REMOVE REAR SEATBACK HINGE SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 32
- REMOVE REAR SEAT SIDE GARNISH LH
Refer to PROCEDURE - Step 33
- REMOVE ROPE HOOK (w/o Garage Door Opener System)
Refer to PROCEDURE - Step 34
- REMOVE NO. 2 ROPE HOOK (w/o Garage Door Opener System)
Refer to PROCEDURE - Step 35
- REMOVE NO. 1 TONNEAU COVER HOLDER CAP (w/ Garage Door Opener System)
Refer to PROCEDURE - Step 36
- REMOVE TONNEAU COVER HOOK A (w/ Garage Door Opener System)
Refer to PROCEDURE - Step 37
- REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
Refer to PROCEDURE - Step 38
- REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
Refer to PROCEDURE - Step 39
- REMOVE BACK DOOR NO. 1 WIRE
- Disengage the 8 claws to separate the 2 grommets.NOTE:
When reusing the back door No. 1 wire, make sure to replace the 2 No. 4 wiring harness protectors with new ones as reusing them may cause water ingress.
- Remove the 3 clips.
- Disconnect the 2 connectors.
- Disengage the 2 clamps.

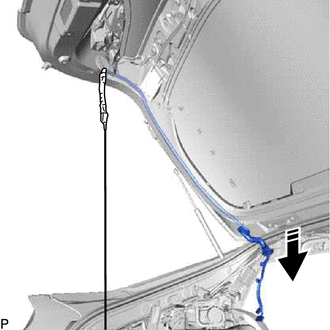

- Pull the back door No. 1 wire as shown in the illustration.
- Disconnect the 2 connectors.
- Secure a rope to the back door No. 1 wire with vinyl tape as shown in the illustration.

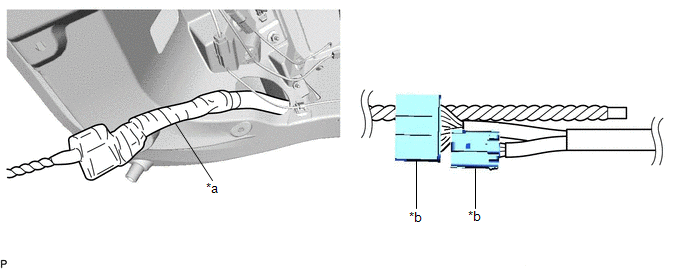

*a Vinyl tape *b Connector NOTE:Make sure that the rope is secured with vinyl tape to prevent the rope from separating from the back door No. 1 wire when removing it.

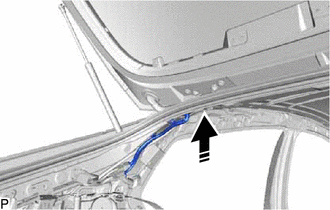

- Remove the back door No. 1 wire as shown in the illustration.
Remove in this Direction NOTE:- The rope will be used when installing the back door No. 1 wire. Leave the rope inside the back door panel sub-assembly.
- This step should not be performed with the back door panel sub-assembly removed from the vehicle.
HINT:
The back door No. 1 wire is likely to be caught on the parts of the back door panel sub-assembly. If the back door No. 1 wire is caught, gradually remove it by moving it back and forth, or by turning it.
- When reusing the back door No. 1 wire:
HINT:
Use the same procedure for both No. 4 wiring harness protectors.
- Disengage the 8 claws to separate the 2 grommets.
- REMOVE BACK DOOR NO. 2 WIRE
