Removal [09/2016 - ]: Procedure

  1. REMOVE DOOR PULL HANDLE

    Refer to PROCEDURE - Step 2 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 2 [05/2019 - 07/2020] , or refer to PROCEDURE - Step 4 [07/2020 - ]

  2. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    Refer to PROCEDURE - Step 3 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 3 [05/2019 - 07/2020] , or refer to PROCEDURE - Step 5 [07/2020 - ]

  3. REMOVE REAR TELEVISION CAMERA ASSEMBLY

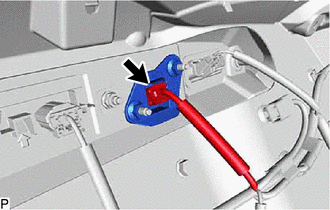

    1. Disconnect the connector.
      GTY696409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

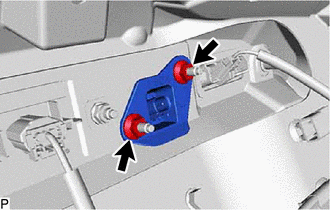

    2. Remove the 2 nuts.
      GTY696410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

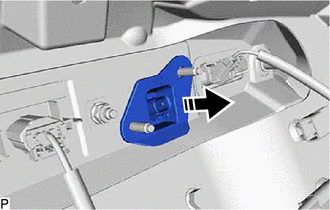

    3. Remove the rear television camera assembly as shown in the illustration.
      GTY736175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
